GB/T897 Stainless Steel Double End Studs-bm=1d produce and supply
The Stainless steel stud bolts used When the main body is large equipment,accessories such as sight glasses,
mechanical seal seat studs,reduction racks,etc need to be installed.At this time,a stud bolt is used,one end is screwed into the main body,and the other end is equipped with a nut after the accessory is installed.Since the accessory is often disassembled, the thread will be worn or damaged, and it is very convenient to use the stud bolt to replace.

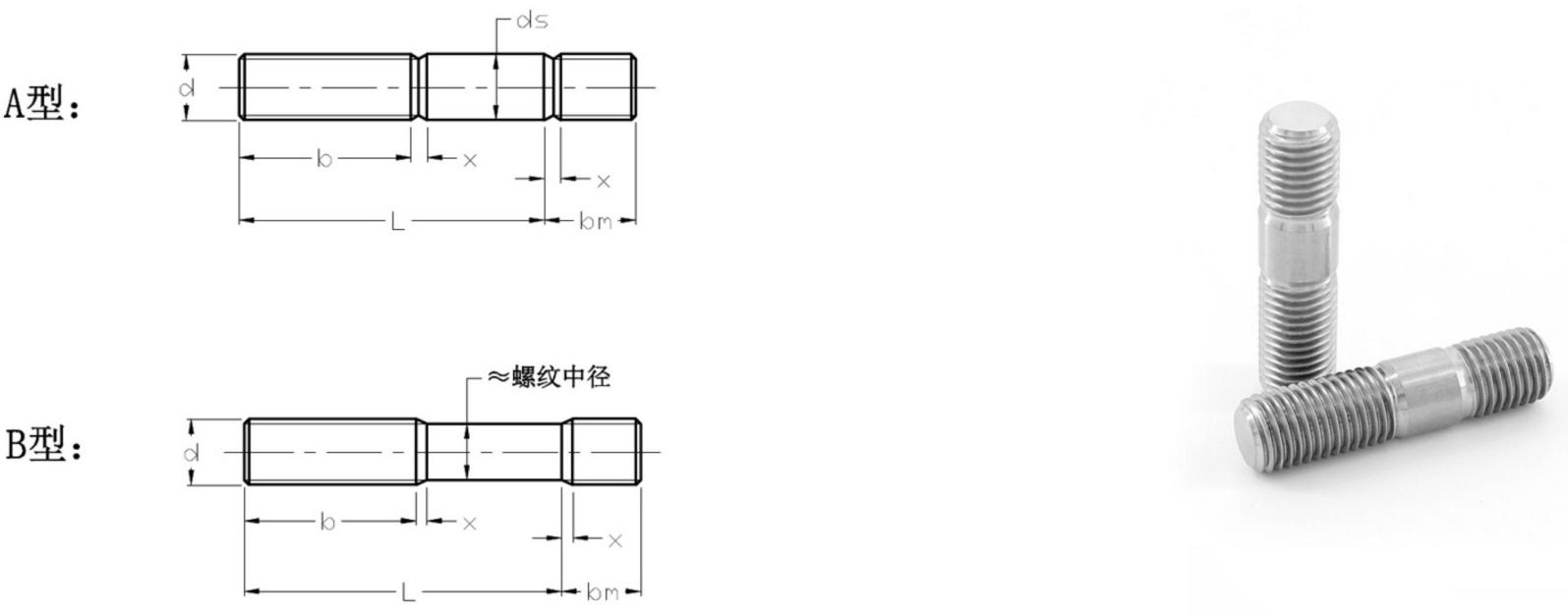

GB/T897 Stainless Steel Double End Studs-bm=1d drawing and detail as below:
d | M5 | M6 | M8 | M10 | M12 | （M14） | M16 | （M18） | M20 | |
P | pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 |
bm | DK | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
min | 4.4 | 5.4 | 7.25 | 9.25 | 11.1 | 13.1 | 15.1 | 17.1 | 18.95 | |
max | 5.6 | 6.6 | 8.75 | 10.75 | 12.9 | 14.9 | 16.9 | 18.9 | 21.05 | |
ds | max | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
min | 4.7 | 5.7 | 7.64 | 9.64 | 11.57 | 13.57 | 15.57 | 17.57 | 19.48 | |
x | max | 1.2 | 1.5 | 1.875 | 2.25 | 2.625 | 3 | 3 | 3.75 | 3.75 |
Thousand pieces of steel weight ≈kg | - | - | - | - | - | - | - | - | - | |
Length of thread（b） | - | - | - | - | - | - | - | - | - |
d | （M22） | （M24） | （M27） | （M30） | （M33） | M36 | （M39） | M42 | M48 | |
P | pitch | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 5 |
bm | DK | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 48 |
min | 20.95 | 22.95 | 25.95 | 28.95 | 31.75 | 34.75 | 37.75 | 40.75 | 46.75 | |
max | 23.05 | 25.05 | 28.05 | 31.05 | 34.25 | 37.25 | 40.25 | 43.25 | 49.25 | |
ds | max | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 48 |
min | 21.48 | 23.48 | 26.48 | 29.48 | 32.38 | 35.38 | 38.38 | 41.38 | 47.38 | |
x | max | 3.75 | 4.5 | 4.5 | 5.25 | 525 | 6 | 6 | 6.75 | 7.5 |
Thousand pieces of steel weight ≈kg | - | - | - | - | - | - | - | - | - |
Welcome contact us for GB/T897 Stainless Steel Double End Studs-bm=1d bolts inquiry and order,we also produce and supply stainless steel hex bolts and nuts,ss washers and titanium stud bolts,just mail us info@topqualityalloy.com with necessary information for ss stud bolts and nuts inquiry
