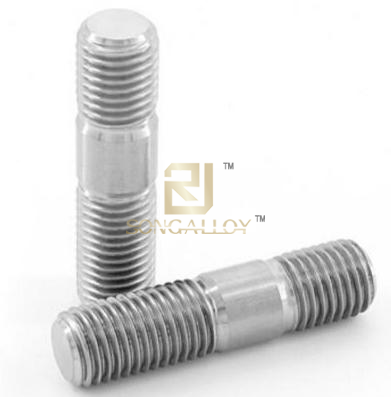

GB/T897 Double End Studs-bm=1d is one type of the Titanium stud bolts.
When the main body is large equipment,accessories such as sight glasses,mechanical seal seat studs,reduction racks,etc need to be installed.At this time,a stud bolt is used,one end is screwed into the main body,and the other end is equipped with a nut after the accessory is installed.Since the accessory is often disassembled, the thread will be worn or damaged, and it is very convenient to use the stud bolt to replace.
Our GB/T897 Double End Studs-bm=1d titanium bolts and titanium alloy bolts details as below,together supply titanium nuts as a set,also for the titanium washers.
Usually one set of Titanium stud bolts need 2 pcs titanium nuts,or 4 pcs titanium nuts,also for the titanium washers.Details GB897 titanium bolts sizes as below:
d | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | (M18) | M20 | |
P | Pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 |
bm | DK | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
min | 4.4 | 5.4 | 7.25 | 9.25 | 11.1 | 13.1 | 15.1 | 17.1 | 18.95 | |
max | 5.6 | 6.6 | 8.75 | 10.75 | 12.9 | 14.9 | 16.9 | 18.9 | 21.05 | |
ds | max | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
min | 4.7 | 5.7 | 7.64 | 9.64 | 11.57 | 13.57 | 15.57 | 17.57 | 19.48 | |
x | max | 1.2 | 1.5 | 1.875 | 2.25 | 2.625 | 3 | 3 | 3.75 | 3.75 |
Thousand pieces of steel weight≈kg | - | - | - | - | - | - | - | - | - | |
b | - | - | - | - | - | - | - | - | - |
d | (M22) | (M24) | (M27) | (M30) | (M33) | M36 | (M39) | M42 | M48 | |
P | Pitch | 2.5 | 3 | 3 | 3.5 | 3.5 | 4 | 4 | 4.5 | 5 |
bm | DK | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 48 |
min | 20.95 | 22.95 | 25.95 | 28.95 | 31.75 | 34.75 | 37.75 | 40.75 | 46.75 | |
max | 23.05 | 25.05 | 28.05 | 31.05 | 34.25 | 37.25 | 40.25 | 43.25 | 49.25 | |
ds | max | 22 | 24 | 27 | 30 | 33 | 36 | 39 | 42 | 48 |
min | 21.48 | 23.48 | 26.48 | 29.48 | 32.38 | 35.38 | 38.38 | 41.38 | 47.38 | |
x | max | 3.75 | 4.5 | 4.5 | 5.25 | 525 | 6 | 6 | 6.75 | 7.5 |
Thousand pieces of steel weight≈kg | - | - | - | - | - | - | - | - | - |
Welcome contact us for Titanium GB/T897 Double End Studs-bm=1d,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and order.Here will supply you one stop service of Titanium bolts and nuts, titanium alloy fasteners and cnc titanium parts.
