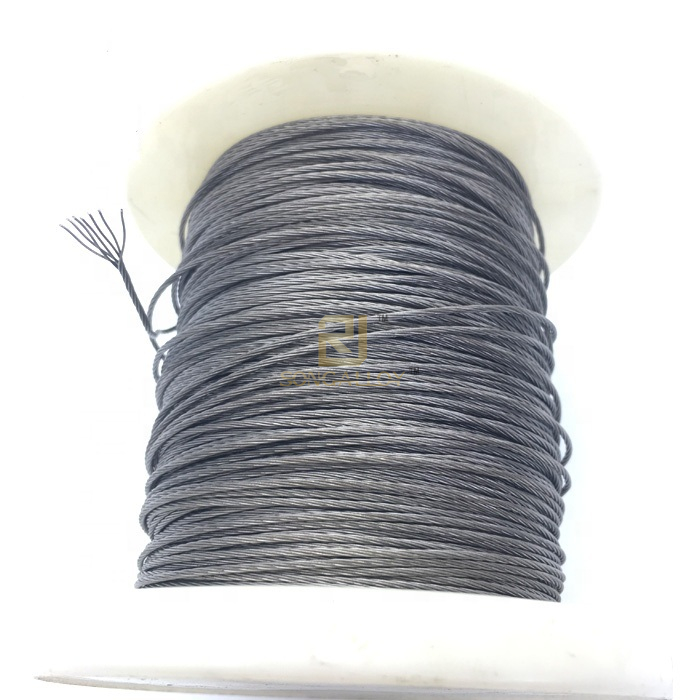

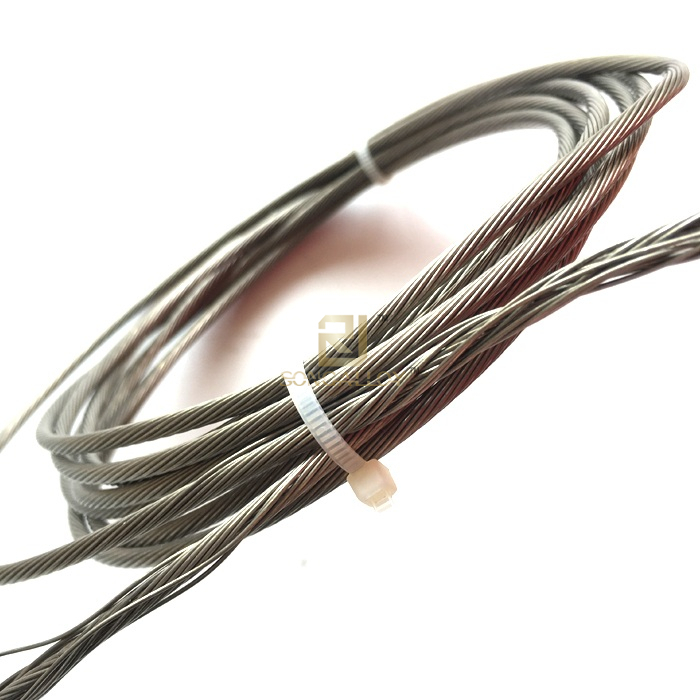

Titanium wire rope supply OEM,titanium wire and titanium alloy wires supply good price good quality

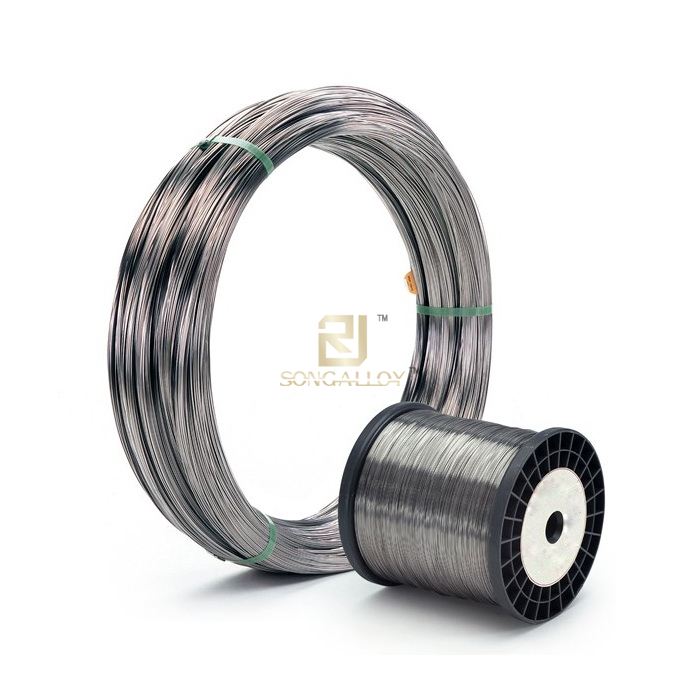

Titanium wire and Titanium wire ropes Titanium alloy wire cables detailed
| Titanium and titanium alloy wire sizes | dia0.1-8mm |
| Titanium wire and titanium alloy wire grade | Gr1,gr2,gr3,gr4,gr5,gr7,gr9,gr12 |
| Titanium wire ropes sizes | Dia0.5-120mm |
| Construction of titanium wire rope | 7x7,7x19,1x19,1x7 etc |
| Titanium wire rope package | wooden box |
| Ti wire rope MOQ | negotiable |
Permissible Variations in Size for Titanium Wire and Titanium alloy wires
Specified Diameter,in. (dimension if shape wire) | Variation,in. | |
| Wire as Coil or on Spools | Cut Straight Lengths | |
| 0.020 to 0.045,incl | ±0.001 | ±0.0015 |
| over 0.045 to 0.062,incl | ±0.0015 | ±0.002 |
| over 0.062 to 0.060,incl | ±0.002 | ±0.0025 |
| over 0.090 to 0.187,incl | ±0.003 | ±0.003 |
| over 0.187 to 0.250 | ±0.004 | ±0.004 |
Chemical requirements of titanium wire and titanium wire rope
| Grade | N | C | H | Fe | O | Al | V | Pa | Mo | Ni | Ti |
| Gr1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / | bal |
| Gr2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / | bal |
| Gr3 | 0.05 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | / | / | bal |
| Gr 4 | 0.05 | 0.08 | 0.015 | 0.50 | 0.40 | / | / | / | / | / | bal |
| Gr 5 | 0.05 | 0.08 | 0.015 | 0.40 | 0.20 | 5.5~6.75 | 3.5~4.5 | / | / | / | bal |
| Gr 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12~0.25 | / | / | bal |
| Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5~3.5 | 2.0~3.0 | / | / | / | bal |
| Gr12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2~0.4 | 0.6~0.9 | bal |
Welcome contact us for one stop service in wire ropes,Just mail to info@topqualityalloy.com for titanium wire and titanium wire rope inquiry and orders
