OD6-1200MM
Ruiyang
810890

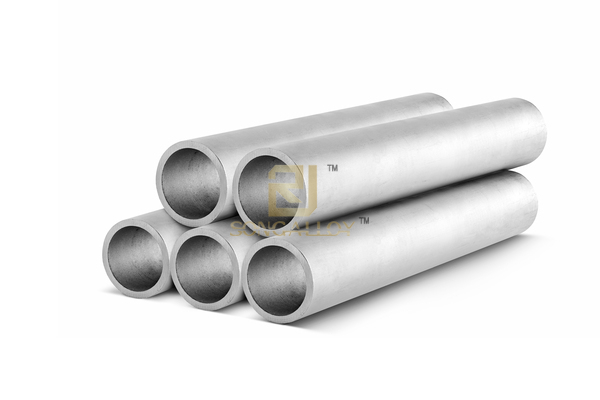

Titanium tube large or small sizes titanium tube,titanium seamless pipe,titanium welded tube supply,one stop service in titanium tube and titanium alloy tube.Titanium Welded Tubes are economy with the seamless titanium tubes.
Our Titanium Welded Tubes supply detailed as below with table
| Executive Standard for titanium tube | GB/T3625，ASTM B338, ASTM B862 |
| Titanium tube Material: | TA1, TA2, Gr1, Gr2,Gr5,Gr10 and others |
| Welding Titanium tube Specification: | Outside diameter: 6mm-1200mm, Wall thickness: 0.35mm-20mm, |
| Weled titanium tube Length: | According to customers' requirements. |
| Tolerance of titanium welding tube | As per standard requirements, or according to customers' tech requirements. |
Titanium welded tubes Heat treatment: | In-line bright annealing |
| Welding titanium pipe Surface | bright or acid washing |
| Advantages of our ti tubes | Well-proportioned wall thickness and high precision wall thickness,right sizes control and good quality |
| Application: | Power Plant Condenser, Sea Water Desalinization, Petroleum, Chemicals, Medical Appliance, Ship Building, Papermaking, Food Processing, Fluid Transportation Piping, Automobile Exhaust Pipe and so on. |
| OEM service in welding titanium tube | according to special requirements,such as wall thickness tolerance,hardness,surface requirements and others |
Titanium chemical components widely used in titanium welded tubes as below:
| Grade | C | N | H | O | Fe | Al | V | Pd | Mo | Ni |
| Gr1 | 0.08 | 0.03 | 0.015 | 0.18 | 0.20 | / | / | / | / | / |
| Gr2 | 0.08 | 0.03 | 0.015 | 0.25 | 0.30 | / | / | / | / | / |
| Gr3 | 0.08 | 0.05 | 0.015 | 0.35 | 0.3 | / | / | / | / | / |
| Gr4 | 0.08 | 0.05 | 0.015 | 0.40 | 0.50 | / | / | / | / | / |
| Gr5 | 0.08 | 0.05 | 0.015 | 0.20 | 0.40 | 5.5-6.75 | 3.5-4.5 | / | / | / |
Features of welded Titanium tubes:
1)characters such as Safety, health, environmental protection,made by titanium strips and titanium sheet,ti plate
2)the resistant to corrosion excellent
3)Light weight, thickness and out diameter so variously
4)easy cutting, huge deformation&heat-resistance
5)tensile strengthen and good be flexible etc
Top quality Titanium and titanium alloy pipes,seamless or welded titanium tube we supply,together with titanium flanges and titanium elbows,titanium tee,titanium reducer,titanium stub end,titanium caps and titanium sheets,titanium plate,titanium fasteners supply.Welcome to contact us for titanium tube and titanium and titanium alloy pipe tube inquiry,just mail us info@topqualityalloy.com
