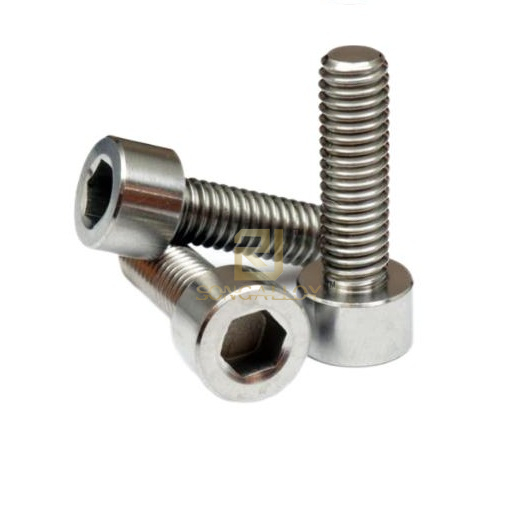

Titanium Socket Head Cap Screws ISO 4762 produce and supply one stop service Here.

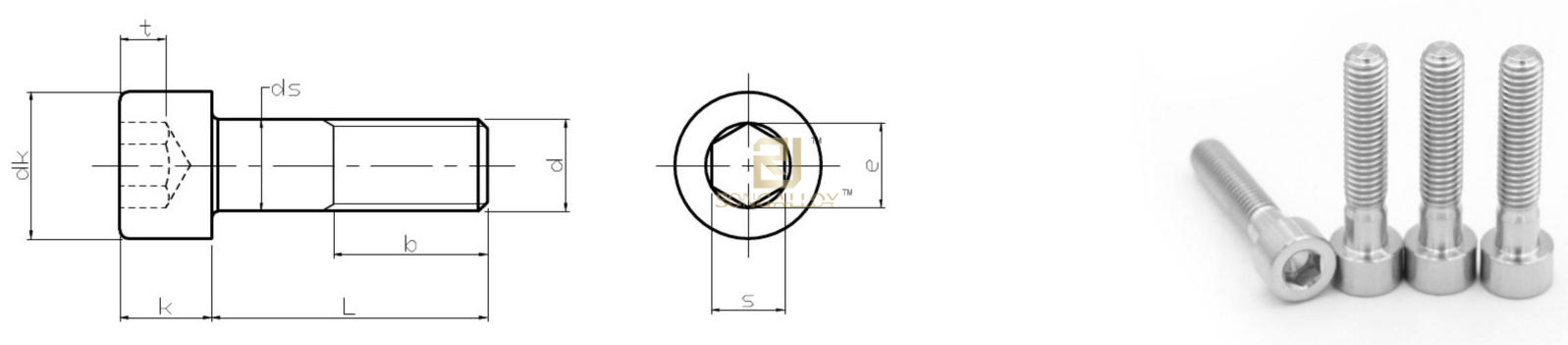

Titanium Socket Head Cap Screws ISO 4762 sizes M1.6-M64 Metric sizes in mm and drawings details as below:
d | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | |||||
p | pitch | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | ||||
b | Pitch length | 15 | 16 | 17 | 18 | 20 | 22 | 24 | 28 | 32 | 36 | ||||
dk | max | round | 3 | 3.8 | 4.5 | 5.5 | 7 | 8.5 | 10 | 13 | 16 | 18 | |||
Knurled head | 3.14 | 3.98 | 4.68 | 5.68 | 7.22 | 8.72 | 10.22 | 13.27 | 16.27 | 18.27 | |||||
min | 2.86 | 3.62 | 4.32 | 5.32 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | 17.73 | |||||
da | max | 2 | 2.6 | 3.1 | 3.6 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | ||||
ds | max | 1.6 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 | 6.0 | 8.0 | 10.0 | 12.0 | ||||
min | 1.46 | 1.86 | 2.36 | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | |||||
e | min | 1.733 | 1.733 | 2.303 | 2.873 | 3.443 | 4.583 | 5.723 | 6.863 | 9.149 | 11.429 | ||||
k | max | 1.6 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | ||||
min | 1.46 | 1.86 | 2.36 | 2.86 | 3.82 | 4.82 | 5.7 | 7.64 | 9.64 | 11.57 | |||||
s | max | 1.58 | 1.58 | 2.08 | 2.58 | 3.08 | 4.095 | 5.14 | 6.14 | 8.175 | 10.175 | ||||
min | 1.52 | 1.52 | 2.02 | 2.52 | 3.02 | 4.02 | 5.02 | 6.02 | 8.025 | 10.025 | |||||
t | min | 0.7 | 1 | 1.1 | 1.3 | 2 | 2.5 | 3 | 4 | 5 | 6 | ||||
w | min | 0.55 | 0.55 | 0.85 | 1.15 | 1.4 | 1.9 | 2.3 | 3.3 | 4 | 4.8 | ||||
d | (M14) | M16 | M20 | M24 | M30 | M36 | M42 | M48 | M56 | M64 | |||||
p | pitch | 2 | 2 | 2.5 | 3 | 3.5 | 4 | 4.5 | 5 | 5.5 | 6 | ||||
b | pitch length | 40 | 44 | 52 | 60 | 72 | 84 | 96 | 108 | 124 | 140 | ||||
dk | max | round head | 21 | 24 | 30 | 36 | 45 | 54 | 63 | 72 | 84 | 96 | |||
Knurled head | 21.33 | 24.33 | 30.33 | 36.39 | 45.39 | 54.46 | 63.46 | 72.46 | 84.54 | 96.54 | |||||
min | 20.67 | 23.67 | 29.67 | 35.61 | 44.61 | 53.54 | 62.54 | 71.54 | 83.46 | 95.46 | |||||
da | max | 15.7 | 17.7 | 22.4 | 26.4 | 33.4 | 39.4 | 45.6 | 52.6 | 63 | 71 | ||||
ds | max | 14.0 | 16.0 | 20.0 | 24.0 | 30.0 | 36.0 | 42.0 | 48.0 | 56.0 | 64.0 | ||||
min | 13.73 | 15.73 | 19.67 | 23.67 | 29.67 | 35.61 | 41.61 | 47.61 | 55.54 | 63.54 | |||||
e | min | 13.716 | 15.996 | 19.437 | 21.734 | 25.154 | 30.854 | 36.571 | 41.131 | 46.831 | 52.531 | ||||
k | max | 14 | 16 | 20 | 24 | 30 | 36 | 42 | 48 | 56 | 64 | ||||
min | 13.57 | 15.57 | 19.48 | 23.48 | 29.48 | 35.38 | 41.38 | 47.38 | 55.26 | 63.26 | |||||
s | max | 12.212 | 14.212 | 17.23 | 19.275 | 22.275 | 27.275 | 32.33 | 36.33 | 41.33 | 46.33 | ||||
min | 12.032 | 14.032 | 17.05 | 19.065 | 22.065 | 27.065 | 32.08 | 36.08 | 41.08 | 46.08 | |||||
t | min | 7 | 8 | 10 | 12 | 15.5 | 19 | 24 | 28 | 34 | 38 | ||||
w | min | 5.8 | 6.8 | 8.6 | 10.4 | 13.1 | 15.3 | 163 | 17.5 | 19 | 22 |
ISO4762 could be made by cnc lathes or cold heading,various sizes and quality supply according to your choice.This type of round head inside hex titanium screws widely used in industrial and daily life,also stainless steel screws DIN912 and IS04762 allen key drive screws.
When you buy Titanium Socket Head Cap Screws ISO 4762,please contact us for inquiry and order.
