M8-M24
RuiYang
810890

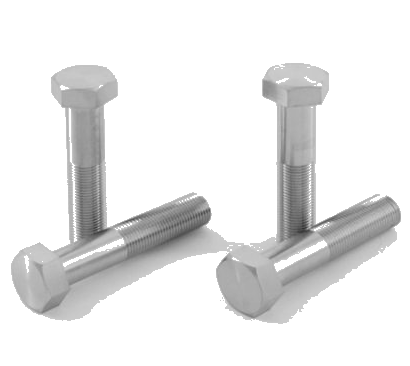

Titanium Hexagon Head Bolts with Fine Pitch Thread GB5785 are often used in machinery,mainly because they are easy to fasten,disassemble,and not easy to slip.
With professional factory best to guarantee the GB5785 fine thread titanium hex bolts quality and lead time,we are an audited supplier by SGS,BV,free to buy Titanium bolts and nuts from us.
We will supply you one stop service in Titanium products,not only for titanium fasteners,also Titanium rod,titanium pipe and flange,pipe fittings,Ti wire rope,Ti Shackles etc.
GB5785 Titanium Hexagon Head Bolts with Fine Pitch Thread Dimensions and drawings we supply as below:
d | M8 | M10 | （M10） | M12 | （M12） | （M14） | M16 | （M18） | M20 | （M20） | （M22） | M24 | ||
p | pitch | 1 | 1 | 1.25 | 1.5 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 1.5 | 2 | |
b | L≤125 | 22 | 26 | 26 | 30 | 30 | 34 | 38 | 42 | 46 | 46 | 50 | 54 | |
125＜L≤200 | 28 | 32 | 32 | 36 | 36 | 40 | 44 | 48 | 52 | 52 | 56 | 60 | ||
L＞200 | 41 | 45 | 45 | 49 | 49 | 57 | 57 | 61 | 65 | 65 | 69 | 73 | ||
c | max | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
min | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | ||
da | max | 9.2 | 11.2 | 11.2 | 13.7 | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 | 22.4 | 24.4 | 26.4 | |
ds | max | 8.00 | 10.00 | 10.00 | 12.00 | 12.00 | 14.00 | 16.00 | 18.00 | 20.00 | 20.00 | 22.00 | 24.00 | |
A | min | 7.78 | 9.78 | 9.78 | 11.73 | 11.73 | 13.73 | 15.73 | 17.73 | 19.67 | 19.67 | 21.67 | 23.67 | |
B | min | 7.64 | 9.64 | 9.64 | 11.57 | 11.57 | 13.54 | 15.57 | 17.57 | 19.48 | 19.48 | 21.48 | 23.48 | |
dw | A | min | 11.63 | 14.63 | 14.63 | 16.63 | 16.63 | 19.64 | 22.49 | 25.34 | 28.19 | 28.19 | 31.17 | 33.61 |
B | min | 11.47 | 14.47 | 14.47 | 16.47 | 16.47 | 19.15 | 22 | 24.85 | 27.7 | 27.7 | 31.35 | 33.25 | |
e | A | min | 14.38 | 17.77 | 17.77 | 20.03 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 | 3.53 | 37.72 | 39.98 |
B | min | 14.20 | 17.59 | 17.59 | 19.85 | 19.85 | 22.78 | 26.17 | 29.56 | 32.95 | 32.95 | 37.29 | 39.55 | |
L1 | max | 2 | 2 | 2 | 3 | 3 | 3 | 3 | 3 | 4 | 4 | 4 | 4 | |
k | DN | 5.3 | 6.4 | 6.4 | 7.5 | 7.5 | 8.8 | 10.0 | 11.5 | 12.5 | 12.5 | 14.0 | 15.0 | |
A | max | 5.45 | 6.58 | 6.58 | 7.68 | 7.68 | 8.98 | 10.18 | 11.715 | 12.715 | 12.715 | 14.215 | 15.215 | |
min | 5.15 | 6.22 | 6.22 | 7.32 | 7.32 | 8.62 | 9.82 | 11.285 | 12.285 | 12.285 | 13.785 | 14.785 | ||
B | max | 5.54 | 6.69 | 6.69 | 7.79 | 7.79 | 9.09 | 10.29 | 11.85 | 12.85 | 12.85 | 14.35 | 15.35 | |
min | 5.06 | 6.11 | 6.11 | 7.21 | 7.21 | 8.51 | 9.71 | 11.15 | 12.15 | 12.15 | 13.65 | 14.65 | ||
K1 | A | min | 3.61 | 4.35 | 4.35 | 5.12 | 5.12 | 6.03 | 6.87 | 7.9 | 8.6 | 8.6 | 9.65 | 10.35 |
B | min | 3.54 | 4.28 | 4.28 | 5.05 | 5.05 | 5.96 | 6.8 | 7.81 | 8.51 | 8.51 | 9.56 | 10.26 | |
r | min | 0.4 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 0.8 | |
s | max | 13.00 | 16.00 | 16.00 | 18.00 | 18.00 | 21.00 | 24.00 | 27.00 | 30.00 | 30.00 | 34.00 | 36.00 | |
A | min | 12.73 | 15.73 | 15.73 | 17.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 29.67 | 33.38 | 35.38 | |
B | min | 12.57 | 15.57 | 15.57 | 17.57 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | 29.16 | 33.00 | 35.00 | |
Welcome contact us for Titanium Hexagon Head Bolts with Fine Pitch Thread GB5785 inquiry and order.Ruiyang company could supply you one stop service in titanium fasteners,titanium bolts and nuts products,also stainless steel fasteners for your easier import from us.Just mail to info@topqualityalloy.com for our cooperation.
