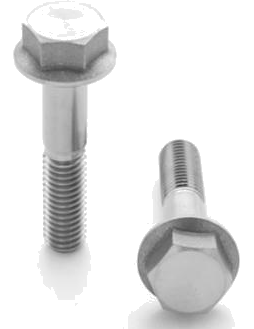

Titanium Hexagon Flange Bolts GB5787 have the characteristics of accurate decoration and strong endurance, and are widely used. They are widely used in highway and railway bridges, including industrial and civil buildings, cranes, excavators and other heavy machinery.

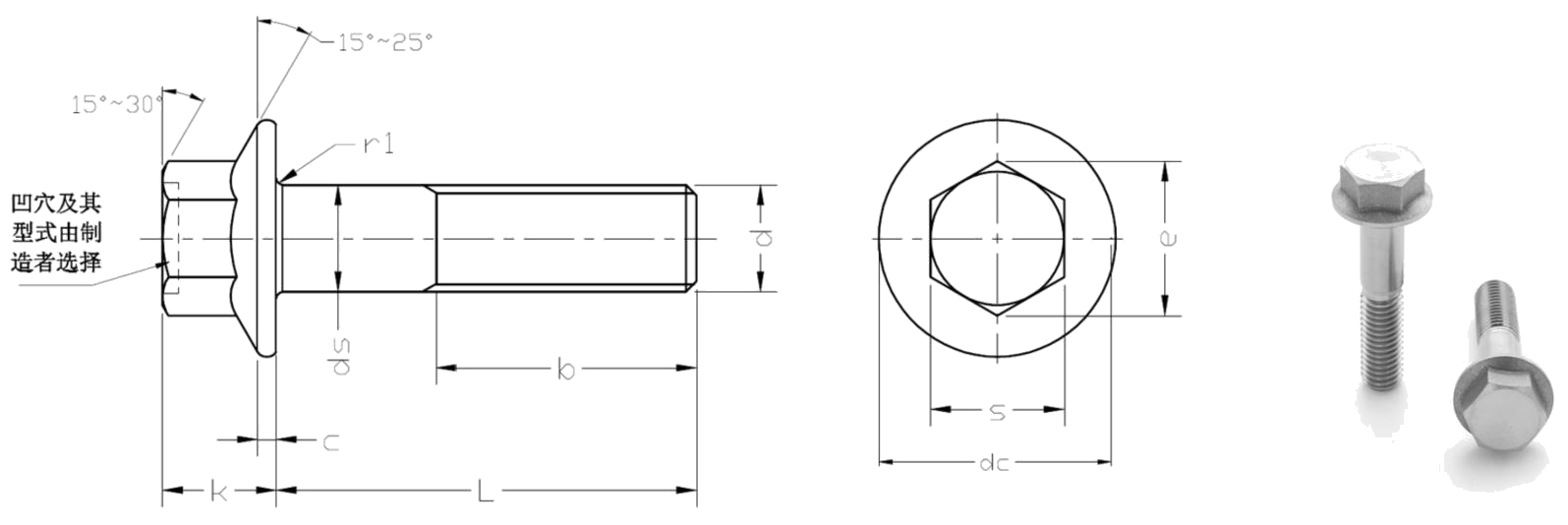

Titanium Hexagon Flange Bolts GB5787 Ti bolts sizes and drawings details as below:
d | M5 | M6 | M8 | M10 | M12 | （M14） | M16 | ||
P | pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | |
b | L≤125 | 16 | 18 | 22 | 26 | 30 | 34 | 38 | |
125＜L≤200 | - | - | 28 | 32 | 36 | 40 | 44 | ||
L＞200 | - | - | - | - | - | 53 | 57 | ||
c | min | 1 | 1.1 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | |
da | A | max | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 |
B | max | 6.2 | 7.4 | 10 | 12.6 | 15.2 | 17.7 | 20.7 | |
dc | max | 11.4 | 13.6 | 17 | 20.8 | 24.7 | 28.6 | 32.8 | |
ds | max | 5 | 6 | 8 | 10 | 12 | 14 | 16 | |
min | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | ||
du | max | 5.5 | 6.6 | 9 | 11 | 13.5 | 15.5 | 17.5 | |
dw | min | 9.4 | 11.6 | 14.9 | 18.7 | 22.6 | 26.4 | 30.6 | |
e | min | 7.44 | 8.56 | 10.8 | 14.08 | 16.32 | 19.68 | 22.94 | |
f | max | 1.4 | 2 | 2 | 2 | 3 | 3 | 3 | |
k | max | 5.6 | 6.8 | 8.5 | 9.7 | 11.9 | 12.9 | 15.1 | |
K1 | min | 2.3 | 2.9 | 3.8 | 4.3 | 5.4 | 5.6 | 6.7 | |
r1 | min | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | |
r2 | max | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.9 | 1 | |
r3 | min | 0.1 | 0.1 | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | |
r4 | refer | 3 | 3.4 | 4.3 | 4.3 | 6.4 | 6.4 | 6.4 | |
s | max | 7 | 8 | 10 | 13 | 15 | 18 | 21 | |
min | 6.64 | 7.64 | 9.64 | 12.57 | 14.57 | 17.57 | 20.48 | ||
t | max | 0.15 | 0.2 | 0.25 | 0.3 | 0.35 | 0.45 | 0.5 | |
min | 0.05 | 0.05 | 0.1 | 0.15 | 0.15 | 0.2 | 0.25 | ||
Where to buy Titanium Hexagon Flange Bolts GB5787?just mail us info@topqualityalloy.comWith professional factory best to guarantee the quality and lead time,More we are an Audited supplier by SGS,BV,free to buy Titanium bolts and nuts from us.We will supply you one stop service in Titanium products,not only for titanium fasteners,also Titanium rod,titanium pipe and flange,pipe fittings,Ti wire rope,Ti Shackles and stainless steel flange bolts also.
