OD4-508MM
Ruiyang
8108904090
Titanium Gr 12 is alloyed with good quality chemical ingredient molybdenum. The Gr 12 offers exceptional heat resistance and resistance to oxidizing circumstances as correlated with the other titanium grades. Furthermore, the grade can be cold and hot formed by using various forming methods that constitute the press brake forming and drop hammer method forming. Alloy exposes high corrosion resistance, excellent oxidation resistance, pitting resistance, resistance to acid and preferred strength. Due to these properties, the alloy has been used in shell exchangers and the chemical manufacturing industry.

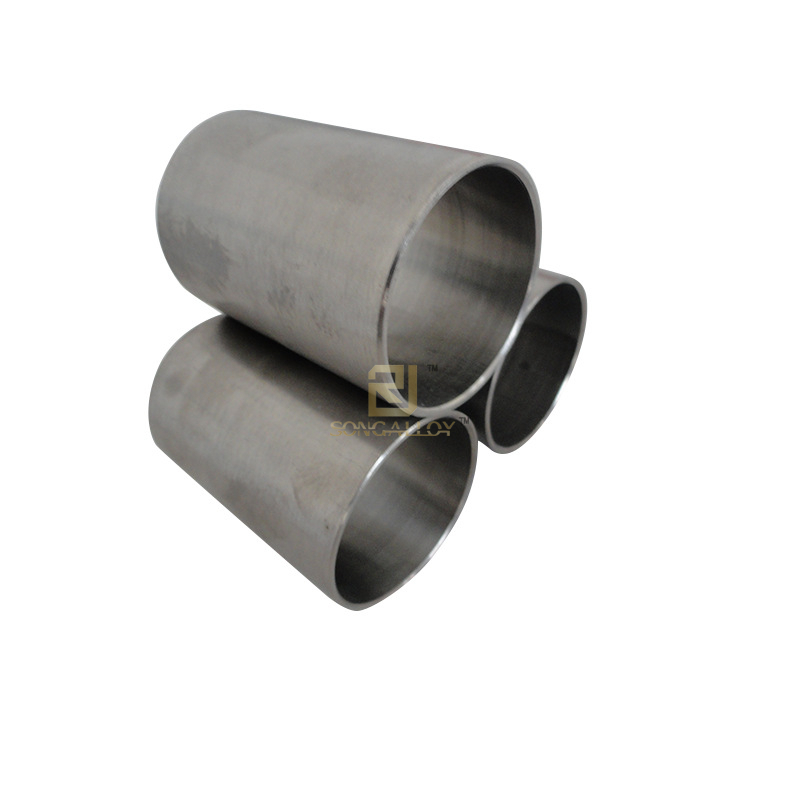

| Titanium pipe material | GR12 |
| Titanium Grade 12 Pipes sizes | OD4-508MM,Wall thickness0.3-25mm |
| Manufacturing standard | ASME B338,B861 |
| Process | rolled |
| Length | customed,max 15m each length,could cutting to length |
| Finish | acid washing or polished |
| MOQ | 200kgs each size |
| Titanium Gr 12 Pipes characteristics | excellent general corrosion resistance, pitting resistance to chloride environment, good strength, excellent ductility and ease to weldability and strength |
Titanium Gr 12 Pipes Equivalent Grades
| STANDARD | UNS | WERKSTOFF NR. | ||||||
| Titanium Gr 12 | R53400 | 3.7105 | ||||||
| Titanium alloy Gr 12 Pipes Chemical Composition | ||||||||
| C | Fe | N | Mo | H | O | Ni | Ti | Others |
| 0.08 | 0.3 | 0.03 | 0.2/0.4 | 0.015 | 0.25 | 0.6/0.9 | bal | |
Titanium Gr 12 Pipes Mechanical & Physical Properties
| Element | Titanium Alloy Gr 12 |
| Density | 0.163 lb/in3 |
| Melting Point | 1660 °C |
| Tensile Strength | Psi – 50000 , MPa – 345 |
| Yield Strength (0.2%Offset) | Psi – 69600 , MPa – 480 |
| Elongation | 18 % |
Titanium Gr 12 Pipe Application:
Food Processing Industry
Fabrication Industry
Oil and Gas Industry
Chemical Industry
Plumbing
General Purpose Applications:Heating,Water Supply Systems,Power Plant,Paper & Pulp Industry
Where to buy Titanium Gr12 seamless pipe,welcome mail to info@topqualityalloy.com for one stop service in tianium and titanium alloy products
