M2-M56
RuiYang
810890

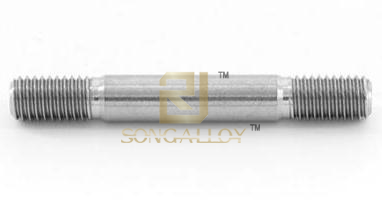

Titanium GB/T901 Double End Studs customed from us.One stip service in supplying fasteners here.
Ti Bolts GB/T901 Double End Studs(Clamping Type)-Product Grade B are cylindrical fasteners with threads at both ends,threads of equal length at both ends,and a polished rod in the middle.When connecting,one end of the equal-length stud must be screwed into the part with the internal threaded hole,and the other end must pass through the part with the through hole,and then screw the nut to make the two parts tightly connected as a whole.
This form of connection is called a stud connection, which is also a detachable connection. It is mainly used for occasions where one of the connected parts is thick, requires a compact structure, or is not suitable for bolt connection due to frequent disassembly.

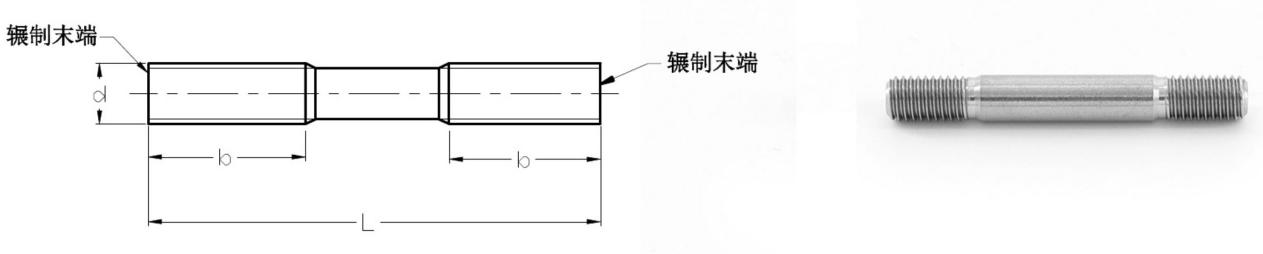

Titanium GB/T901 Double End Studs(Clamping Type)-Product Grade B details sizes and drawings as below:
d | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | |
b | 10 | 11 | 12 | 14 | 16 | 18 | 28 | 32 | |
P(Pitch) | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | |
L | 10~60 | 10~80 | 12~250 | 16~300 | 20~300 | 25~300 | 32~300 | 40~300 | |
GB901 Titanium bolts M12-M27 Metric titanium bolts stud end sizes
d | M12 | M14 | M16 | M18 | M20 | M22 | M24 | M27 | ||
b | 36 | 40 | 44 | 48 | 52 | 56 | 60 | 66 | ||
P (Pitch) | 1.75 | 2 | 2 | 2.5 | 2.5 | 2.5 | 3 | 3 | ||
L | 50~300 | 60~300 | 60~300 | 60~300 | 70~300 | 80~300 | 90~300 | 100~300 | ||
Titanium and titanium alloy bolts M30-M56 GB901 Double end stud bolts sizes details
d | M30 | M33 | M36 | M39 | M42 | M48 | M56 | |
b | 72 | 78 | 84 | 89 | 96 | 108 | 124 | |
P (Pitch) | 3.5 | 3.5 | 4 | 4 | 4.5 | 5 | 5.5 | |
L | 140~400 | 140~400 | 140~500 | 140~500 | 140~500 | 150~500 | 190~500 | |
We are an audited Titanium fasteners supplier by SGS and BV,also supply stainless steel stud ends and related fasteners and screws.specialize in this field for many years with own professional factory could do soonest delivery with good quality and pretty competitive price.
Welcome contact us for Titanium GB/T901 Double End Studs (Clamping Type)-Product Grade B inquiry,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and order.
