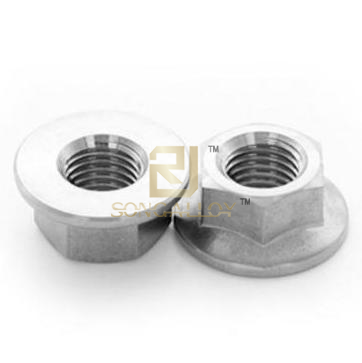

China Titanium GB/T6177.1 Hexagon Flange Nuts-style2 produce and customed.
China GB/T6177.1 Hexagon Flange Nuts-style2 Metric titanium flange nuts widely used in highway and railway bridges,including industrial and civil construction,cranes, excavators and other heavy machinery.Titanium nuts GB6177 can withstand higher preload and has better anti-loosening performance.
We have our professional factory could best to guarantee the GB5785 fine thread titanium hex bolts quality and lead time,we are an audited supplier by SGS,BV,free to buy Titanium bolts and nuts from us all types.

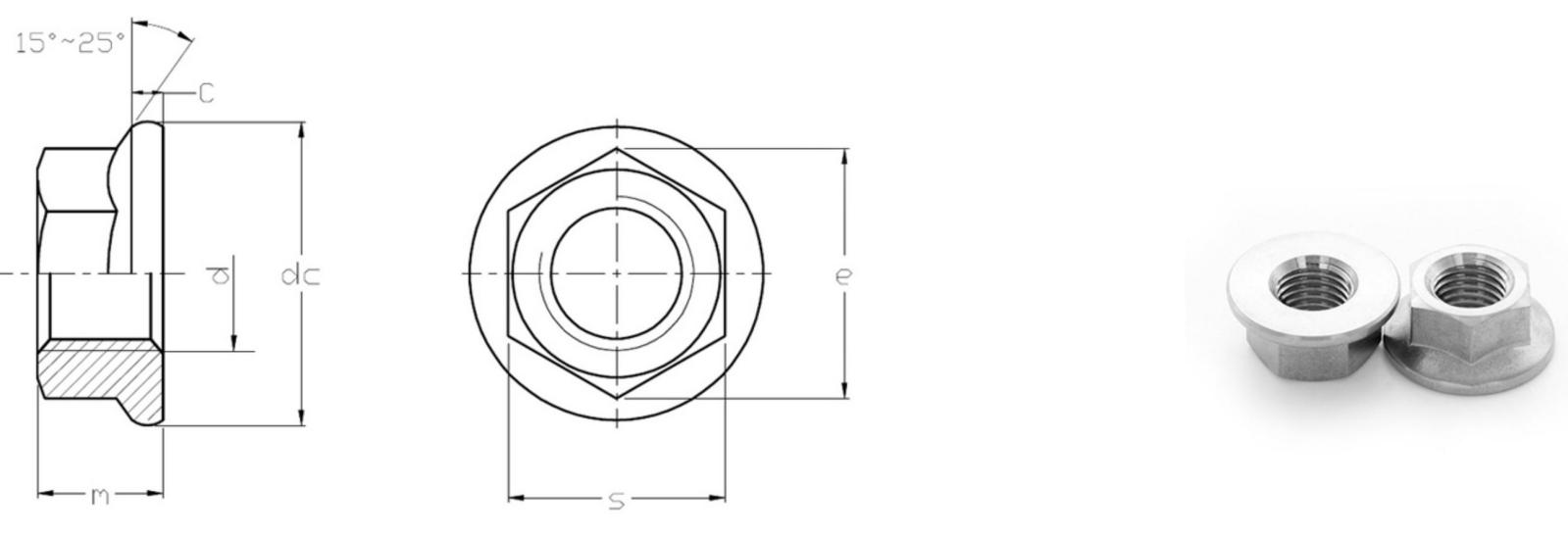

Titanium GB/T6177.1 Hexagon Flange Nuts-style2 Dimensions and drawings as below:
d | M5 | M6 | M8 | M10 | M12 | （M14） | M16 | M20 | |
P | Pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 |
c | min | 1 | 1.1 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3 |
da | min | 5.00 | 6.00 | 8.00 | 10.0 | 12 | 14.0 | 16.0 | 20.0 |
max | 5.75 | 6.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 21.6 | |
dc | max | 11.8 | 14.2 | 17.9 | 21.8 | 26 | 29.9 | 34.5 | 42.8 |
dw | min | 9.8 | 12.2 | 15.8 | 19.6 | 23.8 | 27.6 | 31.9 | 39.9 |
e | min | 8.79 | 11.05 | 14.38 | 16.64 | 20.03 | 23.36 | 26.75 | 32.95 |
m | max | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
min | 4.7 | 5.7 | 7.64 | 9.64 | 11.57 | 13.3 | 15.3 | 18.7 | |
mw | min | 2.5 | 3.1 | 4.6 | 5.6 | 6.8 | 7.7 | 8.9 | 10.7 |
s | max | 8 | 10 | 13 | 15 | 18 | 21 | 24 | 30 |
min | 7.78 | 9.78 | 12.73 | 14.73 | 17.73 | 20.67 | 23.67 | 29.16 | |
r | max | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.9 | 1 | 1.2 |
We will supply you one stop service in Titanium products,not only for titanium fasteners,also Titanium rod,titanium bars,titanium pipe and titanium flange,titaniul elbow and other titanium pipe fittings,Ti wire rope,Ti Shackles etc.
Welcome contact us for Titanium GB/T6177.1 Hexagon Flange Nuts-style2 inquiry and order.One stop service in titanium fasteners,titanium bolts and nuts products,also stainless steel fasteners for your easier import from us.Just mail to info@topqualityalloy.com for our cooperation.
China Titanium GB/T6177.1 Hexagon Flange Nuts-style2 produce and customed.
China GB/T6177.1 Hexagon Flange Nuts-style2 Metric titanium flange nuts widely used in highway and railway bridges,including industrial and civil construction,cranes, excavators and other heavy machinery.Titanium nuts GB6177 can withstand higher preload and has better anti-loosening performance.
We have our professional factory could best to guarantee the GB5785 fine thread titanium hex bolts quality and lead time,we are an audited supplier by SGS,BV,free to buy Titanium bolts and nuts from us all types.
Titanium GB/T6177.1 Hexagon Flange Nuts-style2 Dimensions and drawings as below:
d | M5 | M6 | M8 | M10 | M12 | （M14） | M16 | M20 | |
P | Pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 |
c | min | 1 | 1.1 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3 |
da | min | 5.00 | 6.00 | 8.00 | 10.0 | 12 | 14.0 | 16.0 | 20.0 |
max | 5.75 | 6.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 21.6 | |
dc | max | 11.8 | 14.2 | 17.9 | 21.8 | 26 | 29.9 | 34.5 | 42.8 |
dw | min | 9.8 | 12.2 | 15.8 | 19.6 | 23.8 | 27.6 | 31.9 | 39.9 |
e | min | 8.79 | 11.05 | 14.38 | 16.64 | 20.03 | 23.36 | 26.75 | 32.95 |
m | max | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
min | 4.7 | 5.7 | 7.64 | 9.64 | 11.57 | 13.3 | 15.3 | 18.7 | |
mw | min | 2.5 | 3.1 | 4.6 | 5.6 | 6.8 | 7.7 | 8.9 | 10.7 |
s | max | 8 | 10 | 13 | 15 | 18 | 21 | 24 | 30 |
min | 7.78 | 9.78 | 12.73 | 14.73 | 17.73 | 20.67 | 23.67 | 29.16 | |
r | max | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.9 | 1 | 1.2 |
We will supply you one stop service in Titanium products,not only for titanium fasteners,also Titanium rod,titanium bars,titanium pipe and titanium flange,titaniul elbow and other titanium pipe fittings,Ti wire rope,Ti Shackles etc.
Welcome contact us for Titanium GB/T6177.1 Hexagon Flange Nuts-style2 inquiry and order.One stop service in titanium fasteners,titanium bolts and nuts products,also stainless steel fasteners for your easier import from us.Just mail to info@topqualityalloy.com for our cooperation.
