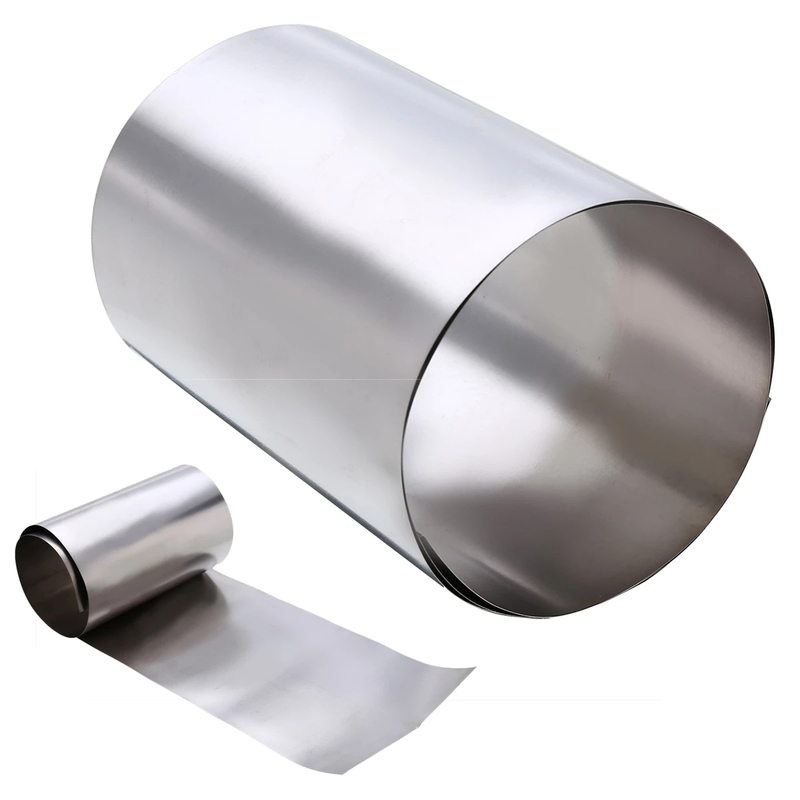

Titanium Foil Sheet

Titanium Foil Sheet supply
Thin titanium sheet supply
Titanium strip supply
Pure Titanium and titanium alloy foil sheet titanium plate supply
Quantity:
  • 0.3-4mm thickness
  • Ruiyang
  • 810890

Titanium Foil Sheet supply mainly pure titanium and titanium alloy

We supply titanium foils detailed as below in table:

Titanium foil sheet nametitanium strip foil
Titanium foil standardASTMB265, AMS4911, GB/T 3621, etc.
Titanium foil thickness0.01-2.0mm
Titanium foil Width
0.7-240mm
Titanium foil sheet Length
according to requirements
Titanium foil Grade
Gr1, Gr2, Gr5, Gr7, Gr9, Gr10, Gr12, Gr23, etc.
ti foil MOQ
10 Kilogram/Kilogrames
Ti foil Delivery time
7 to 15 days after confirmed order
Ti foil Packing
wooden case or on customer's requirements.
Ti foil Features1.high corrosion resistance
2.low density
3.non-ferromagnetic
4.good biocompatibility
Tensile Requirements of titanium and titanium alloy
Grade
Tensile strength(min)
Yield Strength(min)
Elongation(%)
ksi
MPa
ksi
MPa
Gr1
35
240
20
138
24
Gr2
50
345
40
275
20
Gr3
65
450
55
380
18
Gr4
80
550
70
483
15
Gr5
130
895
120
828
10
chemical composition of titanium and titanium alloy
Grade
N
C
H
Fe
O
Ti
Gr1
0.03
0.08
0.015
0.20
0.18
bal
Gr2
0.03
0.05
0.015
0.30
0.25
bal
Gr5
0.05
0.08
0.015
0.4
0.2
Bal

Titanium foil sheet applications:Auto industry,Medical and Sports industry,Papermaking textile industry,Electric power industry,The fertilizer industry,Seawater desalination industry

Welcome contact us for titanium foil sheets inquiry and order,we could supply you oem serice such as titanium mesh sheet,perforated titanium sheet,titanium strips,titanium sheet and titanium plate,etc
