M1.6-M10
RuiYang
810890

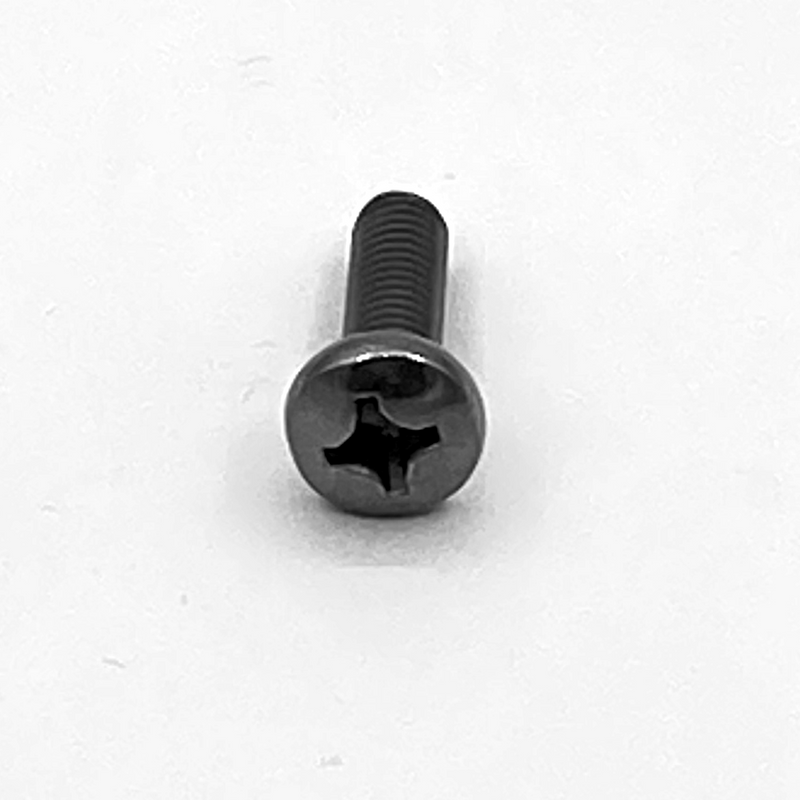

GB/T 818 Titanium screws is one of the Titanium Cross Recessed Pan Head Screws,they mainly used in railway and highway bridges,boiler steel structures,industrial plants,high-rise civil buildings,tower and mast structures,hoisting machinery and their steel structures where friction-type high-strength pan head combination screws are required，generally used in occasions with large force, the pan head is more conducive to fixing, and the assembly is more convenient.
GB/T 818 Titanium screws dimensions of Cross Recessed Pan Head Screws as below:
d | M1.6 | M2 | M2.5 | M3 | （M3.5） | M4 | M5 | M6 | M8 | M10 | |
p | pitch | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
b | min | 25 | 25 | 25 | 25 | 38 | 38 | 38 | 38 | 38 | 38 |
dk | max | 3.2 | 4.0 | 5.0 | 5.6 | 7.00 | 8.00 | 9.50 | 12.00 | 16.00 | 20.00 |
min | 2.9 | 3.7 | 4.7 | 5.3 | 6.64 | 7.64 | 9.14 | 11.57 | 15.57 | 19.48 | |
k | max | 1.30 | 1.60 | 2.10 | 2.40 | 2.60 | 3.10 | 3.70 | 4.6 | 6.0 | 7.50 |
min | 1.16 | 1.46 | 1.96 | 2.26 | 2.46 | 2.92 | 3.52 | 4.3 | 5.7 | 7.14 | |
slot number | 0 | 0 | 1 | 1 | 2 | 2 | 2 | 3 | 4 | 4 |
We are an audited supplier in supply kinds of titanium fasteners including the Pure Titanium and titanium alloy bolts and nuts,Ti screws and cnc parts and related titanium products.One stop service for supply all kinds of titanium bolts and nuts,pure titanium screws,titanium products and stainless steel screws also.
Welcome contact us for Titanium Cross Recessed Pan Head Screws inquiry just mail us info@topqualityalloy.com with necessary sizes and quantity.
GB/T 818 Titanium screws is one of the Titanium Cross Recessed Pan Head Screws,they mainly used in railway and highway bridges,boiler steel structures,industrial plants,high-rise civil buildings,tower and mast structures,hoisting machinery and their steel structures where friction-type high-strength pan head combination screws are required，generally used in occasions with large force, the pan head is more conducive to fixing, and the assembly is more convenient.
GB/T 818 Titanium screws dimensions of Cross Recessed Pan Head Screws as below:
d | M1.6 | M2 | M2.5 | M3 | （M3.5） | M4 | M5 | M6 | M8 | M10 | |
p | pitch | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
b | min | 25 | 25 | 25 | 25 | 38 | 38 | 38 | 38 | 38 | 38 |
dk | max | 3.2 | 4.0 | 5.0 | 5.6 | 7.00 | 8.00 | 9.50 | 12.00 | 16.00 | 20.00 |
min | 2.9 | 3.7 | 4.7 | 5.3 | 6.64 | 7.64 | 9.14 | 11.57 | 15.57 | 19.48 | |
k | max | 1.30 | 1.60 | 2.10 | 2.40 | 2.60 | 3.10 | 3.70 | 4.6 | 6.0 | 7.50 |
min | 1.16 | 1.46 | 1.96 | 2.26 | 2.46 | 2.92 | 3.52 | 4.3 | 5.7 | 7.14 | |
slot number | 0 | 0 | 1 | 1 | 2 | 2 | 2 | 3 | 4 | 4 |
We are an audited supplier in supply kinds of titanium fasteners including the Pure Titanium and titanium alloy bolts and nuts,Ti screws and cnc parts and related titanium products.One stop service for supply all kinds of titanium bolts and nuts,pure titanium screws,titanium products and stainless steel screws also.
Welcome contact us for Titanium Cross Recessed Pan Head Screws inquiry just mail us info@topqualityalloy.com with necessary sizes and quantity.
