1/16-7/16
RuiYang
810890

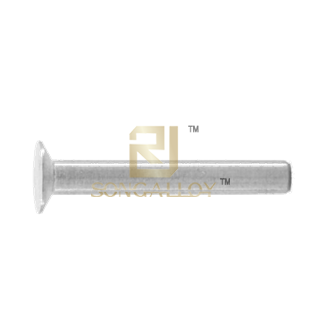

ANSI/ASME B18.1.1(R2016) TABLE2 Titanium Countersunk Head Rivets widely used for cutting tools,stationery books,locks,helmets,car hardware bags,child strollers,car clutch steel plates,motorcycle accessories and household appliances.
We are an audited supplier by SGS,BV,produce GB,DIN,ASME/ANSI,ISO,UNI,JIS,and other industrial standards titanium and titanium alloy fasteners,as well as non-standard titanium and titanium alloy fasteners.With professional factory best guarantee the quality and lead time,just free to buy from us.

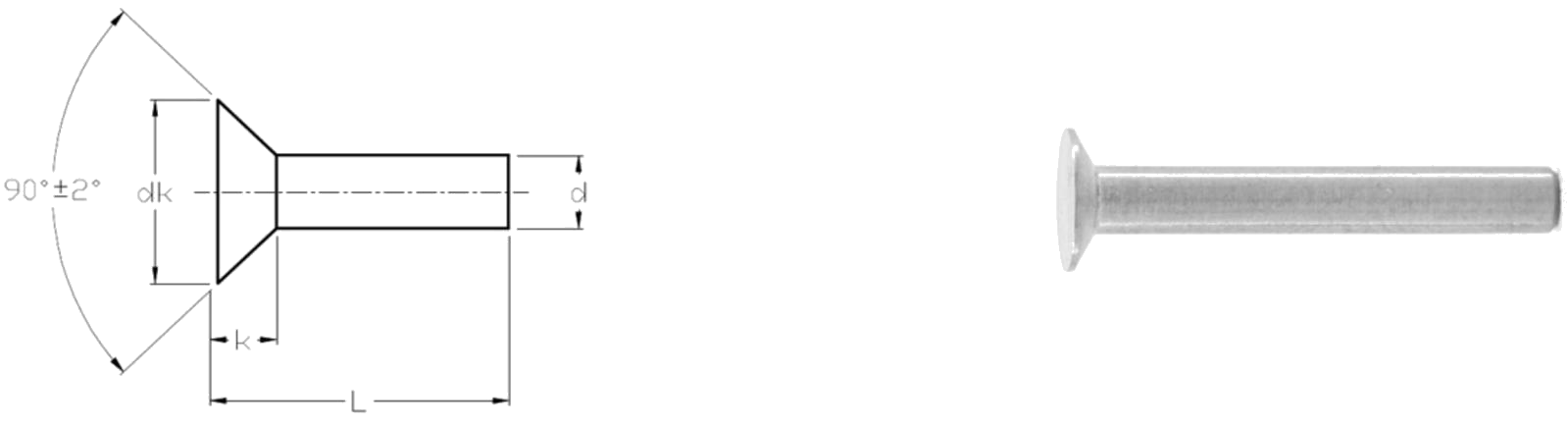

Titanium ANSI/ASME B18.1.1(R2016) TABLE2 Countersunk Head Rivets details sizes and drawings as below:
Nominal diameter(d) | d | dk | k | ||
max | min | max | min | refer | |
1/16 | 0.064 | 0.059 | 0.118 | 0.110 | 0.027 |
3/32 | 0.096 | 0.090 | 0.176 | 0.163 | 0.040 |
1/8 | 0.127 | 0.121 | 0.235 | 0.217 | 0.053 |
5/32 | 0.158 | 0.152 | 0.293 | 0.272 | 0.066 |
3/16 | 0.191 | 0.182 | 0.351 | 0.326 | 0.079 |
7/32 | 0.222 | 0.213 | 0.413 | 0.384 | 0.094 |
1/4 | 0.253 | 0.244 | 0.469 | 0.437 | 0.106 |
9/32 | 0.285 | 0.273 | 0.528 | 0.491 | 0.119 |
5/16 | 0.316 | 0.304 | 0.588 | 0.547 | 0.133 |
11/32 | 0.348 | 0.336 | 0.646 | 0.602 | 0.146 |
3/8 | 0.380 | 0.365 | 0.704 | 0.656 | 0.159 |
13/32 | 0.411 | 0.396 | 0.763 | 0.710 | 0.172 |
7/16 | 0.443 | 0.428 | 0.823 | 0.765 | 0.186 |
Where to buy Titanium Countersunk Head Rivets?Welcome contact us for Titanium ANSI/ASME B18.1.1(R2016) TABLE2 Countersunk Head Rivets inquiry and order.Ruiyang company could supply you one stop service in titanium fasteners,titanium bolts and nuts products,also stainless steel fasteners for your easier import from us.Just mail to info@topqualityalloy.com for our cooperation.
