| Quantity: | |
|---|---|
2-508mm
Ruiyang
810890

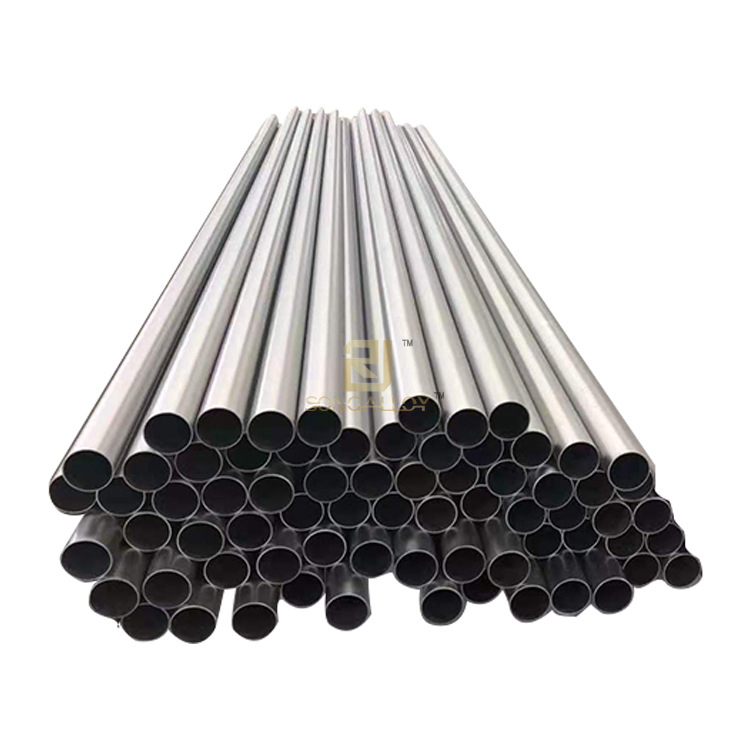

Titanium Alloy Tube,seamless Titanium tubing,welded titanium alloy pipe produce and supply
| Ti tube seamless sizes: | OD2-508*WT0.3~40.0*L200-15000mm,seamless |
| Ti tube welded sizes | OD25-1200MM,Thickness 0.5-40mm welded pipe |
| Manufacture Standard: | ASTM B338, ASTM B337, ASTM B861,ASTM B862, GOST 22897, JIS H4631 or as per clients' requirements |
| titanium pipe Grades: | Pure Titanium GR1,GR2,GR3 and Titanium alloy GR5,GR7,GR9,GR11,GR12,GR16,GR17 |
| Process methods: | cold rolling,welded |
| Surface delivery conditon | solution annealed and pickled or polished |
Titanium and titanium alloy Chemical composition:
| Grades | N | C | H | Fe | O | AI | V | Pd | MO | Ni |
| Gr 1 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | / | / | / |
| Gr 2 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | / | / |
| Gr 3 | 0.03 | 0.08 | 0.015 | 0.30 | 0.35 | / | / | / | / | / |
| Gr 7 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.12-0.25 | / | / |
| Gr 9 | 0.03 | 0.08 | 0.015 | 0.25 | 0.15 | 2.5-3.5 | 2.0-3.0 | / | / | / |
| Gr 11 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | 0.12-0.25 | / | / |
| Gr 12 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | / | 0.2-0.4 | 0.6-0.9 |
| Gr 16 | 0.03 | 0.08 | 0.015 | 0.30 | 0.25 | / | / | 0.04-0.08 | / | / |
| Gr 17 | 0.03 | 0.08 | 0.015 | 0.20 | 0.18 | / | / | 0.04-0.08 | / | / |
Titanium alloy pipe Mechanical Properties:
| Material | Tensile strenght(MPa) | Yield strength (MPa) | Elongation(%) |
| Gr 1(CP1 Titanium,Low Oxygen) | >240 | >138 | >24 |
| Gr 2 (CP2 Titanium, standard Oxygen) | >345 | >275 | >20 |
| Gr 3(CP3 Titanium,Standard Oxygen) | >450 | >380 | >18 |
| Gr 7(Titanium,0.12-0.25%Pd) | >345 | >275 | >15 |
| Gr 9(Ti-3AI-2.5V) | >620 | >483 | >10 |
| Gr 11(Ti-Pd0.12-0.25%,Low Oxygen) | >240 | >138 | >24 |
| Gr 12(Ti-0.3%Mo-0.8%Ni) | >483 | >345 | >18 |
| Gr16(Ti+Pd0.04-0.08%,standard Oxygen) | >345 | >275 | >20 |
| Gr17 (Ti+Pd0.04-0.08%,Low Oxygen) | >240 | >138 | >24 |
