We are an audited Titanium 12 Point Flange Bolts supplier,supply ANSI/ASME B18.2.5M Metric 12-Point Flange Bolts and Screws,could supply Pure Titanium bolts and nuts,revivets and titanium alloy bolts and nuts quality guarantee by our mature entrepreneurial management,professional R&D team,advanced manufacturing technology,We do hope to supply our clients right goods with best price.
What are Titanium 12 point bolts used for?
Titanium 12 point bolts refers to a head type with twelve corners and a bolt with a flange surface.It has a larger grip than the hexagon, and there are more friction surfaces, so it will be more tightened and not easy to loosen.

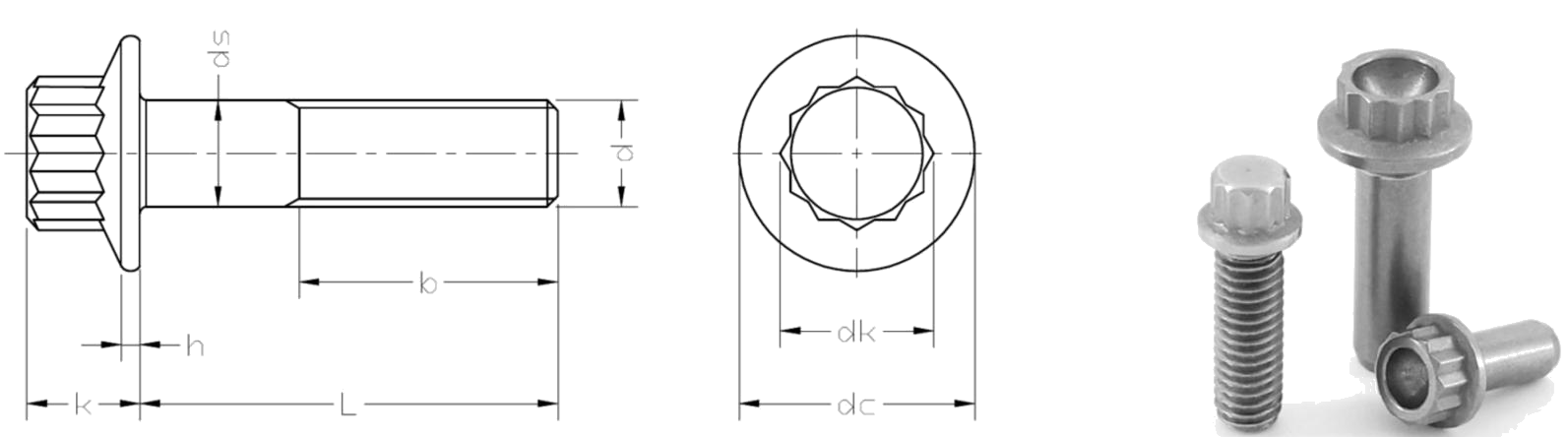

Titanium 12 Point Flange Bolts Dimension according to ANSI/ASME B18.2.5M Metric12-Point Flange Screws:
d | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | M24 | M30 | M36 | |
P | Pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 3 | 3.5 | 4 |
ds | max | 5.00 | 6.00 | 8.00 | 10.00 | 12.00 | 14.00 | 16.00 | 20.00 | 24.00 | 30.00 | 36.00 |
min | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 19.67 | 23.67 | 29.67 | 35.61 | |
dc | max | 8.72 | 10.22 | 13.27 | 16.27 | 18.27 | 21.33 | 24.33 | 30.33 | 36.39 | 45.39 | 54.46 |
min | 8.27 | 9.77 | 12.72 | 15.69 | 17.67 | 20.67 | 23.62 | 29.55 | 35.52 | 44.52 | 52.75 | |
dk | min | 5.60 | 6.70 | 9.00 | 11.20 | 13.50 | 15.80 | 18.00 | 22.50 | 27.00 | 33.80 | 40.50 |
h | max | 2.25 | 2.70 | 3.60 | 4.50 | 5.40 | 6.30 | 7.20 | 9.00 | 10.80 | 13.50 | 16.20 |
min | 2.00 | 2.45 | 3.35 | 4.13 | 5.03 | 5.93 | 6.83 | 8.50 | 10.30 | 13.00 | 15.60 | |
k | max | 5.00 | 6.00 | 8.00 | 10.00 | 12.00 | 14.00 | 16.00 | 20.00 | 24.00 | 30.00 | 36.00 |
min | 4.88 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 19.67 | 23.67 | 29.67 | 35.57 | |
Welcome contact us for inquiry of Titanium 12 point flange bolt with ANSI/ASME B18.2.5M Metric12-Point Flange Screws and related flanges nuts and bolts in titanium fasteners,also stainless steel flanges nuts just mail us info@topqualityalloy.com with necessary sizes and quantity.
