Straight Type Radiant Tube

Straight Type Radiant Tube produce and Supply
I type radiant tube supplier
One stop service for radiant tube and radiant coils
Good price good quality soonest delivery
Availability:
Quantity:
  • customed
  • RUIYANG
  • 841790

Straight Type Radiant Tube made by Centrifugal casting tube produce and supply,Straight type radiant tubes also called I type radiant tube which are used widely in Continuous annealing production line and galvanized line.

I type radiant tubes are known for uniform heating temperature control, outer casing for centrifugal casting or seamless steel tube or coil plate welding manufacturing, internal heating for electric heating core.

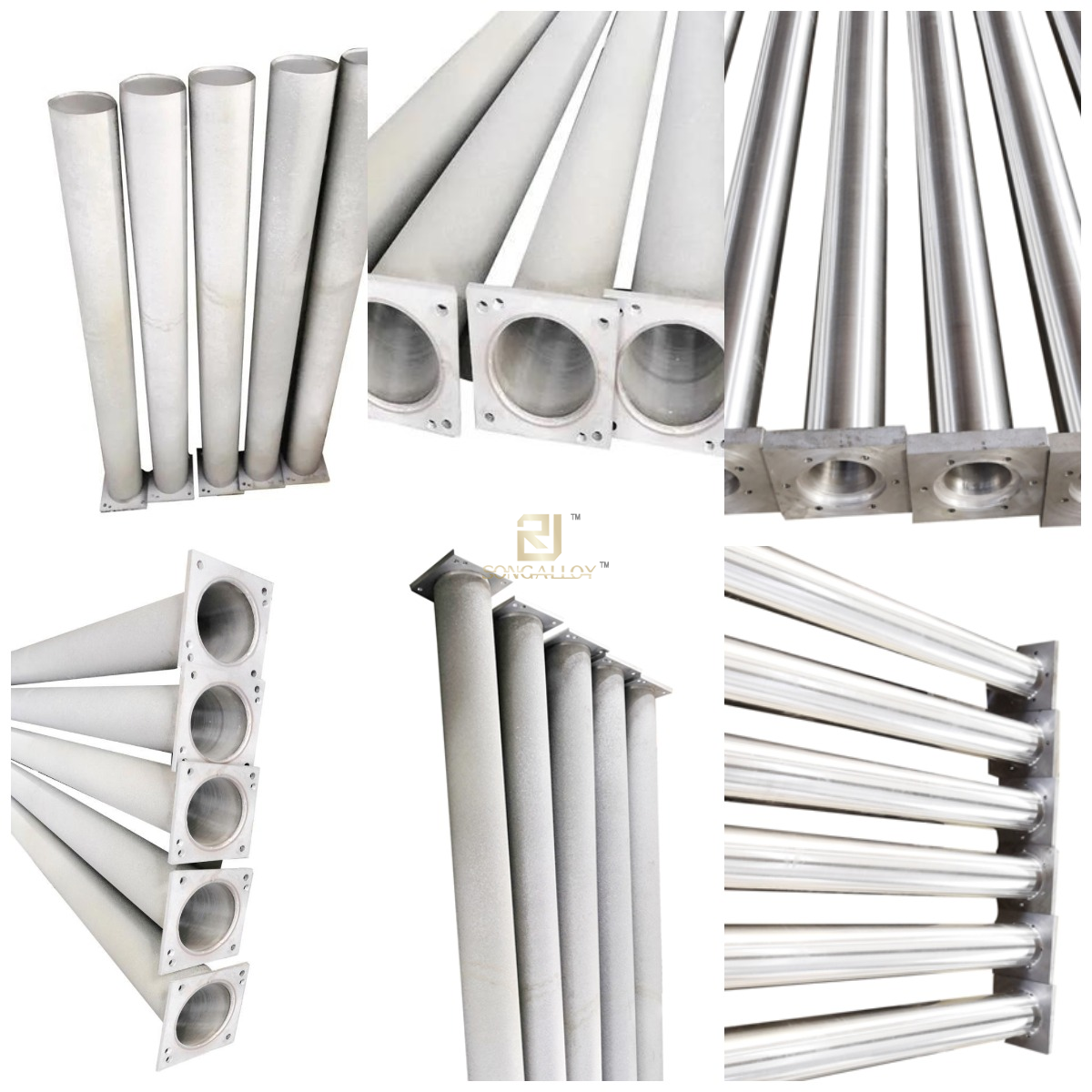

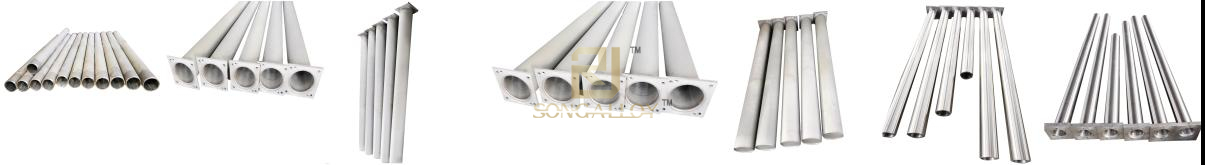

Straight Type Radiant Tubes

Straight type radiant tubes detailed
OD sizes for radiant tube I type OD100mm OD108mm OOD114mm OD159mm D168mm OD203mm OD216mm
Form of straight radiant tubes spiral,squirrel cage type,vertical belt type
Surface of radiant tube straight type casting surface or rolled surface
Radiation tube material usually Heat resistant steel grade:

ZG45Cr28Ni48W5Si2<2848W5>,ZG35Cr28Ni48< 2848>,ZG40Cr25Ni35NbW,2535W2,2535,

ZG40Cr25Ni20Si2< 2520(310S)>

ZGCr26Ni12,Cr24Ni7Si2,1838

CrMnN< Chromium manganese nitrogen>

304,316,316L,HK40,HK50,HK40NB,MORE-1,more-2,

HH,HU,HP,TAH,Co20,Co50,SUPER22H,

Cr35Ni45Nb+ trace elements

Radiant tube Production process:
centrifugal casting process,casting process,Sand casting process,lost mold casting process,mechanical processing,welding assembly

Straight electric heating radiant tube rated temperature of 1000 degrees of radiation tube electric heater,resistance wire material is Cr20Ni80 or HRE,0Cr21Al6Nb,the support frame is high aluminum ceramic parts, the surface working temperature can reach 1200 degrees

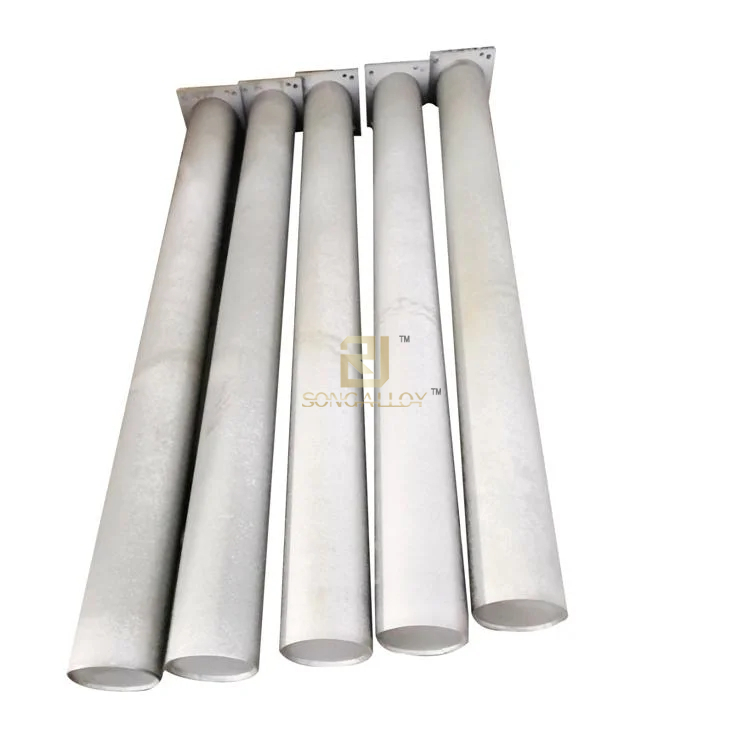

Straight Type Radiant Tube

Straight type radiant tubes near me?

Who could supply straight type radiant tube? when you buy I type radiant tube from China,please contact Ruiyang for heat resistant steel casting radiant tubes inquiry,just mail us info@topqualityalloy.com
