M6-16
songalloy
Ruiyang company are one of the China Stainless Steel Expansion Bolt supplier with stock,we could supply you kinds of stainless steel expansion bolts to meet your projects' requirements one stop service.
We also supply you Carbon Steel Wedge anchor Through Bolt for your choice
Stainless Steel Expansion Bolt supplied with sets including the shank,washers and nuts,easy to install

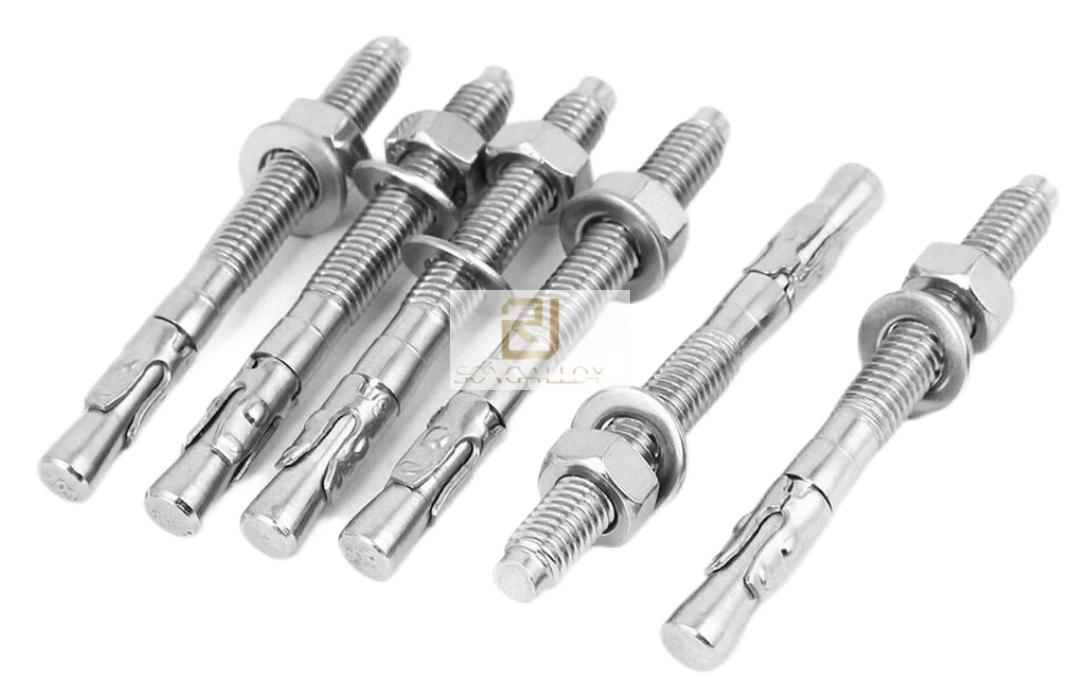

304 Stainless Steel Wedge Anchor is used in outdoor areas where water is present.
304 stainless steel wedge anchors can be used in applications where the wedge anchor would come in contact with moisture, such as fence posts, mailboxes and light fixtures.304 Stainless Steel Wedge Anchor comes complete with 304 stainless steel nuts and washers ready to be installed.
Stainless Steel Wedge Anchor sizes we could supply you various
| Diameter of stainless steel wedge anchor bolts | Length of stainless steel wedge anchor bolts |
| M6 | 50MM,60MM,65MM,70MM,80MM,100MM |
| M8 | 50MM,60MM,65MM,70MM,75MM,80MM,85MM,90MM,95MM,100MM,110MM,115MM,120MM,150MM |
| M10 | 60MM,70MM,75MM,80MM,90MM,100MM,110MM,120MM,140MM,150MM,200MM |
| M12 | 80MM,90MM,100MM,110MM,120MM,140MM,150MM,160MM,180MM,200MM |
| M16 | 90MM,100MM,105MM,120MM,125MM,140MM,145MM,150MM,170MM,180MM,200MM |
| M18 | 150MM,200MM or customed |
| M20 | 150MM,200MM,or customed |
| 1/4-20 | 2-1/4'',3'',3-1/4'' |
| 5/16-18 | 2-1/4'',3'',3-1/4'' |
| 3/8-16 | 2-1/4'',2-3/4'',3",3-1/2''',3-3/4'' |
| 1/2-13 | 3",3-3/4'',4",4-1/4'',4-1/2'',5-1/2'' |
How to do installation the stainless steel wedge anchor bolts?
Stainless Steel Wedge Anchor never be used in brick or block base material because they are designed for use only in solid concrete.
A hole that is the same diameter as the diameter of anchor being installed must be drilled in the concrete for the Stainless Steel Wedge Anchor to be inserted.
A carbide tipped bit must be used in a hammer drill to insure the correctly matched tolerance hole.
When drilling into concrete for the installation of wedge anchor, a hammer drill must be used and set in the hammer and rotation mode using a carbide tip bit that meets standards.
The strengthen holding according to the diameter and length usually.Stainless Steel Wedge Anchor rise with the increased diameter and the length of embedment into the concrete.Each diameter of Stainless Steel Wedge Anchor has a minimum depth of embedment requirement to meet minimum holding values.Embedment depth less than minimum are prohibited because the holding values may inadequate or nonexistent.
Where to buy stainless steel wedge anchor bolts,please contact us for inquiry and order.
Ruiyang company are one of the China Stainless Steel Expansion Bolt supplier with stock,we could supply you kinds of stainless steel expansion bolts to meet your projects' requirements one stop service.
We also supply you Carbon Steel Wedge anchor Through Bolt for your choice
Stainless Steel Expansion Bolt supplied with sets including the shank,washers and nuts,easy to install
304 Stainless Steel Wedge Anchor is used in outdoor areas where water is present.
304 stainless steel wedge anchors can be used in applications where the wedge anchor would come in contact with moisture, such as fence posts, mailboxes and light fixtures.304 Stainless Steel Wedge Anchor comes complete with 304 stainless steel nuts and washers ready to be installed.
Stainless Steel Wedge Anchor sizes we could supply you various
| Diameter of stainless steel wedge anchor bolts | Length of stainless steel wedge anchor bolts |
| M6 | 50MM,60MM,65MM,70MM,80MM,100MM |
| M8 | 50MM,60MM,65MM,70MM,75MM,80MM,85MM,90MM,95MM,100MM,110MM,115MM,120MM,150MM |
| M10 | 60MM,70MM,75MM,80MM,90MM,100MM,110MM,120MM,140MM,150MM,200MM |
| M12 | 80MM,90MM,100MM,110MM,120MM,140MM,150MM,160MM,180MM,200MM |
| M16 | 90MM,100MM,105MM,120MM,125MM,140MM,145MM,150MM,170MM,180MM,200MM |
| M18 | 150MM,200MM or customed |
| M20 | 150MM,200MM,or customed |
| 1/4-20 | 2-1/4'',3'',3-1/4'' |
| 5/16-18 | 2-1/4'',3'',3-1/4'' |
| 3/8-16 | 2-1/4'',2-3/4'',3",3-1/2''',3-3/4'' |
| 1/2-13 | 3",3-3/4'',4",4-1/4'',4-1/2'',5-1/2'' |
How to do installation the stainless steel wedge anchor bolts?
Stainless Steel Wedge Anchor never be used in brick or block base material because they are designed for use only in solid concrete.
A hole that is the same diameter as the diameter of anchor being installed must be drilled in the concrete for the Stainless Steel Wedge Anchor to be inserted.
A carbide tipped bit must be used in a hammer drill to insure the correctly matched tolerance hole.
When drilling into concrete for the installation of wedge anchor, a hammer drill must be used and set in the hammer and rotation mode using a carbide tip bit that meets standards.
The strengthen holding according to the diameter and length usually.Stainless Steel Wedge Anchor rise with the increased diameter and the length of embedment into the concrete.Each diameter of Stainless Steel Wedge Anchor has a minimum depth of embedment requirement to meet minimum holding values.Embedment depth less than minimum are prohibited because the holding values may inadequate or nonexistent.
Where to buy stainless steel wedge anchor bolts,please contact us for inquiry and order.
