Stainless Steel Vertical Check Valve

We supply kinds of stainless steel Vertical check valves and related valves pipe fittings to satisfy your projects
1)Vertical and non return valve Sealing Form:Metal Seat
2) Size: 1/2''-2''(DN15-DN50)
3) Material: CF8(SS304), CF8M(SS316), DIN1.4408/1.4308
4)Threaded: BSP, NPT, PT, DIN259/2999
5)Working Pressure: 200PSI
6)Suitable Temp.: -20~200ºC~350ºC
7) Suitable Medium: Water, Natural Gas, Oil and some corrosive liquid
8)check valve vertical installation Flow Direction:Unidirection
9)Application:Industrial Usage, Water Industrial Usage,Household Usage
10)Transport Package:Carton&Plywood Case
Welcome contact us for 2pc Stainless Steel Vertical Check Valve inquiry and order
Availability:
Quantity:
  • 1/2''-2''
  • songalloy
  • 848180

2PC Vertical Spring Check Valve Thread end in Stainless Steel Vertical Check Valve produce and supply

Our Stainless vertical spring check valves Features,Please rest assured to buy from us.
1.Investment casting Body
2.Screwed bonnet,replaceable seat
3.Low pressure drop
4.Working pressure 200 psi for W.O.G.
5.Temperature range: -60 to 450 °F
6.100% leakage tested at 100 psi air under water

7.Hydrostatic test pressure: 300psi

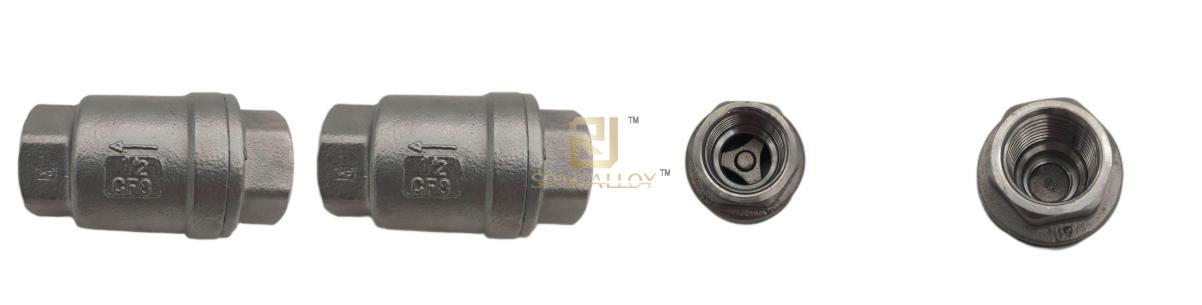

Stainless Steel Vertical Check Valves

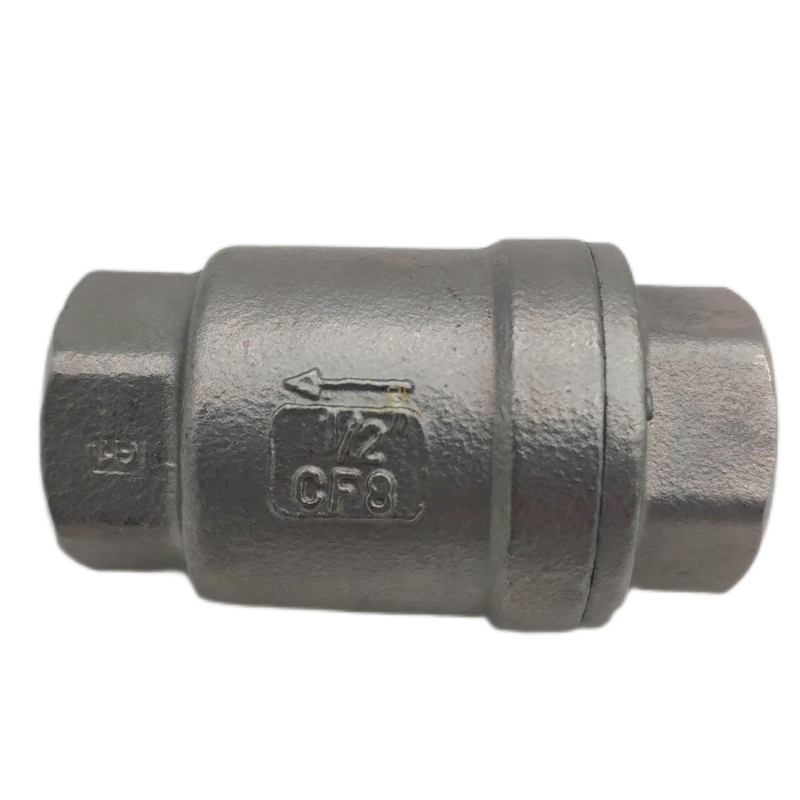

2PC Vertical Spring Check Valve Thread end
1. SS check valve material Stainless Steel 304,316,304L,316L (CF8/CF8M/CF3/CF3M)
2. 2pc ss vertical spring check valve Sizes 1/2''~2'' ( DN15~DN50)
3. Port Full Port
4. 2pcs vertical check valve working Pressure 200PSI (PN13.8/1.38Mpa)
5. Connection Ends NPT/BSP/BSPT/DIN259/DIN2999
6. Working Temp. -20~350ºC
7. Suitable Medium Water, Natural Gas, Oil and some corrosive liquid
8. Seal Metal
9. Locking Option
10. Inspection & Testing According to API598
11.Package safe Standard Exporting Plywood Case
12.Warranty 18 Months after leaving factory,We can repair or change because of the quality problems.
We also manufacture Flange Ball Valve, Gate Valve, Globe Valve, Check Valve, Butterfly Valve & Y Strainer,OEM/ODM is applicable
Main performance parameters quality guarantee
Test pressure PN(Mpa)
1.0 1.6 2.5
Body strength Test 1.5 2.4 3.75
Seal Test(liquid) 1.1 1.76 2.75
Seal test(Gas) 0.5-0.8Mpa
Applicable medium Water, steam, gas, dust, oil, nitric acid, acetic acid, alkali,etc.
Applicable temperature ≤200ºC

When you send us inquiry please provide detail necessary information with sizes DN,material,pressure,model or usage.When you found who could supply 1-1/4" Male x 1-1/4"Male Threaded Pipe Fitting Stainless Steel 304 BSPT 200MM,who could supply 2pcs stainless steel vertical check valve and fittings,please contact us freely.
