| Quantity: | |
|---|---|
2-20
Ruiyang

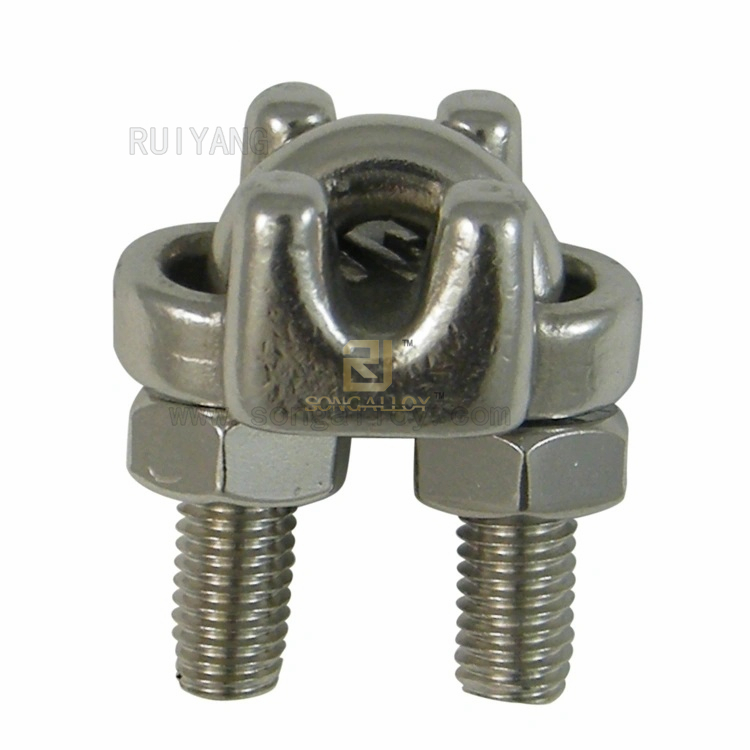

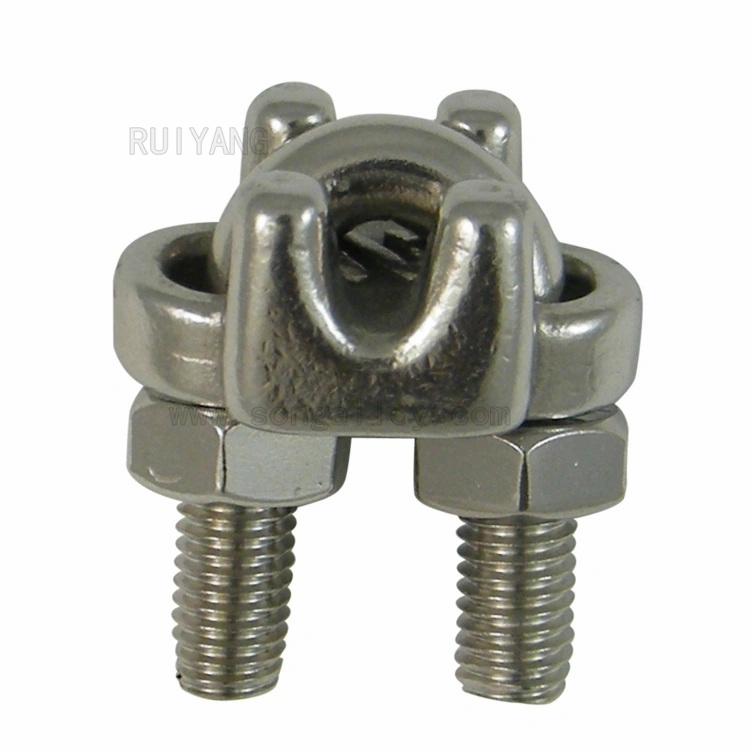

Stainless Steel Simplex Wire Rope Clip is A wire rope clip,also called a clamp,cable clamp,wire rope clamp,U-Clip,U-Clamp,which is used to fix the loose end of the loop back to the wire rope. It usually consists of a U-shaped bolt, a forged or cast saddle and two nuts. The two layers of wire rope are placed in the stainless steel U-bolts.
Stainless steel Simplex Wire Rope Clips are a common and necessary piece of rigging hardware when it comes to using wire rope and forming end terminations. They are used to form a wire rope eye or to connect two cables together.
Stainless Steel simplex wire rope clips are made usually 304 stainless steel and 316 stainless steel wire rope clamps, corrosion resistance, long life span for maximum corrosion resistance and durability.Perfect for rigging rope, wire and cable in unlimited applications mainly in rigging, temporary guardrail systems, securing loads, hanging banners, flags and signs and basically anything that involves cables

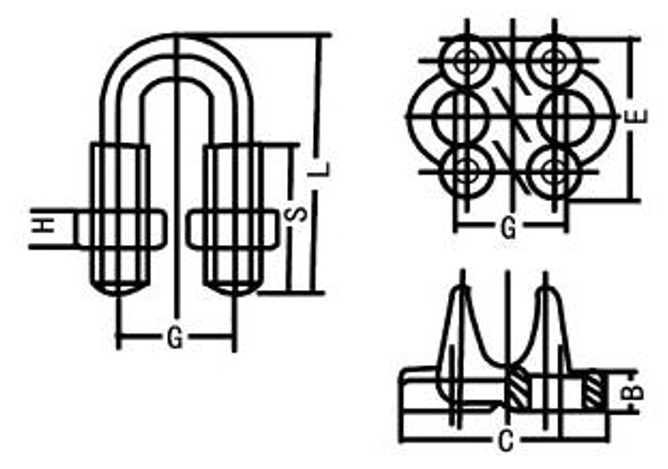

Stainless Steel DIN741 Wire Rope Clamp details as above pictures
SIZE MM | B MM | C MM | E MM | G MM | H MM | L MM | S MM |
3 | 3.5 | 15 | 12 | 7 | 3 | 22 | 13 |
4 | 3.5 | 17 | 13 | 8 | 3.5 | 24 | 15 |
5 | 4 | 20 | 16 | 10 | 3.5 | 26 | 16 |
6 | 5 | 25 | 20 | 12 | 4 | 30 | 18 |
8 | 6 | 29 | 24 | 14 | 5 | 35 | 20 |
10 | 6 | 36 | 31 | 18 | 6.5 | 40 | 20 |
12 | 7 | 45 | 35 | 22 | 8 | 50 | 28 |
13 | 8 | 51 | 39 | 26 | 10 | 60 | 35 |
14 | 9 | 53 | 45 | 28 | 10 | 65 | 40 |
16 | 10 | 60 | 48 | 35 | 11 | 75 | 45 |
18 | 11 | 62 | 53 | 34 | 11 | 80 | 50 |
20-22 | 12 | 75 | 62 | 44 | 15 | 100 | 60 |
24-25 | 13 | 86 | 68 | 48 | 16 | 110 | 65 |
26-28 | 14 | 94 | 75 | 54 | 18 | 120 | 70 |
30-32 | 15 | 98 | 79 | 58 | 18 | 130 | 75 |
33-38 | 16 | 120 | 93 | 70 | 22 | 150 | 85 |
40-45 | 19 | 136 | 100 | 80 | 24 | 175 | 95 |
47-50 | 21 | 150 | 115 | 89 | 26 | 195 | 100 |
56-60 | 25 | 170 | 128 | 101 | 29 | 240 | 115 |
63-70 | 27 | 190 | 142 | 115 | 31 | 270 | 130 |
73-80 | 29 | 212 | 156 | 127 | 34 | 300 | 150 |
Welcome contact us for Stainless steel Simplex Wire Rope Clip and other related stainless steel wire rope fittings and marine hardware,also kinds of stainless steel wire ropes.
