731819

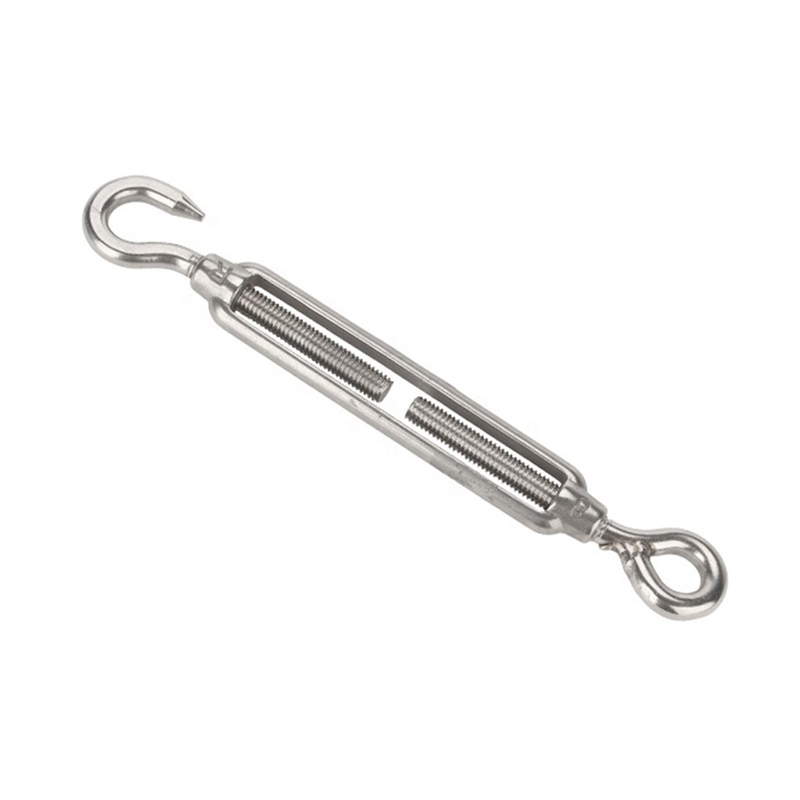

Stainless Steel Hook And Eye Turnbuckle is mainly used for the temporary connection of the wire rope and the fixation of the rear hand rope through the sliding car group, and the fixation of the cable wind rope rope head on the pick rod.It is a wide range of used products in lifting operations can also be used in various engineering lifting machinery, metallurgical machinery, oilfield derrick, port railway loading and unloading, forestry machinery, power equipment, sea, land transportation, engineering rescue, salvage of sunken ships, factory and mining enterprises lifting, lifting, traction rigging.
304 is a kind of common stainless steel, it is widely used to make for a good comprehensive performance, corrosion resistance and formability of equipment and parts. In order to keep inherent corrosion resistance of stainless steel, steel must contain more than 18% of chromium, more than 8% of the nickel content,316 stainless steel by adding Mo element, make its corrosion resistance, and improve the high temperature strength, high temperature can reach 1200-1300 degrees, can be used in critical conditions.
304 and 316 stainless steel hook and eye turnbuckle according to different process forming method consists of casting malleable cast iron, ordinary carbon steel, forged three, now on the market are mainly two kinds of plain carbon steel and forged.

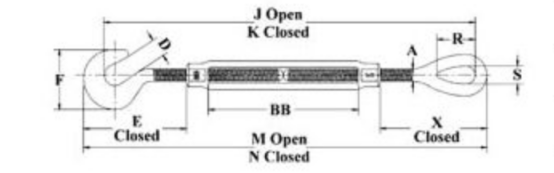

HOOK&EYE TURNBUCKLE
THREAD DIAMETER &TAKE UP(MM) | WEIGHT EACH (KG) | DIMENSIONS(mm) | |||||||||||
A | D | E | F | J | K | M | N | R | S | X | BB | ||
6.35X102 | 0.14 | 6.35 | 11.2 | 42.3 | 32.3 | 296 | 195 | 312 | 211 | 20.6 | 8.86 | 44.6 | 103 |
7.94x152 | 0.23 | 7.94 | 12.7 | 50.7 | 38.1 | 343 | 229 | 363 | 248 | 24.1 | 11.2 | 55.8 | 116 |
9.53x152 | 0.36 | 9.53 | 14.2 | 57.8 | 44.7 | 434 | 282 | 458 | 306 | 28.7 | 13.5 | 62.9 | 155 |
12.7x152 | 0.82 | 12.7 | 16.5 | 89.7 | 57.9 | 497 | 345 | 528 | 376 | 35.8 | 18.0 | 90.4 | 153 |
12.7x305 | 1.22 | 12.7 | 16.5 | 89.2 | 57.9 | 809 | 504 | 840 | 535 | 35.8 | 18.0 | 89.9 | 314 |
15.9x152 | 1.35 | 15.9 | 22.9 | 108 | 71.4 | 536 | 384 | 574 | 422 | 45.7 | 22.4 | 110 | 153 |
15.9x305 | 1.97 | 15.9 | 22.9 | 107 | 71.4 | 850 | 545 | 888 | 583 | 45.7 | 22.4 | 110 | 315 |
19.1x152 | 1.91 | 19.1 | 24.9 | 129 | 84.6 | 574 | 422 | 621 | 469 | 53.1 | 25.4 | 130 | 156 |
19.1x305 | 2.96 | 19.1 | 24.9 | 128 | 84.6 | 889 | 584 | 936 | 631 | 53.1 | 25.4 | 129 | 320 |
19.1x457 | 3.74 | 19.1 | 24.9 | 129 | 84.6 | 1194 | 737 | 1241 | 784 | 53.1 | 25.4 | 130 | 471 |
22.2x305 | 4.24 | 22.2 | 28.7 | 148 | 96.0 | 917 | 612 | 971 | 666 | 60.5 | 31.8 | 147 | 309 |
25.4x305 | 6.29 | 25.4 | 31.8 | 167 | 108 | 956 | 652 | 1018 | 713 | 76.2 | 36.3 | 165 | 309 |

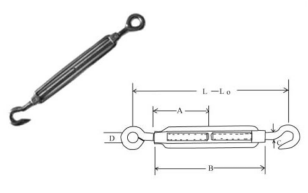

EU TYPE TURNBUCKLE
SIZE | A | B | C | D | L | L1 | WLL(T) |
M4 | 30 | 58 | 5 | 6.5 | 80 | 131 | 0.025 |
M5 | 34 | 70 | 6 | 8 | 96 | 146 | 0.04 |
M6 | 44 | 90 | 8 | 10 | 122 | 190 | 0.10 |
M8 | 58 | 120 | 12 | 14 | 164 | 255 | 0.20 |
M10 | 73 | 150 | 13 | 16 | 205 | 325 | 0.30 |
M12 | 97 | 200 | 15 | 18 | 364 | 425 | 0.50 |
M14 | 110 | 225 | 18 | 20 | 300 | 486 | 0.70 |
M16 | 122 | 250 | 20 | 26 | 337 | 548 | 0.80 |
M20 | 147 | 300 | 25 | 30 | 406 | 646 | 1.20 |
As mentioned above,stainless steel turnbuckles can be used with a length of wire rope,cable or other rigging assembly as a connection point to adjust slack and tension within the line.
Turnbuckles can be used for something as simple as a fence or as complicated as a suspension bridge. Some industries that commonly use turnbuckles are:
Sports and entertainment – turnbuckles are used to act as a securement point and to create tension in the ropes surrounding a wrestling or boxing ring. You can’t see them, of course, since they are covered in soft material for the athletes’ safety!
Maritime transport – turnbuckles are commonly used to tension a ship’s lashing and rigging components.
Construction – turnbuckles are often used to provide tension support for suspension bridges, large buildings, and highway guardrail cable assemblies.
Aviation – cables and wires present within the construction of an aircraft—wings, flight control systems, etc—are tensioned by turnbuckles.
Welcome contact us for Stainless Steel Hook And Eye Turnbuckle inquiry with your drawings and design,we have lots of sizes to be best suit your needs.
Stainless Steel Hook And Eye Turnbuckle is mainly used for the temporary connection of the wire rope and the fixation of the rear hand rope through the sliding car group, and the fixation of the cable wind rope rope head on the pick rod.It is a wide range of used products in lifting operations can also be used in various engineering lifting machinery, metallurgical machinery, oilfield derrick, port railway loading and unloading, forestry machinery, power equipment, sea, land transportation, engineering rescue, salvage of sunken ships, factory and mining enterprises lifting, lifting, traction rigging.
304 is a kind of common stainless steel, it is widely used to make for a good comprehensive performance, corrosion resistance and formability of equipment and parts. In order to keep inherent corrosion resistance of stainless steel, steel must contain more than 18% of chromium, more than 8% of the nickel content,316 stainless steel by adding Mo element, make its corrosion resistance, and improve the high temperature strength, high temperature can reach 1200-1300 degrees, can be used in critical conditions.
304 and 316 stainless steel hook and eye turnbuckle according to different process forming method consists of casting malleable cast iron, ordinary carbon steel, forged three, now on the market are mainly two kinds of plain carbon steel and forged.
HOOK&EYE TURNBUCKLE
THREAD DIAMETER &TAKE UP(MM) | WEIGHT EACH (KG) | DIMENSIONS(mm) | |||||||||||
A | D | E | F | J | K | M | N | R | S | X | BB | ||
6.35X102 | 0.14 | 6.35 | 11.2 | 42.3 | 32.3 | 296 | 195 | 312 | 211 | 20.6 | 8.86 | 44.6 | 103 |
7.94x152 | 0.23 | 7.94 | 12.7 | 50.7 | 38.1 | 343 | 229 | 363 | 248 | 24.1 | 11.2 | 55.8 | 116 |
9.53x152 | 0.36 | 9.53 | 14.2 | 57.8 | 44.7 | 434 | 282 | 458 | 306 | 28.7 | 13.5 | 62.9 | 155 |
12.7x152 | 0.82 | 12.7 | 16.5 | 89.7 | 57.9 | 497 | 345 | 528 | 376 | 35.8 | 18.0 | 90.4 | 153 |
12.7x305 | 1.22 | 12.7 | 16.5 | 89.2 | 57.9 | 809 | 504 | 840 | 535 | 35.8 | 18.0 | 89.9 | 314 |
15.9x152 | 1.35 | 15.9 | 22.9 | 108 | 71.4 | 536 | 384 | 574 | 422 | 45.7 | 22.4 | 110 | 153 |
15.9x305 | 1.97 | 15.9 | 22.9 | 107 | 71.4 | 850 | 545 | 888 | 583 | 45.7 | 22.4 | 110 | 315 |
19.1x152 | 1.91 | 19.1 | 24.9 | 129 | 84.6 | 574 | 422 | 621 | 469 | 53.1 | 25.4 | 130 | 156 |
19.1x305 | 2.96 | 19.1 | 24.9 | 128 | 84.6 | 889 | 584 | 936 | 631 | 53.1 | 25.4 | 129 | 320 |
19.1x457 | 3.74 | 19.1 | 24.9 | 129 | 84.6 | 1194 | 737 | 1241 | 784 | 53.1 | 25.4 | 130 | 471 |
22.2x305 | 4.24 | 22.2 | 28.7 | 148 | 96.0 | 917 | 612 | 971 | 666 | 60.5 | 31.8 | 147 | 309 |
25.4x305 | 6.29 | 25.4 | 31.8 | 167 | 108 | 956 | 652 | 1018 | 713 | 76.2 | 36.3 | 165 | 309 |
EU TYPE TURNBUCKLE
SIZE | A | B | C | D | L | L1 | WLL(T) |
M4 | 30 | 58 | 5 | 6.5 | 80 | 131 | 0.025 |
M5 | 34 | 70 | 6 | 8 | 96 | 146 | 0.04 |
M6 | 44 | 90 | 8 | 10 | 122 | 190 | 0.10 |
M8 | 58 | 120 | 12 | 14 | 164 | 255 | 0.20 |
M10 | 73 | 150 | 13 | 16 | 205 | 325 | 0.30 |
M12 | 97 | 200 | 15 | 18 | 364 | 425 | 0.50 |
M14 | 110 | 225 | 18 | 20 | 300 | 486 | 0.70 |
M16 | 122 | 250 | 20 | 26 | 337 | 548 | 0.80 |
M20 | 147 | 300 | 25 | 30 | 406 | 646 | 1.20 |
As mentioned above,stainless steel turnbuckles can be used with a length of wire rope,cable or other rigging assembly as a connection point to adjust slack and tension within the line.
Turnbuckles can be used for something as simple as a fence or as complicated as a suspension bridge. Some industries that commonly use turnbuckles are:
Sports and entertainment – turnbuckles are used to act as a securement point and to create tension in the ropes surrounding a wrestling or boxing ring. You can’t see them, of course, since they are covered in soft material for the athletes’ safety!
Maritime transport – turnbuckles are commonly used to tension a ship’s lashing and rigging components.
Construction – turnbuckles are often used to provide tension support for suspension bridges, large buildings, and highway guardrail cable assemblies.
Aviation – cables and wires present within the construction of an aircraft—wings, flight control systems, etc—are tensioned by turnbuckles.
Welcome contact us for Stainless Steel Hook And Eye Turnbuckle inquiry with your drawings and design,we have lots of sizes to be best suit your needs.
