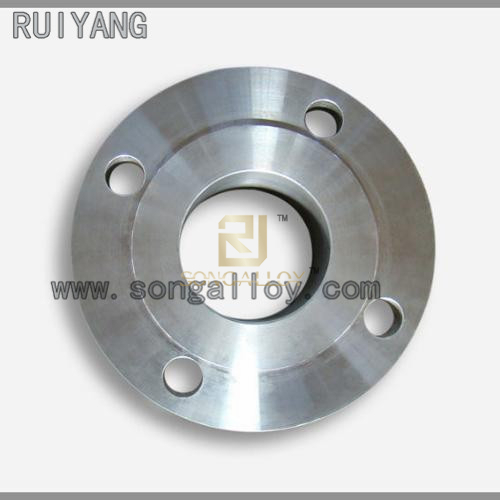

Stainless Steel Flange

Stainless steel flanges are used in pairs. There are matching stainless steel flanges on valves. In pipeline engineering, stainless steel flanges are mainly used for pipeline connection. Stainless steel flange can be installed for connecting pipes, stainless steel flange can be used for low pressure pipes, when the pressure is greater than 4kg, stainless steel flange can be welded. The gasket is added between the two stainless steel flanges, and then they are fixed by bolts. Stainless steel flanges with different pressures have different thicknesses and bolts.
Quantity:
  • DN15-DN3000mm
  • Ruiyang
  • 7307210000

Stainless steel flanges always used in pairs,also called stainless steel pipe flanges,including the stainless steel plate flanges,slip on flange,socket flanges,thread flanges and welded neck flanges,blind flanges and spectacle flanges etc,stainless flanges usually used in connecting the pipes,valves,butt-welding fittings such as stainless steel elbow,stainless steel flanges,stainless steel tee,stainless steel reducers,stainless steel stub end pipe fittings or in the fields of Petroleum, Chemicals, Shipbuilding,machine-made industry,  Pharmaceutical, Metallurgy, Machinery, Food, etc.


Forged stainless steel flange material conforms to ASME A182 ASME F304, ASME F304L, ASME F316, ASME F316L, ASME F321,1.4301, 1.4306, 1.4401, 1.4404, 1.4541 SUS F304, SUS F304L, SUSF316, SUSF316L, SUS F321,316Ti,2205,S31803et

Stainless steel flanges type

SIZES

 sealing face:

PN

standard

Plate flanges

DN10-3000MM

(RF)(FF)

0.25-2.5

ANSIB16.5,JISB2220,EN1092-1,BS10,DIN,UNI,AS or as per drawings

Slip on neck flanges

DN10-3000MM

(RF),

(FF),

(MFM),

(LG)

0.6-25mMpa

Socket welding flanges

DN10-3000MM

RF,MFM,LG

0.6-10Mpa

Thread flanges

DN10-3000MM

RF,FF

0.6-4.0 Mpa

Lap joint flange

DN10-3000MM

(RF),(FF)

1-25Mpa,

PN6 - PN160,

150LBS-2500LBS,

JIS 5K-40K

Weld neck flanges

WN flanges

DN10-3000MM

(RF),

(FF),

(MFM),

(LG)

(RJ)

1-25Mpa,

PN6 - PN160,

150LBS-2500LBS,

JIS 5K-40K

Blind flanges

DN10-3000MM

(RF),(FF)(MFM),(LG),(RJ)

PN6 - PN160, 150LBS-2500LBS, 5K-40K  ,0.25-25Mpa

Welcome to contact us for stainless steel flanges inquiry.
