3-800mm
Ruiyang
7222110000

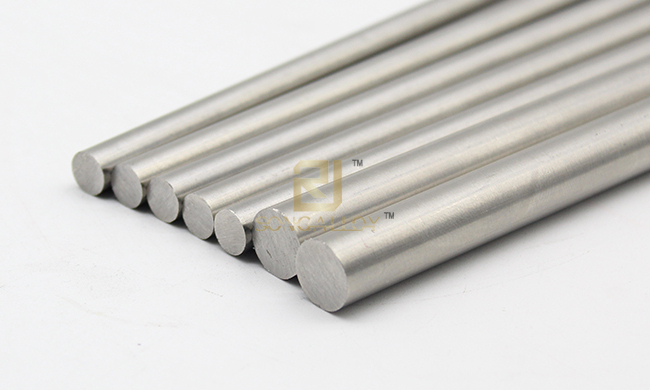

Stainless Steel round Bar also called round steel,stainless steel round steel,stainless steel rod, stainless steel solid round bar,stainless steel hollow bars,including Hot Working stainless round Bar and Cold Working ss round Bar,common grades are 304 stainless steel round bar,316 stainless steel round bar,stainless steel round stock always have,stainless steel round bar prices usually according with nickle price
ss round bar Grades :
| ASTM201,201+Cu,202,204+Cu,205,301,303,302,304,304L,305,308,308L,309,309L, 310,310S,316,316L, 316Ti,316LN,317,317L, 321,329,347, ,409,410,416,420,430,430F,431,446, 630,631,2205,S31803, s32750 or customed |
Manufacture Standard of ss solid bar
| (ASTMA276-96)(ASTM582) (ASTM564) (GB/T4226-84) (GB1200-93) (GB/T4240-93) (GB/T4232-93) (ASTMA484-96) SUS,JIS, EN, DIN, ETC
|
Sizes: | ø3- ø 800mm
|
Supplied conditions of stainless steel round rod:
| 6-60mm, cold drawn bright finish & polishing |
8-100mm,center less lathes peeled & polishing | |
Above 100mm-800mm,rough turning & polish | |
per meter weight ss bars (KG/Meter) | Dia mm X Dia mm X 0.00623(KG/Meter) |
Features of Stainless Steel round Bar:
| 1). The appearance of cold-drawn,peeled and polishing products gloss is good, beautiful; 2). The addition of corrosion resistance, especially pitting resistance is excellent; 3). Excellent high temperature strength; 4). Excellent work-hardening (after processing weakly magnetic); 5). Non-magnetic state solution. |
Austenitic stainless steel bars after solution treatment Physical properties:Parts of ASTM A276
Grade | Tensile strength (σb Mpa) | Yield strengthen (σr0.2 Mpa ) | Elongation δ5 (%) | Hardness Test HB max |
201 | ≧515 | ≧275 | ≧40 | |
202 | ≧515 | ≧275 | ≧40 | |
205 | ≧690 | ≧414 | ≧40 | |
302 | ≧515 | ≧205 | ≧30 | |
304 | ≧520 | ≧205 | ≧40 | 187 |
304L | ≧485 | ≧170 | ≧40 | |
316 | ≧515 | ≧205 | ≧40 | |
316L | ≧485 | ≧170 | ≧30 | |
316Ti | ≧515 | ≧205 | ≧40 | |
316N | ≧550 | ≧240 | ≧30 | |
310 | ≧515 | ≧205 | ≧40 | 187 |
321 | ≧515 | ≧205 | ≧40 | 187 |
309 | ≧515 | ≧205 | ≧40 | 187 |
309S | ≧515 | ≧205 | ≧40 | 187 |
308 | ≧515 | ≧205 | ≧40 | 187 |
314 | ≧515 | ≧205 | ≧40 |
GB/T905-94 (Tolerance for Cold Drawn Round Stainless Steel Bars)
Size | (Rank) | |||||
H8 | H9 | H10 | H11 | H12 | H13 | |
3 | 0~-0.014 | 0~-0.025 | 0~-0.040 | 0~-0.060 | 0~-0.10 | 0~-0.14 |
>3~ ≤6 | 0~-0.018 | 0~-0.030 | 0~-0.048 | 0~-0.075 | 0~-0.12 | 0~-0.18 |
>6~ ≤10 | 0~-0.022 | 0~-0.036 | 0~-0.058 | 0~-0.090 | 0~-0.15 | 0~-0.22 |
>10~ ≤18 | 0~-0.027 | 0~-0.043 | 0~-0.070 | 0~-0.11 | 0~-0.018 | 0~-0.27 |
>18~ ≤30 | 0~-0.033 | 0~-0.052 | 0~-0.084 | 0~-0.13 | 0~-0.21 | 0~-0.33 |
>30~ ≤50 | 0~-0.039 | 0~-0.062 | 0~-0.10 | 0~-0.16 | 0~-0.25 | 0~-0.39 |
>50~ ≤80 | 0~-0.046 | 0~-0.074 | 0~-0.12 | 0~-0.19 | 0~-0.30 | 0~-0.46 |
Round ss bars weight list(ASTM A276/A484) W=0.00623xd2
mm Diameter | kg/m Weight | mm Diameter | kg/m Weight | mm Diameter | kg/m Weight |
Ø8 | 0.399 | Ø32 | 6.380 | Ø80 | 39.872 |
Ø10 | 0.623 | Ø35 | 7.632 | Ø85 | 45.012 |
Ø12 | 0.879 | Ø38 | 8.996 | Ø90 | 50.463 |
Ø14 | 1.221 | Ø40 | 9.968 | Ø95 | 56.226 |
Ø15 | 1.402 | Ø42 | 10.99 | Ø100 | 62.300 |
Ø16 | 1.595 | Ø45 | 12.616 | Ø105 | 68.686 |
Ø18 | 2.019 | Ø48 | 14.354 | Ø110 | 75.383 |
Ø20 | 2.492 | Ø50 | 15.575 | Ø115 | 82.392 |
Ø22 | 3.012 | Ø55 | 18.846 | Ø120 | 89.712 |
Ø24 | 3.588 | Ø60 | 22.425 | Ø125 | 97.344 |
Ø25 | 3.894 | Ø65 | 26.322 | Ø130 | 105.287 |
Ø28 | 4.884 | Ø70 | 30.527 | Ø135 | 113.542 |
Ø30 | 5.607 | Ø75 | 35.044 | Ø140 | 122.108 |
Where to buy stainless steel round bars bright bars,stainless steel bright round bars near me,please choose us for inquiry
