2.0mm-50mm
Ruiyang
73269019
Stainless Steel 316 D Shackle made from type 316 Stainless Steel with good corrosion resistant and very durable even in the harshest conditions.316 stainless shackle can be used in towing,anchor lines,dock lines,and realted fields.
Stainless Steel 316 D Shackle Marine Grade Dee are the most commonly used to connect chains or ropes.
Stainless Shackles are classified by shape,material,size,and working load limit.There are many types of shackles and different shackle shapes are used over others for various reasons.

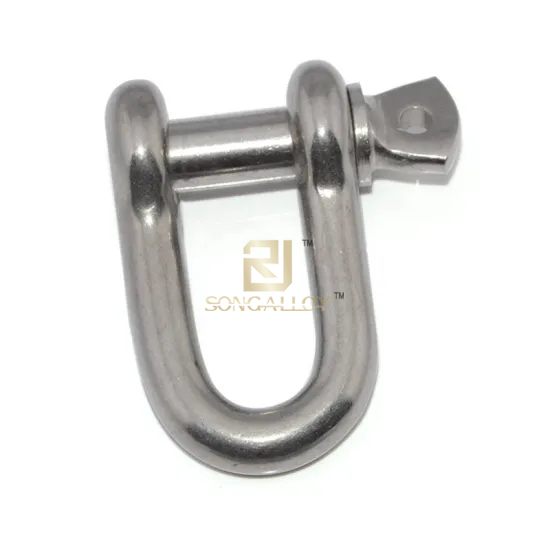

Below picture is Stainless Steel 316 Dee Shackles for your reference.
Size (in.) | WLL (t)* | A | B | C | D | E | F | G | H | L | M | N | P |
3/16 | 1/3 | .38 | .25 | .88 | .19 | .60 | .56 | .98 | 1.47 | .16 | 1.12 | -- | .19 |
1/4 | 1/2 | .47 | .31 | 1.13 | .25 | .78 | .61 | 1.28 | 1.84 | .19 | 1.38 | 1.34 | .25 |
5/16 | 3/4 | .53 | .38 | 1.22 | .31 | .84 | .75 | 1.47 | 2.09 | .22 | 1.66 | 1.59 | .31 |
3/8 | 1 | .66 | .44 | 1.44 | .38 | 1.03 | .91 | 1.78 | 2.49 | .25 | 2.03 | 1.86 | .38 |
7/16 | 1-1/2 | .75 | .50 | 1.69 | .44 | 1.16 | 1.06 | 2.03 | 2.91 | .31 | 2.38 | 2.13 | .44 |
1/2 | 2 | .81 | .63 | 1.88 | .50 | 1.31 | 1.19 | 2.31 | 3.28 | .38 | 2.69 | 2.38 | .50 |
5/8 | 3-1/4 | 1.06 | .75 | 2.38 | .63 | 1.69 | 1.50 | 2.94 | 4.19 | .44 | 2.34 | 2.91 | .69 |
3/4 | 4-3/4 | 1.25 | .88 | 2.81 | .75 | 2.00 | 1.81 | 3.50 | 4.97 | .50 | 3.97 | 3.44 | .81 |
7/8 | 6-1/2 | 1.44 | 1.00 | 3.31 | .88 | 2.28 | 2.09 | 4.03 | 5.83 | .50 | 4.50 | 3.81 | .97 |
1 | 8-1/2 | 1.69 | 1.13 | 3.75 | 1.00 | 2.69 | 2.38 | 4.69 | 6.56 | .56 | 5.07 | 4.53 | 1.06 |
1-1/8 | 9-1/2 | 1.81 | 1.25 | 4.25 | 1.16 | 2.91 | 2.69 | 5.16 | 7.47 | .63 | 5.59 | 5.13 | 1.25 |
1-1/4 | 12 | 2.03 | 1.38 | 4.69 | 1.29 | 3.25 | 3.00 | 5.75 | 8.25 | .69 | 6.16 | 5.50 | 1.38 |
1-3/8 | 13-1/2 | 2.25 | 1.50 | 5.25 | 1.42 | 3.63 | 3.31 | 6.38 | 9.16 | .75 | 6.84 | 6.13 | 1.50 |
1-1/2 | 17 | 2.38 | 1.63 | 5.75 | 1.54 | 3.88 | 3.63 | 6.88 | 10.00 | .81 | 7.35 | 6.50 | 1.62 |
1-3/4 | 25 | 2.88 | 2.00 | 7.00 | 1.84 | 5.00 | 4.19 | 8.86 | 12.34 | 1.00 | 9.08 | 7.75 | 2.25 |
2 | 35 | 3.25 | 2.25 | 7.75 | 2.08 | 5.75 | 4.81 | 9.97 | 13.68 | 1.22 | 10.34 | 8.75 | 2.40 |
2-1/2 | 55 | 4.13 | 2.75 | 10.50 | 2.71 | 7.25 | 5.69 | 12.87 | 17.84 | 1.38 | 13.00 | -- | 3.13 |
Our company is focused on stainless steel Shackle,rigging,stainless steel wire rope,stainless steel clamps,stainless steel snap hooks,stainless steel fasteners cam lock coupling,marine hardware with well-equipped testing equipment and strong technical force.
With a wide range, good quality and reasonable prices,our products are extensively used in ships,oil or water pipe line and other industries.
Also the products are widely recognized and trusted by users and can meet continuously developing economic and social needs.
If you are interested in our Stainless Steel 316 D Shackles,316 Dee Shackles and related products,please contact us freely!
