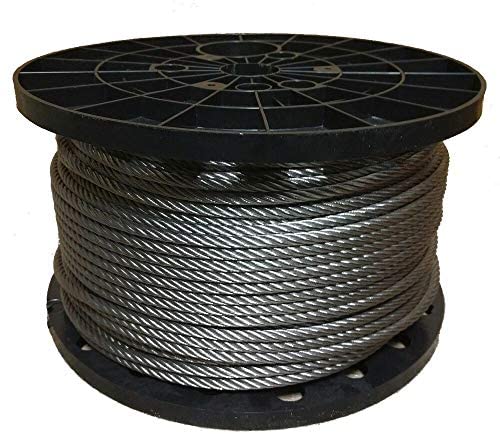

Stainless Steel 304 Cable 7x7 wire ropes from 0.5mm to 12mm,bare wire rope or coated wire rope with wire rope riggigs could supply you one stop service from our company.
stainless steel 304 cable 7x7 wire rope details | ||||
---|---|---|---|---|
constr | Dia.(mm) | Tolerance | Appro Weight(Kg/100m) | MBL/KN |
7x7 | 0.5 | ±0.080 | 0.09 | 0.14 |
0.8 | 0.25 | 0.29 | ||
1 | 0.39 | 0.56 | ||
1.2 | 0.56 | 0.81 | ||
1.5 | 0.55 | 1.27 | ||
1.8 | 1.27 | 1.83 | ||
2 | 1.57 | 2.25 | ||
2.5 | 2.45 | 3.52 | ||
3 | 3.53 | 5.07 | ||
4 | ±0.070 | 6.28 | 9.01 | |
5 | 9.82 | 14.09 | ||
6 | ±0.060 | 14.14 | 20.29 | |
8 | ±0.050 | 25.15 | 36.07 | |
10 | 39.3 | 56.36 | ||
12 | 56.59 | 81.16 |
Maybe you are puzzled 304 vs 316 stainless steel cable?what is the difference between aircraft cable and wire rope,no problem,please inform us your demand and we could slove your questions and help you get right goods with our best price and delivery.
Welcome contact us for stainless steel 304 cable 7x7 and wire rope fittings inquiry.
