M3-M36
RuiYang
810890

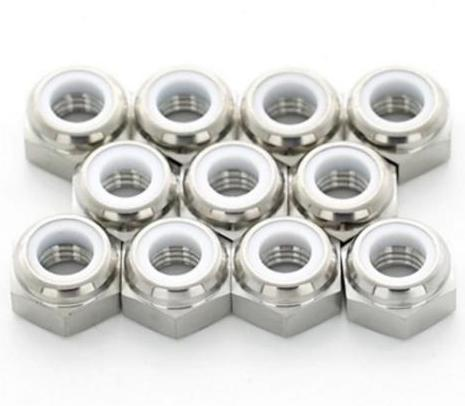

GB/T6172.2 Prevailing Torque Type Hexagon Thin Nuts-non-metalic Insert produce and supply,we will adhere to the "quality first,credibility first"business philosophy.To customer satisfaction for the purpose.
We are an audited titanium fasteners supplier by SGS and BV,with own professional factory could do soonest delivery with good quality and pretty competitive price.

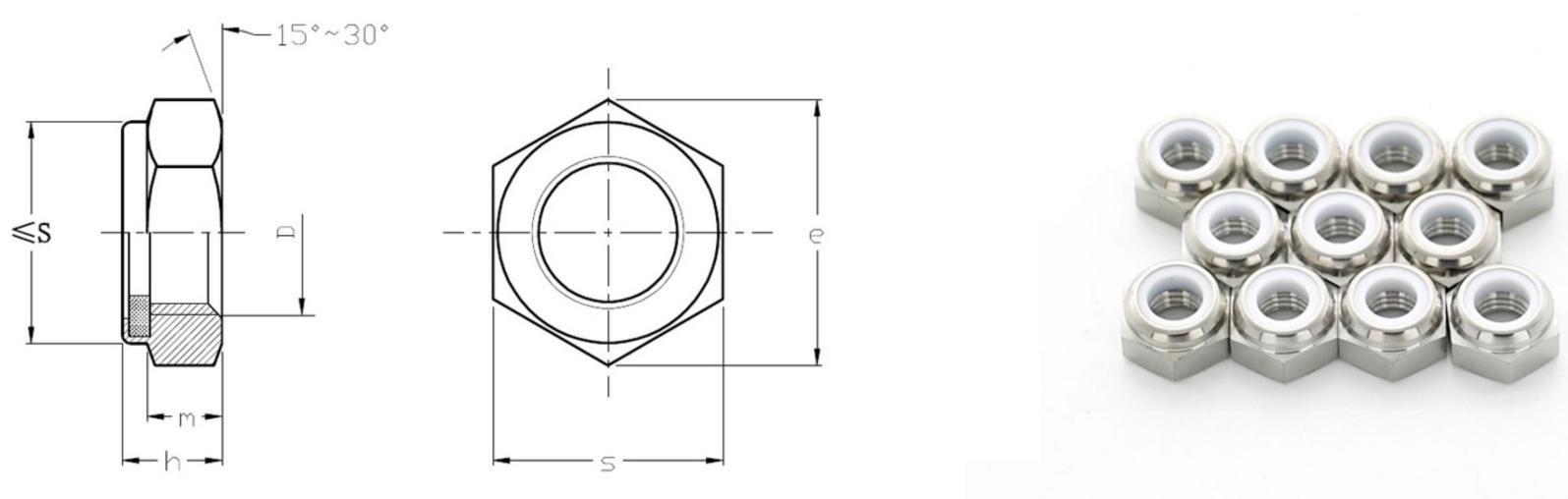

The details information of GB/T6172.2 Prevailing Torque Type Hexagon Thin Nuts-non-metalic Insert as below:
d | P | da | dw | e | h | m | mw | s | |||
pitch | max | min | min | min | max | min | min | min | max | min | |
M3 | 0.5 | 3.45 | 3.00 | 4..60 | 6.01 | 3.90 | 3.42 | 1.55 | 1.24 | 5.50 | 5.32 |
M4 | 0.7 | 4.60 | 4.00 | 5.90 | 7.66 | 5.00 | 4.52 | 1.95 | 1.56 | 7.00 | 6.78 |
M5 | 0.8 | 5.75 | 5.00 | 6.90 | 8.79 | 5.00 | 4.52 | 2.45 | 1.96 | 8.00 | 7.78 |
M6 | 1 | 6.75 | 6.00 | 8.90 | 11.05 | 6.00 | 5.52 | 2.90 | 2.32 | 10.00 | 9.78 |
M8 | 1.25 | 8.75 | 8.00 | 11.60 | 14.38 | 6.76 | 6.18 | 3.70 | 2.96 | 13.00 | 12.73 |
M10 | 1.5 | 10.80 | 10.00 | 14.60 | 17.77 | 8.56 | 7.98 | 4.70 | 3.76 | 16.00 | 15.73 |
M12 | 1.75 | 1300 | 12.00 | 16.60 | 20.03 | 10.23 | 9.53 | 5.70 | 4.56 | 18.00 | 17.73 |
（M14） | 2 | 15.10 | 14.00 | 19.60 | 23.35 | 11.32 | 10.22 | 6.42 | 5.14 | 21.00 | 20.67 |
M16 | 2 | 17.30 | 16.00 | 22.50 | 26.75 | 12.42 | 11.32 | 7.42 | 5.94 | 24.00 | 23.67 |
M20 | 2.5 | 21.60 | 20.00 | 27.70 | 32.95 | 14.90 | 13.10 | 9.10 | 7.28 | 30.00 | 29.16 |
M24 | 3 | 25.90 | 24.00 | 33.20 | 39.55 | 17.80 | 16.00 | 10.90 | 8.72 | 36.00 | 35.00 |
M30 | 3.5 | 32.40 | 30.00 | 42.80 | 50.85 | 22.20 | 20.10 | 13.90 | 11.12 | 46.00 | 45.00 |
M36 | 4 | 38.90 | 36.00 | 51.10 | 60.79 | 25.50 | 23.40 | 16.90 | 13.52 | 55.00 | 53.80 |
Our business mission is to make high quality titanium fasteners conform to GB, DIN, ASME/ANSI, ISO, UNI, JIS and other industrial standards titanium and titanium alloy fasteners,as well as non-standard,cnc parts in titanium and titanium alloy fasteners.Each fastener is tracked through strict management methods to ensure product quality.
Welcome contact us for GB/T 6172.2 Titanium Prevailing Torque Type Hexagon Thin Nuts-non-metalic Insert,and related DIN985 Titanium nuts,ISO 10511 Titanium nuts,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and order.
GB/T6172.2 Prevailing Torque Type Hexagon Thin Nuts-non-metalic Insert produce and supply,we will adhere to the "quality first,credibility first"business philosophy.To customer satisfaction for the purpose.
We are an audited titanium fasteners supplier by SGS and BV,with own professional factory could do soonest delivery with good quality and pretty competitive price.
The details information of GB/T6172.2 Prevailing Torque Type Hexagon Thin Nuts-non-metalic Insert as below:
d | P | da | dw | e | h | m | mw | s | |||
pitch | max | min | min | min | max | min | min | min | max | min | |
M3 | 0.5 | 3.45 | 3.00 | 4..60 | 6.01 | 3.90 | 3.42 | 1.55 | 1.24 | 5.50 | 5.32 |
M4 | 0.7 | 4.60 | 4.00 | 5.90 | 7.66 | 5.00 | 4.52 | 1.95 | 1.56 | 7.00 | 6.78 |
M5 | 0.8 | 5.75 | 5.00 | 6.90 | 8.79 | 5.00 | 4.52 | 2.45 | 1.96 | 8.00 | 7.78 |
M6 | 1 | 6.75 | 6.00 | 8.90 | 11.05 | 6.00 | 5.52 | 2.90 | 2.32 | 10.00 | 9.78 |
M8 | 1.25 | 8.75 | 8.00 | 11.60 | 14.38 | 6.76 | 6.18 | 3.70 | 2.96 | 13.00 | 12.73 |
M10 | 1.5 | 10.80 | 10.00 | 14.60 | 17.77 | 8.56 | 7.98 | 4.70 | 3.76 | 16.00 | 15.73 |
M12 | 1.75 | 1300 | 12.00 | 16.60 | 20.03 | 10.23 | 9.53 | 5.70 | 4.56 | 18.00 | 17.73 |
（M14） | 2 | 15.10 | 14.00 | 19.60 | 23.35 | 11.32 | 10.22 | 6.42 | 5.14 | 21.00 | 20.67 |
M16 | 2 | 17.30 | 16.00 | 22.50 | 26.75 | 12.42 | 11.32 | 7.42 | 5.94 | 24.00 | 23.67 |
M20 | 2.5 | 21.60 | 20.00 | 27.70 | 32.95 | 14.90 | 13.10 | 9.10 | 7.28 | 30.00 | 29.16 |
M24 | 3 | 25.90 | 24.00 | 33.20 | 39.55 | 17.80 | 16.00 | 10.90 | 8.72 | 36.00 | 35.00 |
M30 | 3.5 | 32.40 | 30.00 | 42.80 | 50.85 | 22.20 | 20.10 | 13.90 | 11.12 | 46.00 | 45.00 |
M36 | 4 | 38.90 | 36.00 | 51.10 | 60.79 | 25.50 | 23.40 | 16.90 | 13.52 | 55.00 | 53.80 |
Our business mission is to make high quality titanium fasteners conform to GB, DIN, ASME/ANSI, ISO, UNI, JIS and other industrial standards titanium and titanium alloy fasteners,as well as non-standard,cnc parts in titanium and titanium alloy fasteners.Each fastener is tracked through strict management methods to ensure product quality.
Welcome contact us for GB/T 6172.2 Titanium Prevailing Torque Type Hexagon Thin Nuts-non-metalic Insert,and related DIN985 Titanium nuts,ISO 10511 Titanium nuts,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and order.
