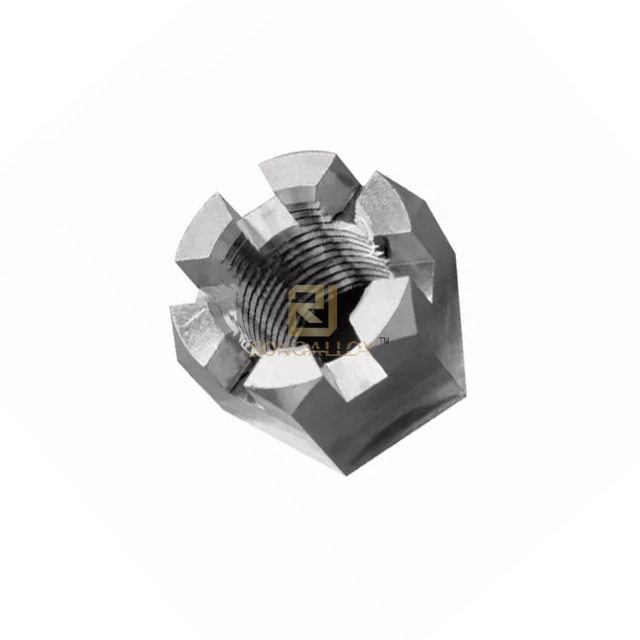

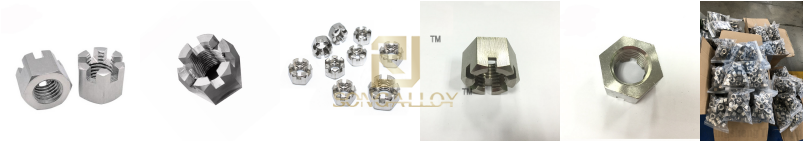

DIN935 Hexagon slotted castle nuts in titanium nuts,sizes from M4-M30MM
Titanium and Titanium alloy nuts grade:Pure Titanium Gr1-Gr3 and Titanium alloy Gr5-Gr23
DIN935 Hex slotted nuts surface:original or polished
Moq for DIN935 Nuts:each sizes 50pcs usually
Package:carton box or wooden box package

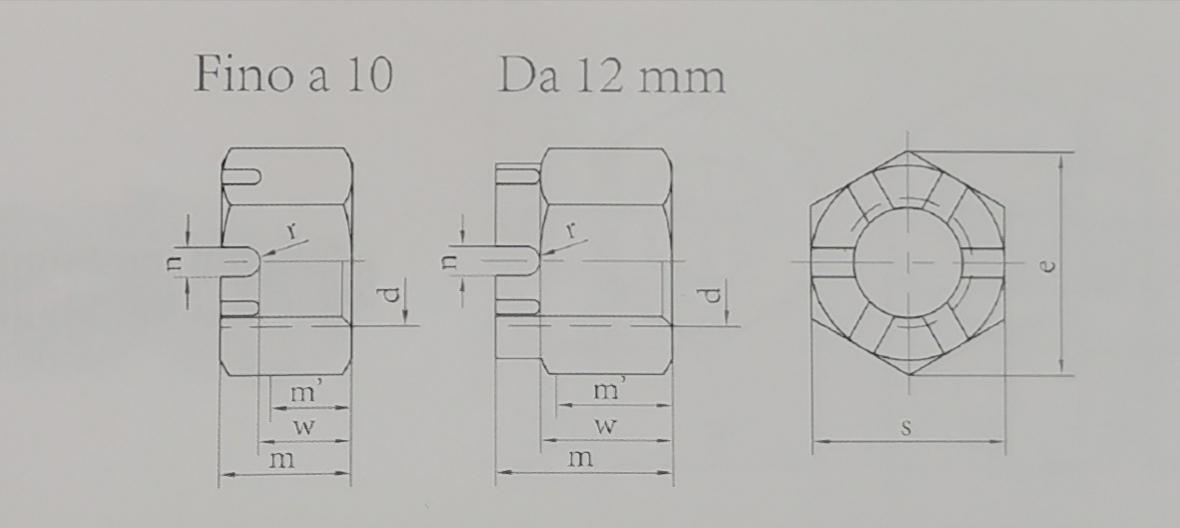

Metric DIN 935 Hexagon Slotted Castle Nuts detailed sizes as below:
Nominal thread diameter | Pitch (*)=spec pitches | diameters | Dimensions | Heights | pin | ||||||||||||
da | de | dw | e | s | m | m, | w | Seat of the Pin(n) | Dimens.of The pin(DIN ENISO1234) | ||||||||
min | max | max | min | min | min | Mon (max) | min | max | min | min | max | min | max | ||||
M4 | 0.7 | 4 | 4.6 | - | - | 5.9 | 7.66 | 7 | 6.78 | 5 | 4.7 | 2.3 | 2.9 | 3.2 | 1.2 | 1.145 | 1x10 |
M5 | 0.8 | 5 | 5.75 | - | - | 6.9 | 8.79 | 8 | 7.78 | 6 | 5.75 | 3 | 3.7 | 4 | 1.4 | 1.65 | 1.2x12 |
M6 | 1 | 6 | 6.75 | - | - | 8.9 | 11.05 | 10 | 9.78 | 7.5 | 7.14 | 3.8 | 4.7 | 5 | 2 | 2.25 | 1.6x14 |
M7 | 1 | 7 | 7.75 | - | - | 9.5 | 12.12 | 11 | 10.73 | 8 | 7.64 | 4.2 | 5.2 | 5.5 | 2 | 2.25 | 1.6x14 |
M8 | 1.25 | 8 | 8.75 | - | - | 11.6 | 14.38 | 13 | 12.73 | 9.5 | 9.14 | 4.9 | 6.14 | 6.5 | 2.5 | 2.75 | 2x16 |
1.(*) | |||||||||||||||||
M10 | 1.5 | 10 | 10.8 | - | - | 14.6 | 17.77 | 16 | 15.73 | 12 | 11.57 | 6.1 | 7.64 | 8 | 2.8 | 3.05 | 2.5x20 |
1.(*) | |||||||||||||||||
1.25(*) | |||||||||||||||||
M12 | 1.75 | 12 | 13 | 16 | 15.57 | 16.6 | 20.03 | 18 | 17.73 | 15 | 14.57 | 7.7 | 9.64 | 10 | 3.5 | 3.8 | 3.2x22 |
1.5(*) | |||||||||||||||||
1.25(*) | |||||||||||||||||
M14 | 2 | 14 | 15.1 | 18 | 17.57 | 19.6 | 23.35 | 21 | 20.67 | 16 | 15.57 | 8.2 | 10.57 | 11 | 3.5 | 3.8 | 3.2x22 |
1.5(*) | |||||||||||||||||
M16 | 2 | 16 | 17.3 | 22 | 21.48 | 22.5 | 26.75 | 24 | 23.67 | 19 | 14.48 | 9.8 | 12.57 | 13 | 4.5 | 4.8 | 4x28 |
1.5(*) | |||||||||||||||||
M18 | 2.5 | 18 | 19.5 | 25 | 24.3 | 24.9 | 29.56 | 27 | 26.16 | 21 | 20.16 | 11.2 | 14.57 | 15 | 4.5 | 4.8 | 4x32 |
1.5(*) | |||||||||||||||||
2(*) | |||||||||||||||||
M20 | 2.5 | 20 | 21.6 | 28 | 27.3 | 27.7 | 32.95 | 30 | 29.16 | 22 | 21.16 | 11.9 | 15.57 | 16 | 4.5 | 4.8 | 4x36 |
2(*) | |||||||||||||||||
1.5(*) | |||||||||||||||||
M22 | 2.5 | 22 | 23.8 | 32 | 31 | 31.4 | 37.29 | 34 | 33 | 26 | 25.16 | 13.5 | 17.57 | 18 | 5.5 | 5.8 | 5x36 |
1.5(*) | |||||||||||||||||
2(*) | |||||||||||||||||
M24 | 3 | 24 | 25.9 | 34 | 33 | 33.2 | 39.55 | 36 | 35 | 27 | 26.16 | 14.2 | 18.48 | 19 | 5.5 | 5.8 | 5x40 |
2(*) | |||||||||||||||||
M27 | 3 | 27 | 29.2 | 38 | 37 | 38 | 45.2 | 41 | 40 | 30 | 29.16 | 16.6 | 21.48 | 22 | 5.5 | 5.8 | 5x45 |
2(*) | |||||||||||||||||
M30 | 3.5 | 30 | 32.4 | 42 | 41 | 42.7 | 50.85 | 46 | 45 | 33 | 32 | 18.2 | 23.48 | 24 | 7 | 7.36 | 6.3x50 |
2(*) |
Metric DIN 935 Hexagon Slotted Castle Nuts Application:Water Treatment, Healthcare, Retail Industry, Automotive Industry
Welcome contact us for Metric DIN 935 Hexagon Slotted Castle Nuts inquiry and related titanium fasteners.
