| Quantity: | |
|---|---|
M3-M6
Ruiyang
731819

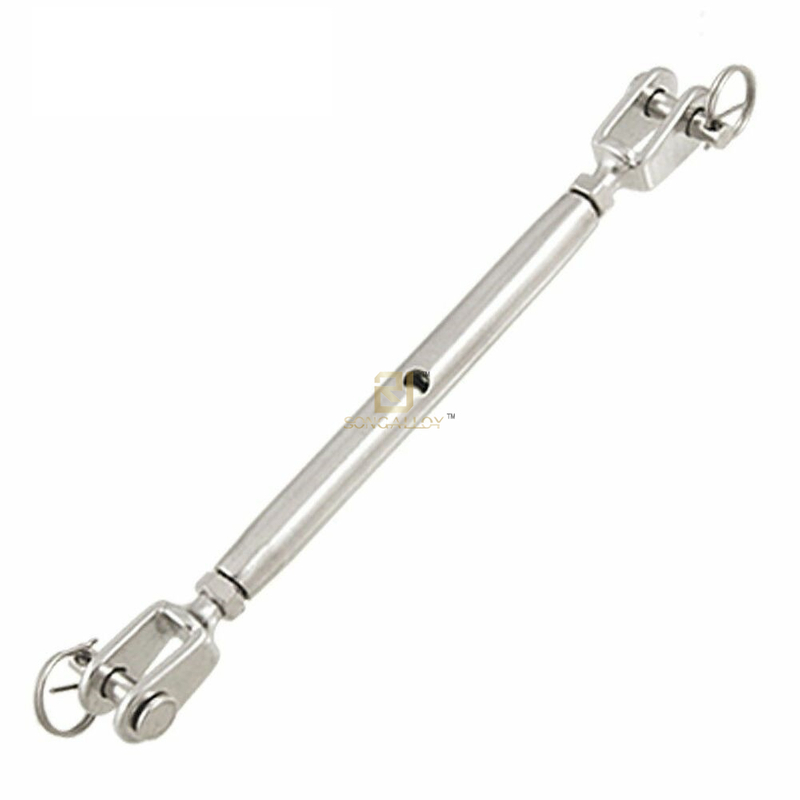

Jaw Jaw Turnbuckle Stainless Steel are a three piece assembly that consists of two jaw end fittings and a turnbuckle body. The turnbuckle body is left hand threaded on one end and right hand threaded at the opposite end.

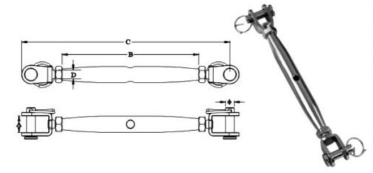

STAINLESS STEEL TURNBUCKLE,FRAME TYPE WITH NUT(JAW+JAW)
SIZE mm | Ф mm | A mm | B mm | C mm | D mm | SWL kgs | BL kgs |
5 | 5.00 | 10.50 | 80.00 | 125.00 | M5 | 189 | 750 |
6 | 6.00 | 10.50 | 92.00 | 140.00 | M6 | 350 | 1400 |
8 | 8.00 | 11.50 | 112.00 | 170.00 | M8 | 550 | 2200 |
10 | 10.00 | 15.50 | 120.00 | 190.00 | M10 | 865 | 3450 |
12 | 12.00 | 19.20 | 150.00 | 240.00 | M12 | 1250 | 5000 |
14 | 14.00 | 16.20 | 170.00 | 190.00 | M14 | 1600 | 6400 |
16 | 16.00 | 22.80 | 190.00 | 314.00 | M16 | 2000 | 8000 |
20 | 20.00 | 27.30 | 220.00 | 452.00 | M20 | 2625 | 10500 |
Jaw Jaw Turnbuckle Stainless Steel are used to create tension in cables, ropes and chains by turning the body of the buckle to take up slack. Used with rope, twine, cables and like items in tensioning systems. Suitable for marine, outdoor or general applications. Comes in eye/eye, hook/eye and jaw/jaw configurations.
1-piece per pack
Steel construction
Do not use for overhead lifting or exceed the working load limit
Welcome contact us for Jaw Jaw Turnbuckle Stainless Steel inquiry with your drawings and design,we have lots of sizes to be best suit your needs,One stop service in supply stainless steel wire rope and wire rope fittings
Jaw Jaw Turnbuckle Stainless Steel are a three piece assembly that consists of two jaw end fittings and a turnbuckle body. The turnbuckle body is left hand threaded on one end and right hand threaded at the opposite end.
STAINLESS STEEL TURNBUCKLE,FRAME TYPE WITH NUT(JAW+JAW)
SIZE mm | Ф mm | A mm | B mm | C mm | D mm | SWL kgs | BL kgs |
5 | 5.00 | 10.50 | 80.00 | 125.00 | M5 | 189 | 750 |
6 | 6.00 | 10.50 | 92.00 | 140.00 | M6 | 350 | 1400 |
8 | 8.00 | 11.50 | 112.00 | 170.00 | M8 | 550 | 2200 |
10 | 10.00 | 15.50 | 120.00 | 190.00 | M10 | 865 | 3450 |
12 | 12.00 | 19.20 | 150.00 | 240.00 | M12 | 1250 | 5000 |
14 | 14.00 | 16.20 | 170.00 | 190.00 | M14 | 1600 | 6400 |
16 | 16.00 | 22.80 | 190.00 | 314.00 | M16 | 2000 | 8000 |
20 | 20.00 | 27.30 | 220.00 | 452.00 | M20 | 2625 | 10500 |
Jaw Jaw Turnbuckle Stainless Steel are used to create tension in cables, ropes and chains by turning the body of the buckle to take up slack. Used with rope, twine, cables and like items in tensioning systems. Suitable for marine, outdoor or general applications. Comes in eye/eye, hook/eye and jaw/jaw configurations.
1-piece per pack
Steel construction
Do not use for overhead lifting or exceed the working load limit
Welcome contact us for Jaw Jaw Turnbuckle Stainless Steel inquiry with your drawings and design,we have lots of sizes to be best suit your needs,One stop service in supply stainless steel wire rope and wire rope fittings
