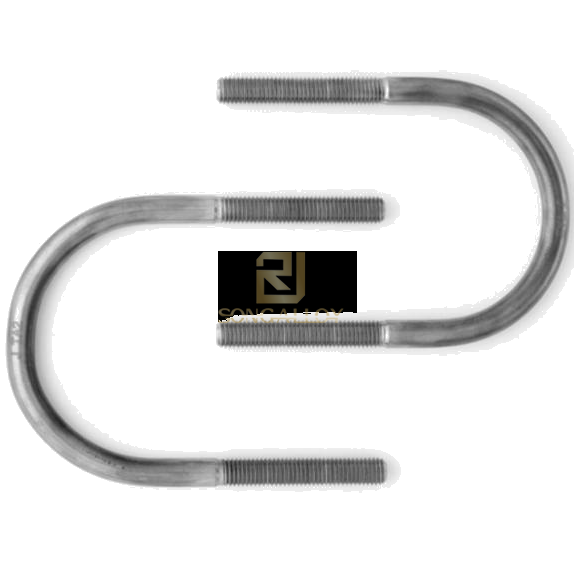

JB/ZQ4321 Titanium Bolts-Type U generally used in trucks,it is used to stabilize the chassis and frame of the car.For example,leaf springs are connected by U-bolts.Titanium U-bolts are widely used,mainly used in the fields of construction installation,mechanical parts connection,vehicles and ships,bridges,tunnels,railways,etc,also called Titanium U clamps.
Dimensions of JB/ZQ4321 Titanium Bolts-Type U as below:
Specification | d | a | R | b | n | L0 | c |
14 | M6 | 33 | 8 | 22 | 22 | 98 | 1 |
18 | M6 | 35 | 10 | 22 | 26 | 108 | 1 |
22 | M10 | 42 | 12 | 28 | 34 | 135 | 1.5 |
25 | M10 | 44 | 14 | 28 | 38 | 143 | 1.5 |
33 | M10 | 48 | 18 | 28 | 46 | 160 | 1.5 |
38 | M12 | 55 | 20 | 32 | 52 | 192 | 2 |
42 | M12 | 57 | 22 | 32 | 56 | 202 | 2 |
45 | M12 | 59 | 24 | 32 | 60 | 210 | 2 |
48 | M12 | 60 | 25 | 32 | 62 | 220 | 2 |
51 | M12 | 62 | 27 | 32 | 66 | 225 | 2 |
57 | M12 | 66 | 31 | 32 | 74 | 240 | 2 |
60 | M12 | 67 | 32 | 32 | 76 | 250 | 2 |
76 | M12 | 75 | 40 | 32 | 92 | 289 | 2 |
83 | M12 | 78 | 43 | 32 | 98 | 310 | 2 |
89 | M12 | 81 | 46 | 32 | 104 | 325 | 2 |
102 | M16 | 93 | 53 | 38 | 122 | 365 | 2 |
108 | M16 | 96 | 56 | 38 | 128 | 390 | 2 |
114 | M16 | 99 | 59 | 38 | 134 | 405 | 2 |
133 | M16 | 108 | 69 | 38 | 154 | 450 | 2 |
140 | M16 | 112 | 72 | 38 | 160 | 470 | 2 |
159 | M16 | 122 | 82 | 38 | 180 | 520 | 2 |
165 | M16 | 125 | 85 | 38 | 186 | 538 | 2 |
219 | M16 | 152 | 112 | 38 | 240 | 680 | 2 |
We could produce GB,DIN,ASME/ANSI,ISO,UNI,JIS,and other industrial standards titanium fasteners and titanium alloy fasteners,as well as non-standard titanium and titanium alloy fasteners.With professional factory best guarantee the quality and lead time,audited supplier by SGS,BV,free to buy from us.
Just mail us info@topqualityalloy.com for JB/ZQ4321 Titanium Bolts-Type U inquiry in Titanium U clamps and Titanium bolts and nuts,We could supply you one stop service in Titanium products,not only for titanium fasteners,also Titanium bars,Ti rod,titanium pipe and Ti flange,Ti pipe fittings,Ti wire rope,Ti Shackles,cnc parts.
