M3-M36
RuiYang
810890

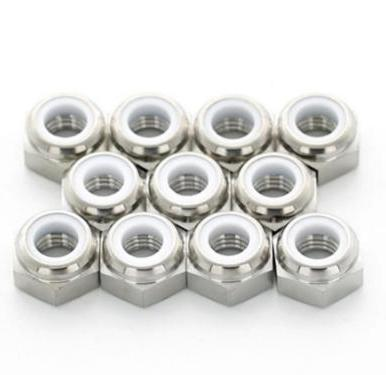

Iso 7040 Titanium Hexagon Nuts full sizes supply with soonest delivery
Titanium nuts ISO7040 Prevailing Torque Type Hexagon Nuts-Non-Metalic Insert-Style1 similar to ISO 10511 Prevailing Torque Type Hexagon Thin Nuts,different thickness,same outer hexagon width.
We are an audited Pure Titanium revivets and titanium bolts nuts supplier with mature entrepreneurial management,professional R&D team,advanced manufacturing technology,and hope to supply our clients right goods with best price.

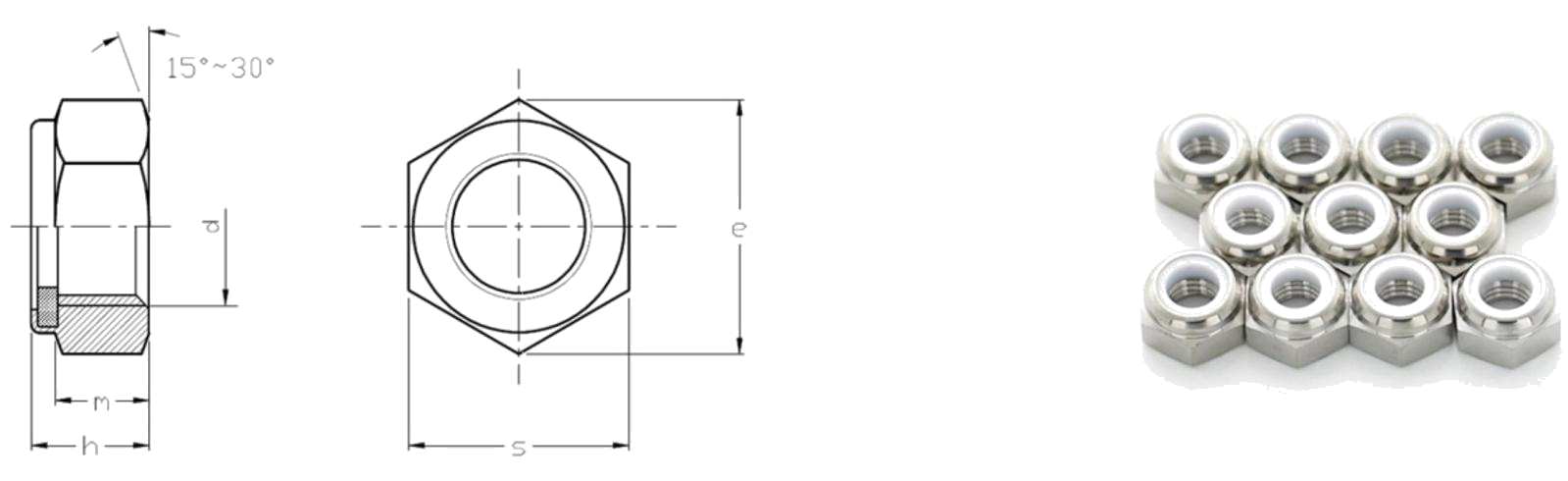

Iso 7040 Titanium Hexagon Nuts Dimension-Prevailing Torque Type Hexagon Nuts-Non-Metalic Insert-Style1 shows:
D | M3 | M4 | M5 | M6 | M8 | M10 | M12 | （M14） | M16 | M20 | M24 | M30 | M36 | |
P | Pitch | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 3 | 3.5 | 4 |
da | max | 3.45 | 4.60 | 5.75 | 6.75 | 8.75 | 10.80 | 13.00 | 15.10 | 17.30 | 21.60 | 25.90 | 32.40 | 38.90 |
min | 3.00 | 4.00 | 5.00 | 6.00 | 8.00 | 10.00 | 12.00 | 14.00 | 16.00 | 20.00 | 24.00 | 30.00 | 36.00 | |
dw | min | 4.57 | 5.88 | 6.88 | 8.88 | 11.63 | 14.63 | 16.63 | 19.64 | 22.49 | 27.70 | 33.25 | 42.75 | 51.11 |
e | min | 6.01 | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 32.95 | 39.55 | 50.85 | 60.79 |
h | max | 4.5 | 6.00 | 6.8 | 8.00 | 9.5 | 11.9 | 14.9 | 17.00 | 19.1 | 22.8 | 27.1 | 32.6 | 38.9 |
min | 4.02 | 5.52 | 6.22 | 7.42 | 8.92 | 11.2 | 14.2 | 15.9 | 17.8 | 20.7 | 25.0 | 30.1 | 36.4 | |
m | min | 2.15 | 2.9 | 4.4 | 4.9 | 6.44 | 8.04 | 10.37 | 12.1 | 14.1 | 16.9 | 20.2 | 24.3 | 29.4 |
mw | min | 1.72 | 2.32 | 3.52 | 3.92 | 5.15 | 6.43 | 8.30 | 9.68 | 11.28 | 13.52 | 16.16 | 19.44 | 23.52 |
s | max | 5.5 | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 30 | 36 | 46 | 55 |
min | 5.32 | 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 29.16 | 35 | 45 | 53.8 | |
We supply high quality titanium fasteners conform to GB, DIN, ASME/ANSI, ISO,UNI, JIS and other industrial fasteners and special fasteners in titanium and titanium alloy fasteners,as well as non-standard,cnc parts,Every fastener is tracked through strict management methods to ensure product quality.
Welcome contact us buy ISO7040 titanium hexagon nuts-Prevailing Torque Type-Non-Metalic Insert-Style1 and related titanium fasteners,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and order.
