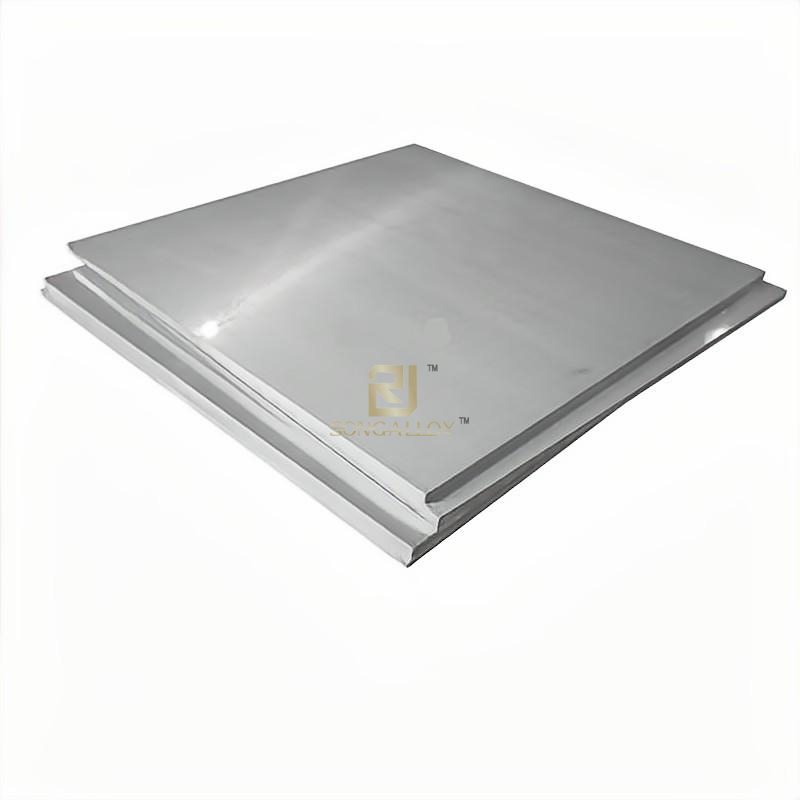

Nickel alloy plate alloy 718 plate inconel 718 plate suppliers produce and supply here.
718 Strip sizes: 0.05*5.0-5.0*250mm
Inconel 718 plate and 718 Sheet sizes: δ 0.8-36mm;Width 650-2000mm;Length 800-4500mm
Where to buy Inconel 718 plate and inconel 718 sheets in China,please mail to info@topqualityalloy.com for inquiry
Nickel alloy 718 plate inconel 718 plate and 719 nickel alloy sheets chemical composition as below in table
| elements | % | Ni | Cr | Fe | Mo | Nb | CO | C | Mn | Si | S | Cu | Al | Ti | P | B |
ALLOY 718 sheets | min | 50 | 17 | balance | 2.8 | 4.75 | - | - | - | - | - | - | 0.2 | 0.65 | - | - |
max | 55 | 21 | balance | 3.3 | 5.5 | 1 | 0.08 | 0.35 | 0.35 | 0.015 | 0.3 | 0.8 | 1.15 | 0.015 | 0.06 |
718 nickel alloy plate and sheets physical properties
melting points | density | Alloy supplied condition;State | Tensile Strength | yield strength | ratio of elongation | Brinell Hardness BH |
1260-1340℃ | 8.24G/CM³ | solution treatment | RMN/MM² | RP0.2N/MM² | A5% | HB |
<965 | 550 | 30 | ≤363 | |||
solution and aging | ≥1275 | ≥1034 | ≥12% | ≥331 |
Inconel 718 plate with high impact,tensile and rupture strength,718 plate with an invaluable combination of durability and weldability,also could withstand a wide range of temperature extremes and alloy 718 plate be trusted for both cryogenic and high-heat applications.
If 718 plate and 718 sheets be made to 718 alloy welded tubes,the welded 718 tubes also have excellent Corrosion resistance resistance to stress corrosion cracking and pitting at both high and low temperatures.The oxidation resistance of 718 alloy is especially excellent at high temperature.
Metallographic structure 718 alloy has austenitic structure,and the Y phase formed after precipitation and hardening gives it excellent mechanical properties. The best ductility is achieved by the formation of △ phase at grain boundaries during heat treatment.Due to high temperature strength and excellent corrosion resistance at 700℃,easy to process, the 718 tubing can be widely used in a variety of demanding applications
Alloy 718 is an super-alloy,Inconel 718 plate widely used in many industries because alloy 718 sheets are ideal for hot extrusion tooling and parts like 718 rings,718 alloy fasteners,718 casings,718 bolts and instrumentation components.
Inconel 718 plates frequently be used in fabricating aerospace,aircraft and other related components,such as Cryogenic storage tanks,Turbines,Down-hole shafting parts,Well head parts,Rocket components and Nuclear fuel parts,Aircraft engine components.
Alloy 718 could be formed not only 718 plate,Inconel 718 sheet,also 718 round bars and forgings parts like 718 flanges,welcome contact us for inconel 718 plate and 718 sheets inquiry.
