DN25-3000
Ruiyang

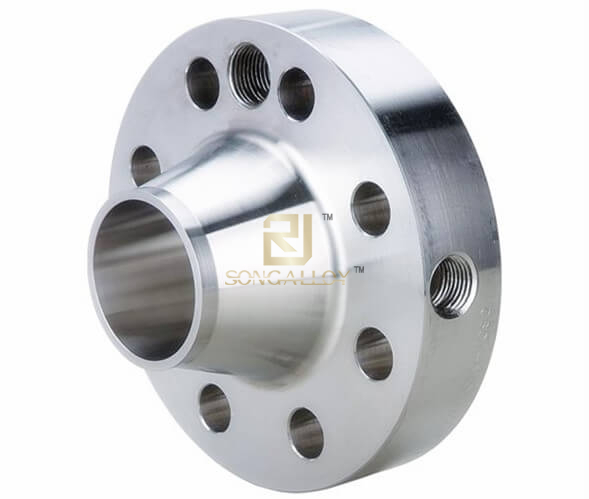

Inconel 718 Flanges like stainless steel flanges,nickel flanges always follow the ANSI B16.5 Flanges standard,sae flanges,din flanges and En flanges,Jis standards,just the material is alloy 718,also pipe flanges,usually used in pairs connected with the pipe fittings and valves in industrial usage
| ALLOY (UNS) | NI | FE | SI | C | S | MG | AL | TI | CR | MO | NB & TA | CO | P | B | CU |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
N07718 | 50.0 – 55.0 | BALANCE | 0.35 MAX | 0.08 MAX | 0.015 MAX | 0.35 MAX | 0.20 – 0.80 | 0.65 – 1.15 | 17.0 – 21.0 | 2.80 – 3.30 | 4.75 – 5.50 | 1.0 MAX | 0.015 MAX | 0.006 MAX | 0.006 0.30 MAX |
Alloy 718 flanges types:BL,PL,SO,WN,LWN,SAE type or as per clients design
Working pressure follow the 0.1-25mpa usually
Sealing surface FF,MF,RTJ,etc
The key of the alloy 718 flanges inconel 718 forged flanges are center distance of the bolts wholes,the next is the sealing surface,just choose the right flange type,could be installed easily,surface good will be fine
Due to the nickel alloy 718 own charactors,it is with good resistant corrosion and weldblity in special fields like chemical indurstrials
Welcome contact us for alloy 718 flanges,forged inconel 718 flanges all type follow your design,related nickel flanges we could could supply you one stop service,even alloy 718 stud bolts and nuts joint with the flanges and valves.
Inconel 718 Flanges like stainless steel flanges,nickel flanges always follow the ANSI B16.5 Flanges standard,sae flanges,din flanges and En flanges,Jis standards,just the material is alloy 718,also pipe flanges,usually used in pairs connected with the pipe fittings and valves in industrial usage
| ALLOY (UNS) | NI | FE | SI | C | S | MG | AL | TI | CR | MO | NB & TA | CO | P | B | CU |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
N07718 | 50.0 – 55.0 | BALANCE | 0.35 MAX | 0.08 MAX | 0.015 MAX | 0.35 MAX | 0.20 – 0.80 | 0.65 – 1.15 | 17.0 – 21.0 | 2.80 – 3.30 | 4.75 – 5.50 | 1.0 MAX | 0.015 MAX | 0.006 MAX | 0.006 0.30 MAX |
Alloy 718 flanges types:BL,PL,SO,WN,LWN,SAE type or as per clients design
Working pressure follow the 0.1-25mpa usually
Sealing surface FF,MF,RTJ,etc
The key of the alloy 718 flanges inconel 718 forged flanges are center distance of the bolts wholes,the next is the sealing surface,just choose the right flange type,could be installed easily,surface good will be fine
Due to the nickel alloy 718 own charactors,it is with good resistant corrosion and weldblity in special fields like chemical indurstrials
Welcome contact us for alloy 718 flanges,forged inconel 718 flanges all type follow your design,related nickel flanges we could could supply you one stop service,even alloy 718 stud bolts and nuts joint with the flanges and valves.
