3-300mm
Ruiyang
7507
We are one of the inconel 718 bars suppliers in China,When you need nickel alloy 718 bar price or buy inconel 718 round bars,please contact us for inquiry
Inconel 718 (N07718) also called Alloy 718 is an iron-nickel-chromium-based precipitation hardening nickel super alloy,combines superior corrosion resistance and strength with high weldability,The long-term service temperature range is -253 ~ 650°C and the short-term service temperature is 800°C.Alloy 718 has high strength and good toughness below 650°C.The unique formulation of Inconel 718 increases strength and corrosion resistance while providing easy machinability and ease of weldability.
Inconel 718 alloy has been used to manufacture 718 rings, 718 blades,718 bolts and nuts standard parts and structural parts in the aerospace,aerospace and energy industries.
Inconel 718 bars chemical composition as below in table
| Inconel 718 bars chemical components details | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| elements | % | Ni | Cr | Fe | Mo | Nb | CO | C | Mn | Si | S | Cu | Al | Ti | P | B |
ALLOY 718 sheets | min | 50 | 17 | balance | 2.8 | 4.75 | - | - | - | - | - | - | 0.2 | 0.65 | - | - |
max | 55 | 21 | balance | 3.3 | 5.5 | 1 | 0.08 | 0.35 | 0.35 | 0.015 | 0.3 | 0.8 | 1.15 | 0.015 | 0.06 | |
718 nickel alloy bars physical properties as below:
melting points | density | Alloy supplied condition;State | Tensile Strength | yield strength | ratio of elongation | Brinell Hardness BH |
1260-1340℃ | 8.24G/CM³ | solution treatment | RMN/MM² | RP0.2N/MM² | A5% | HB |
<965 | 550 | 30 | ≤363 | |||
solution and aging | ≥1275 | ≥1034 | ≥12% | ≥331 |

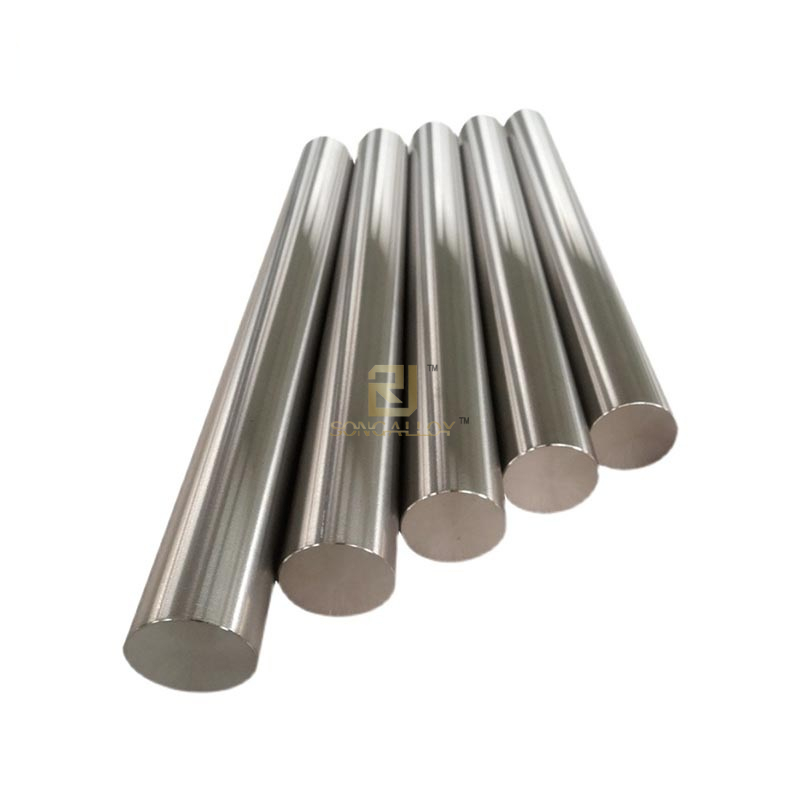

Nickel alloy 718 Bars shapes could be in forged rings,718 rounds,718 squares bars and rectangular flat bars,welcome contact us for Inconel 718 bars inquiry and order.
We are one of the inconel 718 bars suppliers in China,When you need nickel alloy 718 bar price or buy inconel 718 round bars,please contact us for inquiry
Inconel 718 (N07718) also called Alloy 718 is an iron-nickel-chromium-based precipitation hardening nickel super alloy,combines superior corrosion resistance and strength with high weldability,The long-term service temperature range is -253 ~ 650°C and the short-term service temperature is 800°C.Alloy 718 has high strength and good toughness below 650°C.The unique formulation of Inconel 718 increases strength and corrosion resistance while providing easy machinability and ease of weldability.
Inconel 718 alloy has been used to manufacture 718 rings, 718 blades,718 bolts and nuts standard parts and structural parts in the aerospace,aerospace and energy industries.
Inconel 718 bars chemical composition as below in table
| Inconel 718 bars chemical components details | ||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| elements | % | Ni | Cr | Fe | Mo | Nb | CO | C | Mn | Si | S | Cu | Al | Ti | P | B |
ALLOY 718 sheets | min | 50 | 17 | balance | 2.8 | 4.75 | - | - | - | - | - | - | 0.2 | 0.65 | - | - |
max | 55 | 21 | balance | 3.3 | 5.5 | 1 | 0.08 | 0.35 | 0.35 | 0.015 | 0.3 | 0.8 | 1.15 | 0.015 | 0.06 | |
718 nickel alloy bars physical properties as below:
melting points | density | Alloy supplied condition;State | Tensile Strength | yield strength | ratio of elongation | Brinell Hardness BH |
1260-1340℃ | 8.24G/CM³ | solution treatment | RMN/MM² | RP0.2N/MM² | A5% | HB |
<965 | 550 | 30 | ≤363 | |||
solution and aging | ≥1275 | ≥1034 | ≥12% | ≥331 |
Nickel alloy 718 Bars shapes could be in forged rings,718 rounds,718 squares bars and rectangular flat bars,welcome contact us for Inconel 718 bars inquiry and order.
