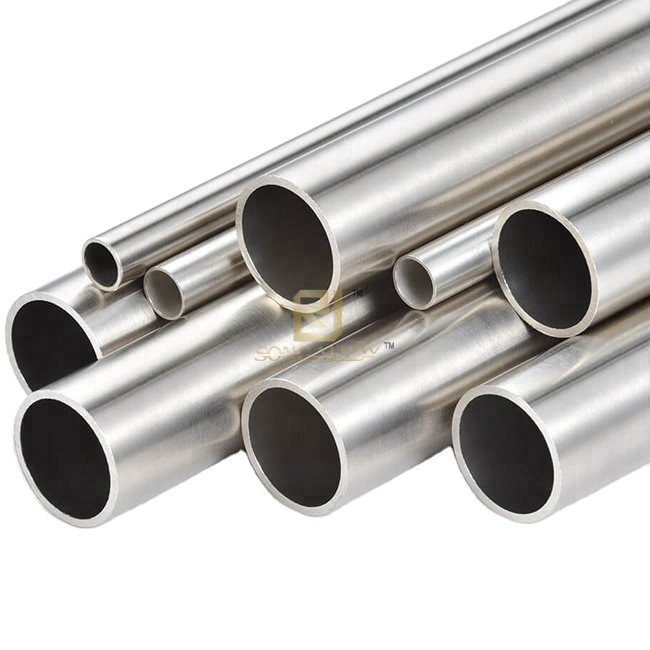

We are one of the Inconel 601 Pipe and Inconel 601 tube supplier,could supply you seamless 601alloy pipe and welded pipe sizes customed
When you buy ASME SB167 inconel 601 Round Pipe,buy ASTM B167 inconel 601 Seamless Pipe supplier,Buy Inconel DIN NR. 2.4851 alloy 601 pipes,please refer our details as below in table
| inconel 601 alloy pipes details | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|
| Sizes: | OD1/8''-72inch seamless and welded,wall thickness sch5-xxs or customed | |||||||||
| Length | cutting to length as per clients required | |||||||||
| Inconel 601 composition | Ni | Cr | C | Mn | Fe | Si | Cu | P | S | Al |
| Balance | 21-25 | 0.1max | 1.0 max | 10-15 | 0.5max | 1.0max | 0.03max | 0.015max | 1-1.7 | |
| physical constants | Inconel 601 Pipe Density | Melting Range | ||||||||
| 8.1g/cm3 | 1320-1370 ℃ | |||||||||
601 alloy pipe mechanical properties | supply condition | Rm Mpa | Rp Mpa | A5% | HB | |||||
| Annealing | 650 | 300 | 30 | - | ||||||
| solution | 600 | 240 | 30 | 220 max | ||||||
The alloy 601 and 601 alloy tubes has the following features:
Have excellent oxidation resistance at high temperature.
Good resistance to carbonation
Can be a very good resistance to oxidation sulfur atmosphere
At room temperature and has good mechanical properties at high temperature
good resistance to stress corrosion cracking performance due to control the carbon content and grain size, 601 has high PAM variable fracture strength
Inconel 601 British nair metallographic structure:601 is face-centered cubic lattice structure.
Inconel 601 pipe corrosion resistance:601 alloy is an important performance in temperature as high as 1180 ℃ has the oxidation resistance. Even in very harsh conditions, such as in the process of heating and cooling cycle, 601 can generate a dense layer of oxide film and high resistance to spalling. Good carbonization resistance of 601. Due to the high content of aluminum, aluminum, 601 in high temperature sulfur atmosphere has the very good oxidation resistance. 601 alloy is an important performance in temperature as high as 1180 ℃ has the oxidation resistance. Even in very harsh conditions, such as in the process of heating and cooling cycle,Alloy 601 can generate a dense layer of oxide film and high resistance to spalling. Good carbonization resistance of 601.Due to the high content of aluminum, aluminum,alloy 601 in high temperature sulfur atmosphere has the very good oxidation resistance.
Inconel 601 pipe and 601 alloy pipe application
Heat treatment factories with tray, basket and fixture.
Steel wire annealing and radiant tube, high-speed gas burner, the mesh belt furnace
The isolation tank of gas reforming and catalytic supported lattice for production of nitric acid
The exhaust system components
solid waste incinerator combustion chamber
pipe supports and ash handling department
Related nickel alloy UNS N10001, N10665, N10675, N06455, N06022, N10276, N06200, N06035, N06030, N06635, N10003, N06002, R30188, N06230, R30556 : UNS N06600, N06601, N06617, N06625, N07718, N07750, N08800, N08810, N08811, N08825, N09925, N08926 : UNS N04400, N05500
Precipitation-hardening Steels: 254SMO/S31254, 17-4PH, 17-7PH, 15-7PH
Nickel: N4/UNS N02201, N6/UNS N02200 pipes we also supply,welcome contact us for Inconel 601 pipe inquiry and order.
