M8-M24
RuiYang
810890

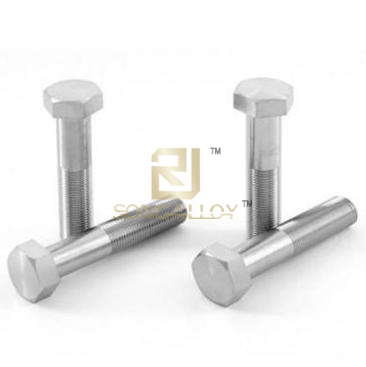

The benefit of ISO8676 Titanium Hexagon Bolts-Fine Pitch Full Thread is the saving of nuts.It doesn't need a nut like a machine screw.This is better for customers to save costs.The helix angle of the fine thread is small,which is conducive to the self-locking of the thread,so the fine thread screw is generally used in the occasions that need to prevent loosening. The fine thread has a small pitch, and on the same thread length,more threads can be screwed in,which can reduce fluid leakage,so it is used in applications where sealing is required.
The ISO8676 fine pitch thread titanium bolts also plays the role of fine-tuning because of the small pitch.The fine thread screw has good self-locking ability, large bottom diameter and good static load capacity.

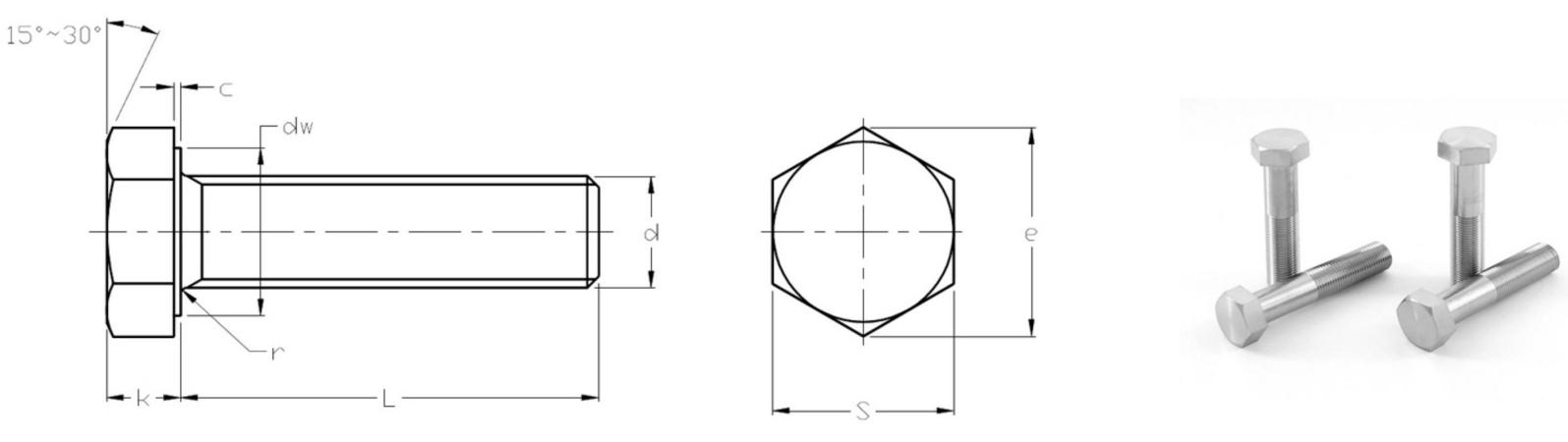

ISO8676 Hexagon Bolts-Fine Pitch Full Thread bolts standard and drawings as below:
d | M8 | M10 | （M10） | M12 | （M12） | （M14） | M16 | （M18） | M20 | （M20） | （M22） | M24 | ||
P | Pitch | 1 | 1 | 1.25 | 1.5 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 1.5 | 2 | |
a | max | 3 | 3 | 4 | 4.5 | 4 | 4.5 | 4.5 | 4.5 | 4.5 | 6 | 4.5 | 6 | |
min | 1 | 1 | 1.25 | 1.5 | 1.25 | 1.5 | 1.5 | 1.5 | 1.5 | 2 | 1.5 | 2 | ||
c | max | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | |
min | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | 0.2 | ||
da | max | 9.2 | 11.2 | 11.2 | 13.7 | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 | 22.4 | 24.4 | 26.4 | |
dw | GrA | min | 11.63 | 14.63 | 14.63 | 16.63 | 16.63 | 19.64 | 22.49 | 25.34 | 28.19 | 28.19 | 31.71 | 33.61 |
GrB | min | 11.47 | 14.47 | 14.47 | 16.47 | 16.47 | 19.15 | 22 | 24.85 | 27.7 | 27.7 | 31.35 | 33.25 | |
e | GrA | min | 14.38 | 17.77 | 17.77 | 20.03 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 | 33.53 | 37.72 | 39.98 |
GrB | min | 14.2 | 17.59 | 17.59 | 19.85 | 19.85 | 22.78 | 26.17 | 29.56 | 32.95 | 32.95 | 37.29 | 39.55 | |
k | DN | 5.3 | 6.4 | 6.4 | 7.5 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | 12.5 | 14 | 15 | |
GrA | max | 5.45 | 6.58 | 6.58 | 7.68 | 7.68 | 8.98 | 10.18 | 11.715 | 12.715 | 12.715 | 14.215 | 15.215 | |
min | 5.15 | 6.22 | 6.22 | 7.32 | 7.32 | 8.62 | 9.82 | 11.285 | 12.285 | 12.285 | 13.785 | 14.785 | ||
GrB | max | 5.54 | 6.69 | 6.69 | 7.79 | 7.79 | 9.09 | 10.29 | 11.85 | 12.85 | 12.85 | 14.35 | 15.35 | |
min | 5.06 | 6.11 | 6.11 | 7.21 | 7.21 | 8.51 | 9.71 | 11.15 | 12.15 | 12.15 | 13.65 | 14.65 | ||
K1 | GrA | min | 3.61 | 4.35 | 4.35 | 5.12 | 5.12 | 6.03 | 6.87 | 7.9 | 8.6 | 8.6 | 9.65 | 10.35 |
GrB | min | 3.54 | 4.28 | 4.28 | 5.05 | 5.05 | 5.96 | 6.8 | 7.81 | 8.51 | 8.51 | 9.56 | 10.26 | |
r | min | 0.4 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | 0.8 | |
s | max=DN | 13 | 16 | 16 | 18 | 18 | 21 | 24 | 27 | 30 | 30 | 34 | 36 | |
GrA | min | 12.73 | 15.73 | 15.73 | 17.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | 29.67 | 33.38 | 35.38 | |
GrB | min | 12.57 | 15.57 | 15.57 | 17.57 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | 29.16 | 33 | 35 | |
We are an audited Titanium fasteners supplier by SGS and BV,also supply stainless steel hex bolts and related fasteners and screws.Specialize in this field for many years with own professional factory could do soonest delivery with good quality and pretty competitive price.
Welcome contact us to buy ISO8676Titanium Hexagon Bolts-Fine Pitch Full Thread bolts,please mail us info@topqualityalloy.com with necessary sizes,material grade and quantity for inquiry and order.
