M5-M16
RuiYang
810890

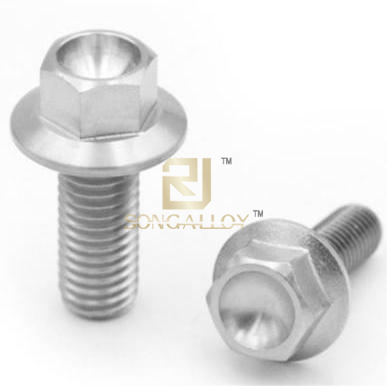

ISO4162 Titanium Hexagon Flange Bolts-Small Series related DIN 6921 flanges bolts are used in titanium machinery,titanium equipment,titanium vehicles,ships,railways,Bridges,buildings,Ti structures,Ti tools,instruments.
ISO4162 Flanges bolts as an industrial appliance,it is widely used because of its characteristics of precise decoration and strong endurance. It is widely used in highway and railway bridges,including industrial and civil buildings, cranes,excavators and other heavy machinery.
Our production in titanium fasteners and alloyed titanium fasteners including the GB,DIN,ASME/ANSI,ISO,UNI,JIS standards and other industrial standards,as well as non-standard titanium and titanium alloy fasteners.

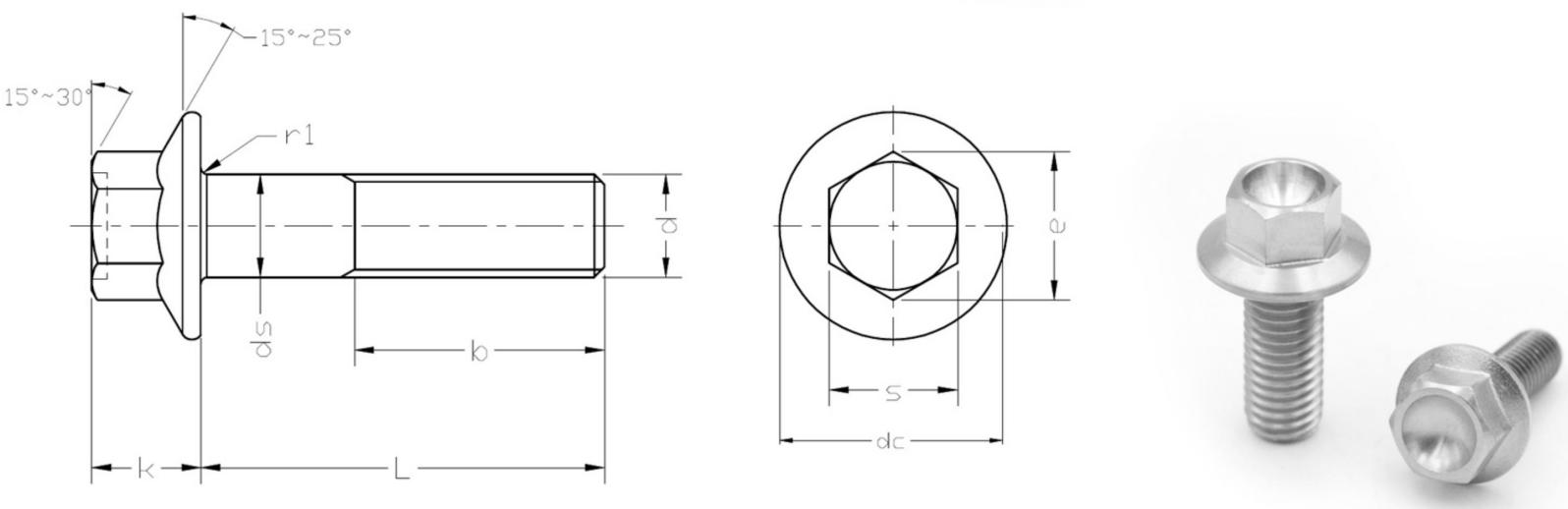

ISO4162 Titanium Hexagon Flange Bolts-Small Series detailed drawings and sizes as below in below:
d | M5 | M6 | M8 | M10 | M12 | （M14） | M16 | |
P | Pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 |
b | L≤125 | 16 | 18 | 22 | 26 | 30 | 34 | 38 |
125＜L≤200 | - | - | 28 | 32 | 6 | 40 | 44 | |
L＞200 | - | - | - | - | - | - | 57 | |
dc | max | 11.4 | 13.6 | 17 | 20.8 | 24.7 | 28.6 | 32.8 |
ds | max | 5 | 6 | 8 | 10 | 12 | 14 | 16 |
min | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | |
e | min | 7.44 | 8.56 | 10.8 | 14.08 | 16.32 | 19.68 | 22.58 |
k | max | 5.6 | 6.8 | 8.5 | 9.7 | 11.9 | 12.9 | 15.1 |
s | max | 7 | 8 | 10 | 13 | 15 | 18 | 21 |
min | 6.64 | 7.64 | 9.64 | 12.57 | 14.57 | 17.57 | 20.16 | |
All our products we make sure good quality and everything we do try to meet our customer satisfaction 100%.
Welcome contact us buy ISO4162 Titanium Hexagon Flange Bolts-Small Series inquiry and order.Ruiyang company could supply you one stop service in titanium fasteners,titanium bolts and nuts products,also stainless steel fasteners for choice.Just mail to info@topqualityalloy.com for our cooperation.
