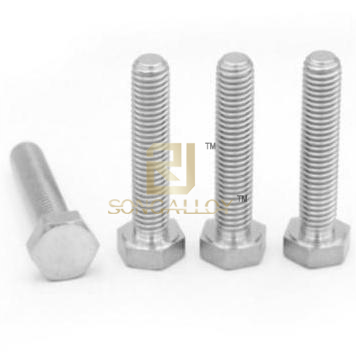

ISO4017 Titanium Hexagon Head Bolts like DIN933 Full thread titanium bolts supply
The ISO4017 Ti Hexagon Head Bolts is a matching Ti nut,which is used to fasten and connect two connected parts and components with through holes.
Ti bolt ISO4017 Hexagon Head Bolts-Full Thread-Product Grade A And B widely used in the production,installation and maintenance of various mechanical equipment,electronic products,communication equipment,even in furniture equipment,construction and other industries.
We are an audited Titanium fasteners supplier by SGS and BV,also supply stainless steel bolts and related ss fasteners and ss screws,with own professional factory could do soonest delivery with right quality and best factory competitive price.

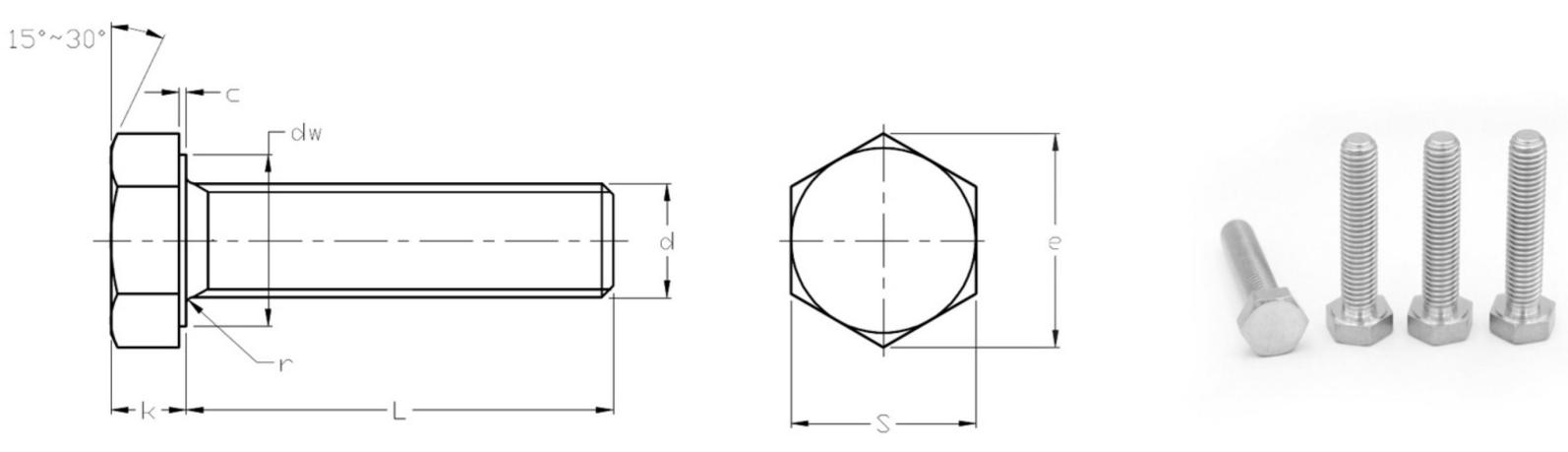

ISO4017 Titanium Hexagon Head Bolts-Full Thread-Product GradeA And B Dimension and drawings shown as below:
d | M1.6 | M2 | M2.5 | M3 | （M3.5） | M4 | M5 | M6 | M8 | M10 | M12 | （M14） | M16 | （M18） | M20 | ||
P | Pitch | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | |
a | max | 1.05 | 1.2 | 1.35 | 1.5 | 1.8 | 2.1 | 2.4 | 3 | 4 | 4.5 | 5.3 | 6 | 6 | 7.5 | 7.5 | |
min | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 2.5 | ||
c | max | 0.25 | 0.25 | 0.25 | 0.4 | 0.4 | 0.4 | 0.5 | 0.5 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | 0.8 | 0.8 | |
min | 0.1 | 0.1 | 0.1 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.15 | 0.2 | 0.2 | 0.2 | ||
da | max | 2 | 2.6 | 3.1 | 3.6 | 4.1 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 20.2 | 22.4 | |
dw | GrA | min | 2.27 | 3.07 | 4.07 | 4.57 | 5.07 | 5.88 | 688 | 8.88 | 11.63 | 14.63 | 16.63 | 19.64 | 22.49 | 25.34 | 28.19 |
GrB | min | 2.3 | 2.95 | 3.95 | 4.45 | 4.95 | 5.74 | 6.74 | 8.74 | 11.47 | 14.47 | 16.47 | 19.15 | 22 | 24.85 | 27.7 | |
e | GrA | min | 3.41 | 4.32 | 5.45 | 6.01 | 6.58 | 7.66 | 8.79 | 11.05 | 14.38 | 17.77 | 20.03 | 23.36 | 26.75 | 30.14 | 33.53 |
GrB | min | 3.28 | 4.18 | 5.31 | 588 | 6.44 | 7.5 | 8.63 | 10.89 | 14.2 | 17.59 | 19.85 | 22.78 | 26.17 | 29.56 | 32.95 | |
k | DN | 1.1 | 1.4 | 1.7 | 2 | 2.4 | 2.8 | 3.5 | 4 | 5.3 | 64 | 7.5 | 8.8 | 10 | 11.5 | 12.5 | |
GrA | max | 1.225 | 1.525 | 1.825 | 2.125 | 2.525 | 2.925 | 3.65 | 4.15 | 5.45 | 6.58 | 7.68 | 8.98 | 10.18 | 11.715 | 12.715 | |
min | 0.975 | 1.275 | 1.575 | 1.875 | 2.275 | 2.675 | 3.35 | 3.85 | 5.15 | 6.22 | 7.32 | 8.62 | 9.82 | 11.285 | 12.285 | ||
GrB | max | 1.3 | 1.6 | 1.9 | 2.2 | 2.6 | 3 | 3.74 | 4.24 | 5.54 | 6.69 | 7.79 | 9.09 | 10.29 | 11.85 | 12.85 | |
min | 0.9 | 1.2 | 1.5 | 1.8 | 2.2 | 2.6 | 3.26 | 3.76 | 5.06 | 6.11 | 7.21 | 8.51 | 9.71 | 11.15 | 12.15 | ||
k1 | GrA | min | 0.68 | 0.89 | 1.1 | 1.31 | 1.59 | 1.87 | 2.35 | 2.7 | 3.61 | 4.35 | 5.12 | 6.03 | 6.87 | 7.9 | 8.6 |
GrB | min | 0.63 | 0.84 | 1.05 | 1.26 | 1.54 | 1.82 | 2.28 | 2.63 | 3.54 | 4.28 | 5.05 | 5.96 | 6.8 | 7.81 | 8.51 | |
r | min | 0.1 | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.6 | 0.8 | |
s | DN | 3.2 | 4 | 5 | 5.5 | 6 | 7 | 8 | 10 | 13 | 16 | 18 | 21 | 24 | 27 | 30 | |
GrA | min | 3.02 | 3.82 | 4.82 | 5.32 | 5.82 | 6.78 | 7.78 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 26.67 | 29.67 | |
GrB | min | 2.9 | 3.7 | 4.7 | 5.2 | 5.7 | 6.64 | 7.64 | 9.64 | 12.57 | 15.57 | 17.57 | 20.16 | 23.16 | 26.16 | 29.16 | |
Welcome mail us info@topqualityalloy.com to buy ISO4017 Titanium Hexagon Head Bolts-Full Thread-Product Grade A And B,Once we got your details inquiry,will return you immediately.
