ISO7093 Titanium Plain Washers-Large Series-Product Grade A's advantanges as below:
Increase the contact area between the screw and the machine.
Eliminates damage to machine surfaces by spring washers when unscrewing.In simple terms, the flat washer in the fastening of fasteners mainly has the above five functions of decompression, increased friction, sealing, shock absorption, and fixation.
Our business mission is to make high quality titanium fasteners conform to GB,DIN,ASME,ANSI,ISO,UNI,JIS and other industrial standards titanium and titanium alloy fasteners,as well as non-standard,cnc parts in titanium fasteners.Each fastener is tracked through strict management methods to ensure product quality.

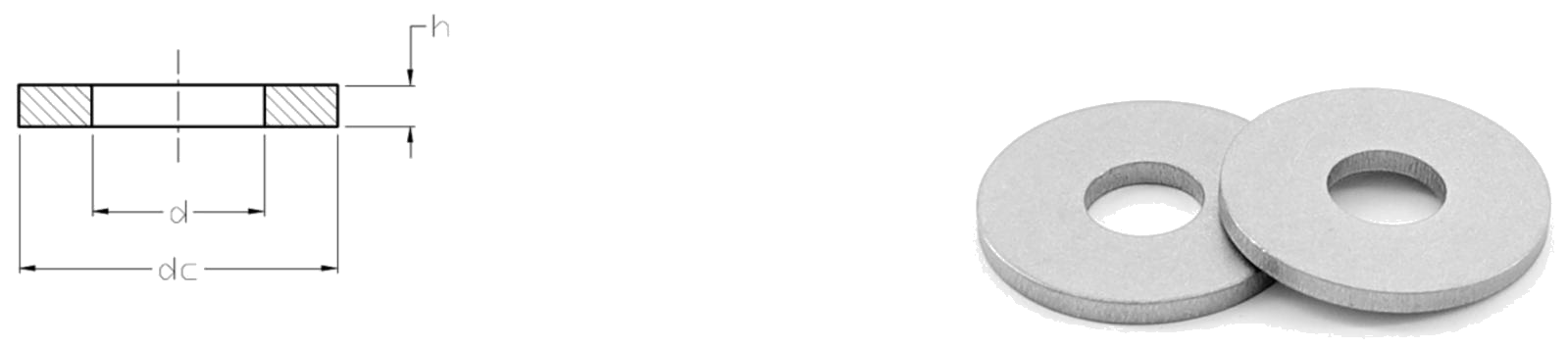

The dimension and drawing of ISO 7093 Titanium Plain Washers-Large Series-Product Grade A as below:
SPEC (d) | d | dc | h | ||||
min=DN | max | max=DN | min | DN | max | min | |
3 | 3.2 | 3.38 | 9 | 8.64 | 0.8 | 0.9 | 0.7 |
（3.5） | 3.7 | 3.88 | 11 | 10.57 | 0.8 | 0.9 | 0.7 |
4 | 4.3 | 4.48 | 12 | 11.57 | 1 | 1.1 | 0.9 |
5 | 5.3 | 5.48 | 15 | 14.57 | 1 | 1.1 | 0.9 |
6 | 6.4 | 6.62 | 18 | 17.57 | 1.6 | 1.8 | 1.4 |
8 | 8.4 | 8.62 | 24 | 23.48 | 2 | 2.2 | 1.8 |
10 | 10.5 | 10.77 | 30 | 29.48 | 2.5 | 2.7 | 2.3 |
12 | 13 | 13.27 | 37 | 36.38 | 3 | 3.3 | 2.7 |
（14） | 15 | 15.27 | 44 | 43.38 | 3 | 3.3 | 2.7 |
16 | 17 | 17.27 | 50 | 49.38 | 3 | 3.3 | 2.7 |
（18） | 19 | 19.33 | 56 | 55.26 | 4 | 4.3 | 3.7 |
20 | 21 | 21.33 | 60 | 59.26 | 4 | 4.3 | 3.7 |
（22） | 23 | 23.52 | 66 | 64.8 | 5 | 5.6 | 4.4 |
24 | 25 | 25.52 | 72 | 70.8 | 5 | 5.6 | 4.4 |
（27） | 30 | 30.52 | 85 | 83.6 | 6 | 6.6 | 5.4 |
30 | 33 | 33.62 | 92 | 90.6 | 6 | 6.6 | 5.4 |
（33） | 36 | 36.62 | 105 | 103.6 | 6 | 6.6 | 5.4 |
36 | 39 | 39.62 | 110 | 108.6 | 8 | 9 | 7 |
As one of the Audited Titanium fasteners supplier by SGS,BV,please contact us free to buy Titanium bolts,titanium screws,titanium washers and titanium nuts from us.
We will supply you one stop service in Titanium products,not only for titanium fasteners,also Titanium rod,titanium bars,titanium pipe and titanium flange,titanium elbow and ti pipe fittings,Ti wire,titanium wire rope,Ti Shackles etc.
Welcome contact us for ISO 7093 Titanium Plain Washers-Large Series-Product Grade A,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and order.
