1.6-64mm
RuiYang
810890

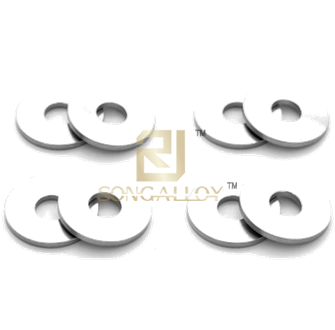

ISO 7089 Titanium Plain Washers-Product Grade A are usually thin pieces of various shapes used to reduce friction, prevent leakage, isolate, prevent loosening, or distribute pressure. Such components are found in many materials and structures.
Information of ISO 7089 Titanium Plain Washers-Product Grade A dimensions:
d | d | dc | h | ||||
min=DN | max | max=DN | min | DN | max | min | |
1.6 | 1.7 | 1.84 | 4 | 3.7 | 0.3 | 0.35 | 0.25 |
2 | 2.2 | 2.34 | 5 | 4.7 | 0.3 | 0.35 | 0.25 |
2.5 | 2.7 | 2.84 | 6 | 5.7 | 0.5 | 0.55 | 0.45 |
3 | 3.2 | 3.38 | 7 | 6.64 | 0.5 | 0.55 | 0.45 |
（3.5） | 3.7 | 3.88 | 8 | 7.64 | 0.5 | 0.55 | 0.45 |
4 | 4.3 | 4.48 | 9 | 8.64 | 0.8 | 0.9 | 0.7 |
5 | 5.3 | 5.48 | 10 | 9.64 | 1 | 1.1 | 0.9 |
6 | 6.4 | 6.62 | 12 | 11.57 | 1.6 | 1.8 | 1.4 |
8 | 8.4 | 8.62 | 16 | 15.57 | 1.6 | 1.8 | 1.4 |
10 | 10.5 | 10.77 | 20 | 19.48 | 2 | 2.2 | 1.8 |
12 | 13 | 13.27 | 24 | 23.48 | 2.5 | 2.7 | 2.3 |
（14） | 15 | 15.27 | 28 | 27.48 | 2.5 | 2.7 | 2.3 |
16 | 17 | 17.27 | 30 | 29.48 | 3 | 3.3 | 2.7 |
（18） | 19 | 19.33 | 34 | 33.38 | 3 | 3.3 | 2.7 |
20 | 21 | 21.33 | 37 | 36.38 | 3 | 3.3 | 2.7 |
（22） | 23 | 23.33 | 39 | 38.38 | 3 | 3.3 | 2.7 |
24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 |
（27） | 28 | 28.33 | 50 | 49.38 | 4 | 4.3 | 3.7 |
30 | 31 | 31.39 | 56 | 55.26 | 4 | 4.3 | 3.7 |
（33） | 34 | 34.62 | 60 | 58.8 | 5 | 5.6 | 4.4 |
36 | 37 | 37.62 | 66 | 64.8 | 5 | 5.6 | 4.4 |
（39） | 42 | 42.62 | 72 | 70.8 | 6 | 6.6 | 5.4 |
42 | 45 | 45.62 | 78 | 76.8 | 8 | 9 | 7 |
（45） | 48 | 48.62 | 85 | 83.6 | 8 | 9 | 7 |
48 | 52 | 52.74 | 92 | 90.6 | 8 | 9 | 7 |
（52） | 56 | 56.74 | 98 | 96.6 | 8 | 9 | 7 |
56 | 62 | 62.74 | 105 | 103.6 | 10 | 11 | 9 |
（60） | 66 | 66.74 | 110 | 108.6 | 10 | 11 | 9 |
64 | 70 | 70.74 | 115 | 113.6 | 10 | 11 | 9 |
All our Titanium washers products we make sure good quality and everything we do try to meet our customer satisfaction 100%.
Welcome contact us for ISO 7089 Titanium Plain Washers-Product Grade A and related Titanium bolts nuts,special made by titanium sheets washers also supply,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and order.
