ISO 7045 Titanium Cross Recessed Pan Head Screws-Product GradeA compared with the slotted shape,because the contact area between the screwdriver and the groove is relatively large, it is relatively stable.It is more accurate to install with cross recessed screws than to install with slotted screws.
ISO7045 Titanium screws Mainly used for railway and highway bridges,Titanium boiler and Titanium structures, industrial plants,high-rise civil buildings,hoisting machinery and steel structures with high requirements for friction type.

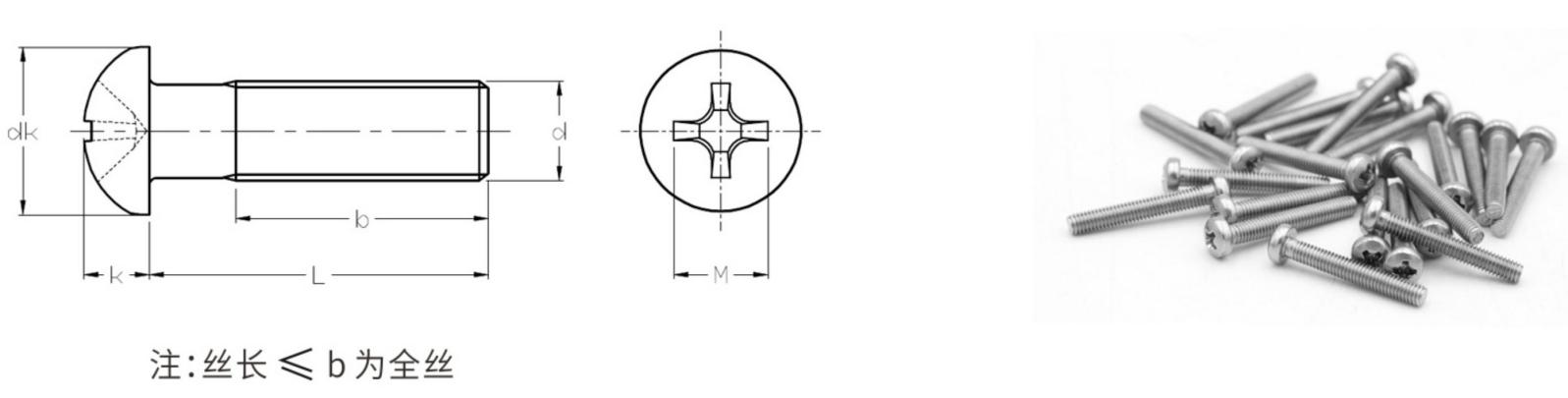

ISO 7045 Titanium Cross Recessed Pan Head Screws-Product GradeA detailed drawings and sizes as below:
d | M1.6 | M2 | M2.5 | M3 | （M3.5） | M4 | M5 | M6 | M8 | M10 | ||
P | Pitch | 0.35 | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | |
a | max | 0.7 | 0.8 | 0.9 | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.5 | 3 | |
b | min | 25 | 25 | 25 | 25 | 38 | 38 | 38 | 38 | 38 | 38 | |
dk | max=DN | 3.2 | 4.0 | 5.0 | 5.6 | 7.00 | 8.00 | 9.50 | 12.00 | 16.00 | 20.00 | |
min | 2.9 | 3.7 | 4.7 | 5.3 | 6.64 | 7.64 | 9.14 | 11.57 | 15.57 | 19.48 | ||
k | max=DN | 1.30 | 1.60 | 2.10 | 2.40 | 2.60 | 3.10 | 3.70 | 4.6 | 6.0 | 7.50 | |
min | 1.16 | 1.46 | 1.96 | 2.26 | 2.46 | 2.92 | 3.52 | 4.3 | 5.7 | 7.14 | ||
x | max | 0.9 | 1 | 1.1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3.2 | 3.8 | |
slot number | 0 | 0 | 1 | 1 | 2 | 2 | 2 | 3 | 4 | 4 | ||
M1 | HType | refer | 1.7 | 1.9 | 2.7 | 3 | 3.9 | 4.4 | 4.9 | 6.9 | 9 | 10.1 |
depth | Htype | max | 0.95 | 1.2 | 1.55 | 1.8 | 1.9 | 2.4 | 2.9 | 3.6 | 4.6 | 5.8 |
depth | min | 0.7 | 0.9 | 1.15 | 1.4 | 1.4 | 1.9 | 2.4 | 3.1 | 4 | 5.2 | |
M2 | Ztype | refer | 1.6 | 2.1 | 2.6 | 2.8 | 3.9 | 4.3 | 4.7 | 6.7 | 8.8 | 9.9 |
depth | Ztype | max | 0.9 | 1.42 | 1.5 | 1.75 | 1.93 | 2.34 | 2.74 | 3.46 | 4.5 | 5.69 |
depth | min | 0.65 | 1.17 | 1.25 | 1.5 | 1.48 | 1.89 | 2.29 | 3.03 | 4.05 | 5.24 | |
We are an audited fasteners supplier by SGS and BV,specialize in this field for many years with own professional factory could do soonest delivery with good quality and pretty competitive price.
Welcome contact us for titanium machine screws and ISO 7045 Titanium Cross Recessed Pan Head Screws-Product GradeA ti fasteners,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and orders.
