M5-M20
RuiYang
810890

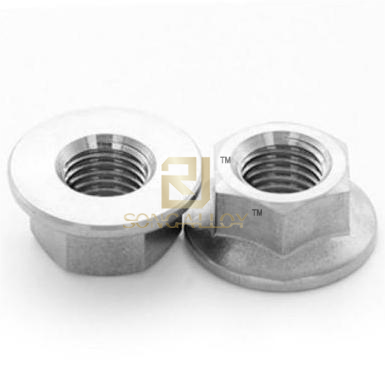

ISO4161 Titanium Hexagon Flange Nuts similar to GB/T6177 widely used in highway and railway bridges,including industrial and civil construction,cranes, excavators and other heavy machinery.Titanium nuts GB6177 can withstand higher preload and has better anti-loosening performance.
We have professional factory could guarantee the soonest delivery and factory price,Large quantity could have best price for your checking and enlarge the market
our production in titanium fasteners and alloyed titanium fasteners including the standards of GB,DIN,ASME/ANSI,ISO,UNI,JIS and other industrial standards of ti fasteners,as well as non-standard titanium and titanium alloy fasteners.
Our ISO 4161 Titanium Hexagon Flange Nuts sizes and tech Drawing in details as below:
d | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | M20 | |
P | Pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 |
c | min | 1 | 1.1 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3 |
da | max | 5.75 | 6.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 21.6 |
min | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | |
dc | max | 11.8 | 14.2 | 17.9 | 21.8 | 26 | 29.9 | 34.5 | 42.8 |
dw | min | 9.8 | 12.2 | 15.8 | 19.6 | 23.8 | 27.6 | 31.9 | 39.9 |
e | min | 8.79 | 11.05 | 14.38 | 16.64 | 20.03 | 23.36 | 26.75 | 32.95 |
m | max | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
min | 4.7 | 5.7 | 7.64 | 9.64 | 11.57 | 13.3 | 15.3 | 18.7 | |
mw | min | 2.5 | 3.1 | 4.6 | 5.6 | 6.8 | 7.7 | 8.9 | 10.7 |
s | max | 8 | 10 | 13 | 15 | 18 | 21 | 24 | 30 |
min | 7.78 | 9.78 | 12.73 | 14.73 | 17.73 | 20.67 | 23.67 | 29.16 | |
r | max | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.9 | 1 | 1.2 |
We have our professional factory could best to guarantee the ISO4161 Hexagon Flange Nuts quality and lead time,we are an audited supplier by SGS,BV,free to buy Titanium bolts and nuts from us all types.
When you buy ISO4161 Titanium Hexagon Flange Nuts from China,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and order with One stop service for titanium fasteners here.
ISO4161 Titanium Hexagon Flange Nuts similar to GB/T6177 widely used in highway and railway bridges,including industrial and civil construction,cranes, excavators and other heavy machinery.Titanium nuts GB6177 can withstand higher preload and has better anti-loosening performance.
We have professional factory could guarantee the soonest delivery and factory price,Large quantity could have best price for your checking and enlarge the market
our production in titanium fasteners and alloyed titanium fasteners including the standards of GB,DIN,ASME/ANSI,ISO,UNI,JIS and other industrial standards of ti fasteners,as well as non-standard titanium and titanium alloy fasteners.
Our ISO 4161 Titanium Hexagon Flange Nuts sizes and tech Drawing in details as below:
d | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | M20 | |
P | Pitch | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 |
c | min | 1 | 1.1 | 1.2 | 1.5 | 1.8 | 2.1 | 2.4 | 3 |
da | max | 5.75 | 6.75 | 8.75 | 10.8 | 13 | 15.1 | 17.3 | 21.6 |
min | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | |
dc | max | 11.8 | 14.2 | 17.9 | 21.8 | 26 | 29.9 | 34.5 | 42.8 |
dw | min | 9.8 | 12.2 | 15.8 | 19.6 | 23.8 | 27.6 | 31.9 | 39.9 |
e | min | 8.79 | 11.05 | 14.38 | 16.64 | 20.03 | 23.36 | 26.75 | 32.95 |
m | max | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
min | 4.7 | 5.7 | 7.64 | 9.64 | 11.57 | 13.3 | 15.3 | 18.7 | |
mw | min | 2.5 | 3.1 | 4.6 | 5.6 | 6.8 | 7.7 | 8.9 | 10.7 |
s | max | 8 | 10 | 13 | 15 | 18 | 21 | 24 | 30 |
min | 7.78 | 9.78 | 12.73 | 14.73 | 17.73 | 20.67 | 23.67 | 29.16 | |
r | max | 0.3 | 0.4 | 0.5 | 0.6 | 0.7 | 0.9 | 1 | 1.2 |
We have our professional factory could best to guarantee the ISO4161 Hexagon Flange Nuts quality and lead time,we are an audited supplier by SGS,BV,free to buy Titanium bolts and nuts from us all types.
When you buy ISO4161 Titanium Hexagon Flange Nuts from China,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and order with One stop service for titanium fasteners here.
