M2-M10
RuiYang
810890
ISO 14583 Titanium Hexalobular Socket Pan Head Screws similar to GB/T 2672,hexalobular socket pan head screws are more secure in installation,and are not easy to loosen and slip.
When the tool is in contact with the groove surface,the wear of the screw head and the surface coating can be effectively reduced, and the loss of the tool can be reduced at the same time, and the installed workpiece is beautiful and decorative.

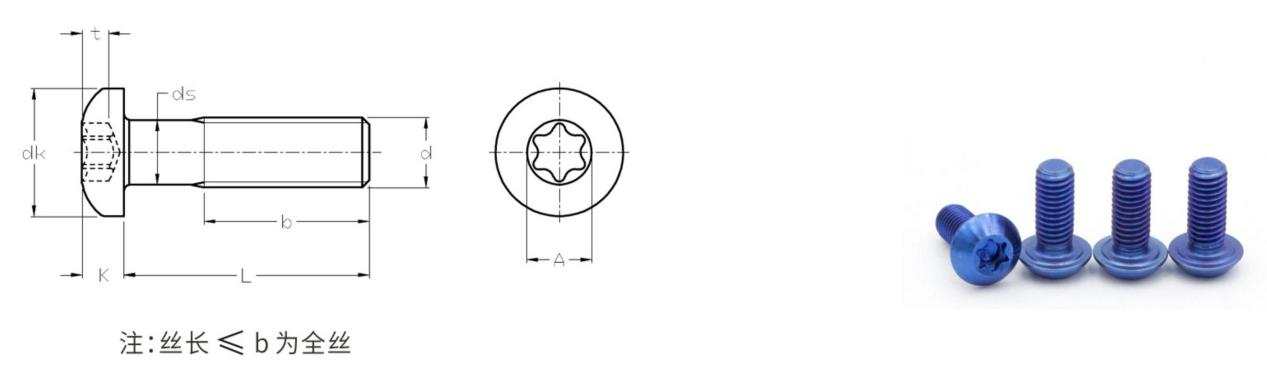

ISO 14583 Titanium Hexalobular Socket Pan Head Screws sizes as below,could be have different colored customed
d | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 | |
p | Pitch | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
a | max | 0.8 | 0.9 | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.5 | 3 |
b | min | 25 | 25 | 25 | 38 | 38 | 38 | 38 | 38 | 38 |
dk | max=DN | 4 | 5 | 5.6 | 7 | 8 | 9.5 | 12 | 16 | 20 |
min | 3.7 | 4.7 | 5.3 | 6.64 | 7.64 | 9.14 | 11.57 | 15.57 | 19.48 | |
k | max=DN | 1.6 | 2.1 | 2.4 | 2.6 | 3.1 | 3.7 | 4.6 | 6 | 7.5 |
min | 1.46 | 1.96 | 2.26 | 2.46 | 2.92 | 3.52 | 4.3 | 5.7 | 7.14 | |
x | max | 1 | 1.1 | 1.25 | 1.5 | 1.75 | 2 | 2.5 | 3.2 | 3.8 |
slot number | T6 | T8 | T10 | T15 | T20 | T25 | T30 | T45 | T50 | |
A | refer | 1.75 | 2.4 | 2.8 | 3.35 | 3.95 | 4.5 | 5.6 | 7.95 | 8.95 |
t | max | 0.77 | 1.04 | 1.27 | 1.33 | 1.66 | 1.91 | 2.42 | 3.18 | 4.02 |
min | 0.63 | 0.91 | 1.01 | 1.07 | 1.27 | 1.52 | 2.02 | 2.79 | 3.62 | |
We are an audited fasteners supplier by SGS and BV,All our products we make sure good quality and everything we do try to meet our customer satisfaction 100%.
Welcome contact us to buy ISO 14583 titanium Hexalobular Socket Pan Head Screws with different colors in titanium screws and titanium alloy fasteners,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and orders.
