ISO14580 Titanium Hexalobular Socket Head Cap Screws in titanium allen screws is a relatively uncommon type of screw,according to the production process and materials,it is no different from other cross recessed screws, the only difference is that the Phillips socket and the installation tools used are different.
Our production in titanium fasteners and alloyed titanium fasteners including the GB,DIN,ASME/ANSI,ISO,UNI,JIS standards and other industrial fasteners,as well as special titanium and titanium alloy fasteners.

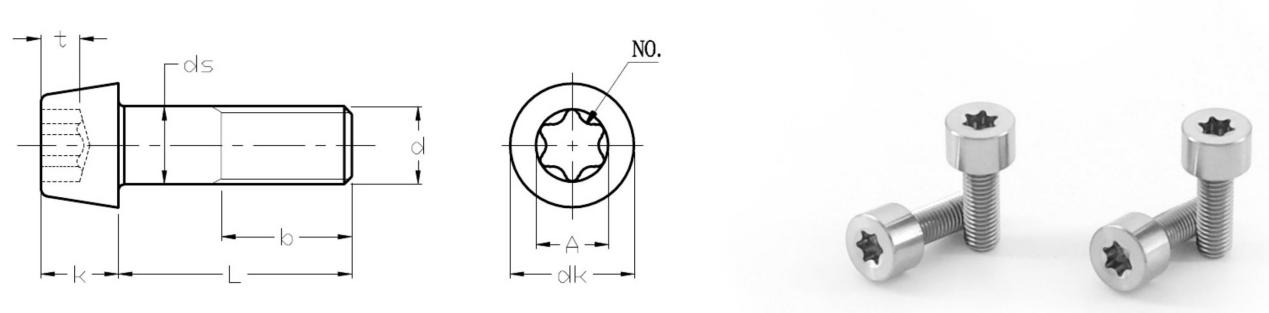

ISO14580 Titanium Hexalobular Socket Head Cap Screws Dimension and drawings shown as below:
d | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 | |
P | Pitch | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
a | max | 0.8 | 0.9 | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.5 | 3 |
b | min | 25 | 25 | 25 | 38 | 38 | 38 | 38 | 38 | 38 |
dk | max=DN | 3.8 | 4.5 | 5.5 | 6 | 7 | 8.5 | 10 | 13 | 16 |
min | 3.62 | 4.32 | 5.32 | 5.82 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | |
k | max=DN | 1.55 | 1.85 | 2.4 | 2.6 | 3.1 | 3.65 | 4.4 | 5.8 | 6.9 |
min | 1.41 | 1.71 | 2.26 | 2.46 | 2.92 | 3.47 | 4.1 | 5.5 | 6.54 | |
slot number | 6 | 8 | 10 | 15 | 20 | 25 | 30 | 45 | 50 | |
A | refer | 1.75 | 2.4 | 2.8 | 3.35 | 3.95 | 4.5 | 5.6 | 7.95 | 8.95 |
t | max | 0.84 | 0.91 | 1.27 | 1.33 | 1.66 | 1.91 | 2.29 | 3.05 | 3.43 |
min | 0.71 | 0.78 | 1.01 | 1.07 | 1.27 | 1.52 | 1.9 | 2.66 | 3.04 | |
Welcome contact us for ISO 14580 Titanium Hexalobular Socket Head Cap Screws in titanium cap screws and titanium alloy fasteners,please mail us info@topqualityalloy.com with necessary information with material,sizes and quantity for inquiry and order.
ISO14580 Titanium Hexalobular Socket Head Cap Screws in titanium allen screws is a relatively uncommon type of screw,according to the production process and materials,it is no different from other cross recessed screws, the only difference is that the Phillips socket and the installation tools used are different.
Our production in titanium fasteners and alloyed titanium fasteners including the GB,DIN,ASME/ANSI,ISO,UNI,JIS standards and other industrial fasteners,as well as special titanium and titanium alloy fasteners.
ISO14580 Titanium Hexalobular Socket Head Cap Screws Dimension and drawings shown as below:
d | M2 | M2.5 | M3 | M3.5 | M4 | M5 | M6 | M8 | M10 | |
P | Pitch | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
a | max | 0.8 | 0.9 | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.5 | 3 |
b | min | 25 | 25 | 25 | 38 | 38 | 38 | 38 | 38 | 38 |
dk | max=DN | 3.8 | 4.5 | 5.5 | 6 | 7 | 8.5 | 10 | 13 | 16 |
min | 3.62 | 4.32 | 5.32 | 5.82 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | |
k | max=DN | 1.55 | 1.85 | 2.4 | 2.6 | 3.1 | 3.65 | 4.4 | 5.8 | 6.9 |
min | 1.41 | 1.71 | 2.26 | 2.46 | 2.92 | 3.47 | 4.1 | 5.5 | 6.54 | |
slot number | 6 | 8 | 10 | 15 | 20 | 25 | 30 | 45 | 50 | |
A | refer | 1.75 | 2.4 | 2.8 | 3.35 | 3.95 | 4.5 | 5.6 | 7.95 | 8.95 |
t | max | 0.84 | 0.91 | 1.27 | 1.33 | 1.66 | 1.91 | 2.29 | 3.05 | 3.43 |
min | 0.71 | 0.78 | 1.01 | 1.07 | 1.27 | 1.52 | 1.9 | 2.66 | 3.04 | |
Welcome contact us for ISO 14580 Titanium Hexalobular Socket Head Cap Screws in titanium cap screws and titanium alloy fasteners,please mail us info@topqualityalloy.com with necessary information with material,sizes and quantity for inquiry and order.
