M3-M20
RuiYang
810890
ISO10642 Titanium Hexagon Socket Countersunk Head Screws are often used in Titanium machinery,ISO 10642 Ti screws mainly have the advantages of easy fastening,disassembly,and not easy to slip angle.Ti Countersunk head socket head cap bolts are mostly used in places where the surface of the part is required to be flat or smooth without blocking things, and most of them are countersunk head bolts, which are embedded inside the parts.

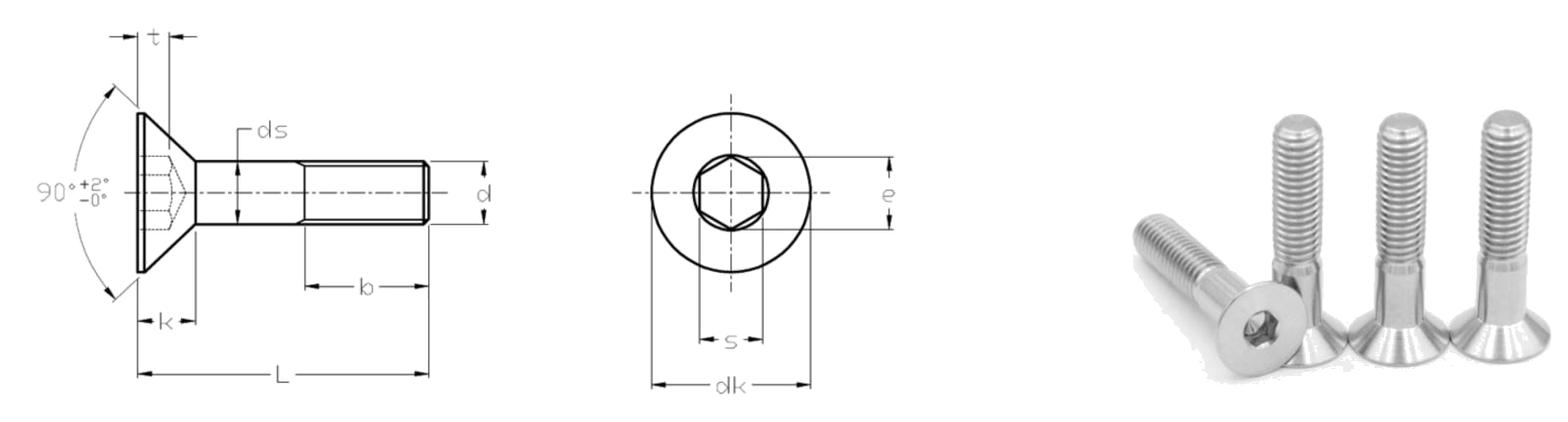

ISO10642 Titanium Hexagon Socket Countersunk Head Screws dimensions,drawing and sizes as below in below:
d | M3 | M4 | M5 | M6 | M8 | M10 | M12 | （M14） | M16 | M20 | ||
p | Pitch | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | |
b | reference value | 18 | 20 | 22 | 24 | 28 | 32 | 36 | 40 | 44 | 52 | |
dk | theoretical value | max | 6.72 | 8.96 | 11.20 | 13.44 | 17.92 | 22.40 | 26.88 | 30.80 | 33.60 | 40.32 |
actual value | min | 5.54 | 7.53 | 9.43 | 11.34 | 15.24 | 19.22 | 23.12 | 26.52 | 29.01 | 36.05 | |
ds | max | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 | |
min | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 19.67 | ||
e | min | 2.303 | 2.873 | 3.443 | 4.583 | 5.723 | 6.863 | 9.149 | 11.429 | 11.429 | 13.716 | |
k | max | 1.86 | 2.48 | 3.1 | 3.72 | 4.96 | 6.2 | 7.44 | 8.4 | 8.8 | 10.16 | |
s | DN | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 10 | 12 | |
max | 2.080 | 2.58 | 3.08 | 4.095 | 5.140 | 6.140 | 8.175 | 10.175 | 10.175 | 12.212 | ||
min | 2.020 | 2.52 | 3.020 | 4.020 | 5.020 | 6.020 | 8.025 | 10.025 | 10.025 | 12.032 | ||
t | min | 1.1 | 1.5 | 1.9 | 2.2 | 3 | 3.6 | 4.3 | 4.5 | 4.8 | 5.6 | |
Min tensile load（N）-Grade 8.8 | 3220 | 5620 | 9080 | 12900 | 23400 | 37100 | 53900 | 73600 | 100000 | 162000 | ||
Min tensile load（N）-Grade 10.9 | 4180 | 7300 | 11800 | 16700 | 30500 | 48200 | 70200 | 96000 | 130000 | 204000 | ||
Min tensile load（N）-Grade 12.9 | 4910 | 8560 | 13800 | 19600 | 35700 | 56600 | 82400 | 112000 | 154000 | 239000 | ||
Welcome contact us to buy ISO10642 Titanium Hexagon Socket Countersunk Head Screws and other titanium screws,titanium alloy countersunk screws with one stop service.
