M2-M10
RuiYang
810890

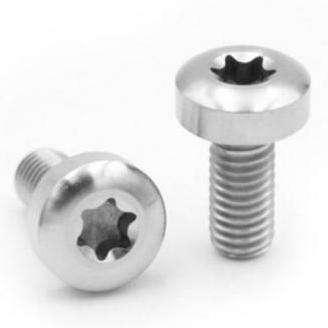

GB/T2671.1 Titanium Hexalobular Socket Thin Head Cap Screws is a relatively uncommon type of screw,according to the production process and materials, it is no different from other cross recessed screws, the only difference is that the Phillips socket and the installation tools used are different.
We produce GB,DIN,ASME/ANSI,ISO,UNI,JIS,and other industrial standards titanium and titanium alloy fasteners,as well as non-standard titanium and titanium alloy fasteners.

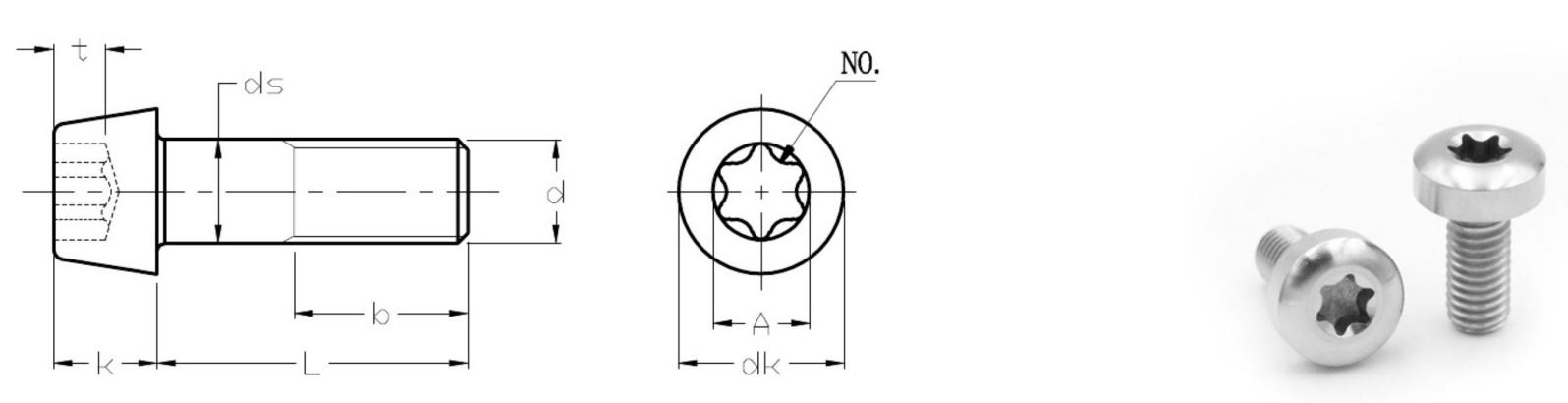

GB/T2671.1 Titanium and titanium alloy Hexalobular Socket Thin Head Cap Screws dimensions as below:
d | M2 | M2.5 | M3 | （M3.5） | M4 | M5 | M6 | M8 | M10 | |
p | pitch | 0.4 | 0.45 | 0.5 | 0.6 | 0.7 | 0.8 | 1 | 1.25 | 1.5 |
b | length | 25 | 25 | 25 | 38 | 38 | 38 | 38 | 38 | 38 |
dk | max | 3.80 | 4.50 | 5.50 | 6.00 | 7.00 | 8.50 | 10.00 | 13.00 | 16.00 |
min | 3.62 | 4.32 | 5.32 | 5.82 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | |
k | max | 1.55 | 1.85 | 2.40 | 2.60 | 3.10 | 3.65 | 4.40 | 5.80 | 6.90 |
min | 1.41 | 1.71 | 2.26 | 2.46 | 2.92 | 3.47 | 4.10 | 5.50 | 6.54 | |
slot number | T6 | T8 | T10 | T15 | T20 | T25 | T30 | T45 | T50 | |
A | refer | 1.75 | 2.4 | 2.8 | 3.35 | 3.95 | 4.5 | 5.6 | 7.95 | 8.95 |
t | max | 0.84 | 0.91 | 1.27 | 1.33 | 1.66 | 1.91 | 2.29 | 3.05 | 3.43 |
min | 0.71 | 0.78 | 1.01 | 1.07 | 1.27 | 1.52 | 1.90 | 2.66 | 3.04 | |
Where to buy Hexalobular Socket Thin Head Cap Screws Gb2671.1?Please contact us due to the reasons:
1.With professional factory best guarantee the quality and lead time
2.Audited supplier by SGS,BV,free to buy from us
3.We could supply you one stop service in Titanium products,not only for titanium fasteners,also Titanium rod,titanium pipe and flange,pipe fittings,Ti wire rope,Ti Shackles etc
When you buy Titanium Hexalobular Socket Thin Head Cap Screws Gb2671.1 in Titanium screws,bolts and nuts,just mail us info@topqualityalloy.com for Titanium Screws inquiry
