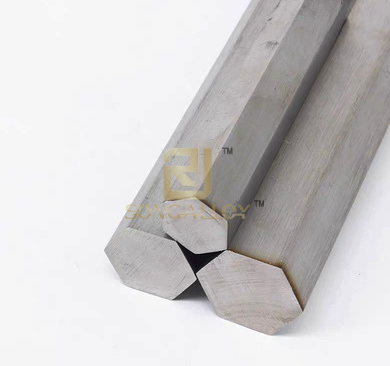

HEX STAINLESS STEEL BAR is hexagonal shape stainless steel bar,HEX STEEL BAR usually hot extrusion hex shape then annealed and cold drawn to get the precision sizes,bright surface and polished.
Stainless steel type Grade:
| ASTM201,201+Cu,202,204+Cu,205,301,303,302,304,304L,305,308,308L,309,309L, 310,310S,316,316L, 316Ti,316LN,317,317L, 321,329,347, ,409,410,416,420,430,430F,431,446, 630,631,2205,S31803, s32750 or customed
|
Manufacture Standard：
| (ASTMA276-96)(ASTM582) (ASTM564) (GB/T4226-84) (GB1200-93) (GB/T4240-93) (GB/T4232-93) (ASTMA484-96) SUS,JIS, EN, DIN, ETC
|
Sizes | 3-80mm flat to flat size |
Supplied conditions： | cold drawn bright finish & polishing
|
per meter weight（KG/Meter） | Flat to flat mm X flat to flat mmX0.0068（KG/Meter） |
GB/T705-89 （Tolerance for Hot Rolled Hexagonal Bars）
Size | （Rank） | ||
1(Group） | 2（Group） | 3（Group） | |
8～20 | ±0.25 | ±0.35 | ±0.40 |
21～30 | ±0.30 | ±0.40 | ±0.50 |
30～50 | ±0.40 | ±0.50 | ±0.60 |
50～70 | ±0.60 | ±0.70 | ±0.80 |
GB/T905-94（Tolerance for Cold Drawn Hexagonal Bars）
SS Hex bar Sizes | （Rank） | |||||
H8 | H9 | H10 | H11 | H12 | H13 | |
3 | 0~－0.014 | 0~－0.025 | 0~－0.040 | 0~－0.060 | 0~－0.10 | 0~－0.14 |
＞3～≤6 | 0~－0.018 | 0~－0.030 | 0~－0.048 | 0~－0.075 | 0~－0.12 | 0~－0.18 |
＞6～≤10 | 0~－0.022 | 0~－0.036 | 0~－0.058 | 0~－0.090 | 0~－0.15 | 0~－0.22 |
＞10～≤18 | 0~－0.027 | 0~－0.043 | 0~－0.070 | 0~－0.11 | 0~－0.018 | 0~－0.27 |
＞18～≤30 | 0~－0.033 | 0~－0.052 | 0~－0.084 | 0~－0.13 | 0~－0.21 | 0~－0.33 |
＞30～≤50 | 0~－0.039 | 0~－0.062 | 0~－0.10 | 0~－0.16 | 0~－0.25 | 0~－0.39 |
＞50～≤80 | 0~－0.046 | 0~－0.074 | 0~－0.12 | 0~－0.19 | 0~－0.30 | 0~－0.46 |
Features of Stainless Steel Hex Bar:
1). The appearance of cold-drawn,gloss is good, beautiful;
2). The addition of corrosion resistance, especially pitting resistance is excellent;
3). Excellent high temperature strength;
4). Excellent work-hardening (after processing weakly magnetic);
5). Non-magnetic state solution.
Where to buy hex stainless steel bar,hex stainless steel,please contact us for inquiry
