M5-M36
Ruiyang
731819

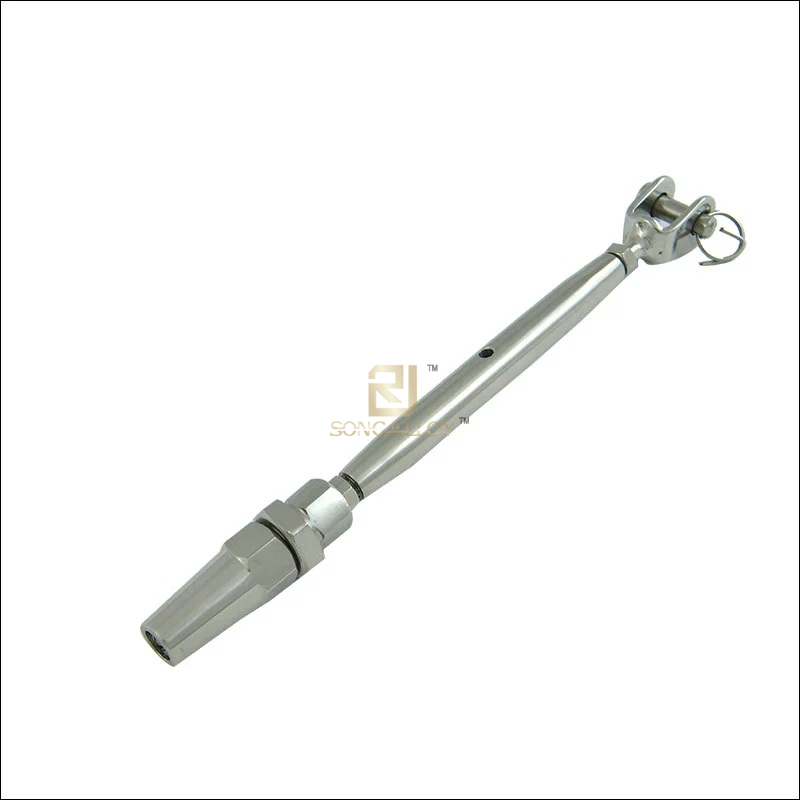

304 stainless steel Heavy Duty Stainless Steel Turnbuckle, provides excellent corrosion resistance,Color Silver Tone or polished,Thimble and crimping loop sleeve can help to keep cable from flatting around the eye which might weaken the cable.
EU CLOSED BODY TURNBUCKLE
SIZE | M | A | B | C | D | E | H |
M5 | KJ5 | 12.5 | 80 | 7.5 | 4.8 | 8.5 | 128 |
M6 | 6 | 15 | 92 | 9 | 5.8 | 10 | 145 |
M8 | 8 | 17 | 112 | 11 | 7.8 | 13.5 | 174 |
M10 | 10 | 20 | 120 | 12 | 9.8 | 17 | 204 |
M12 | 12 | 24 | 150 | 15 | 11.8 | 21 | 256 |
M14 | 14 | 28 | 170 | 18 | 13.8 | 23 | 290 |
M16 | 16 | 32.6 | 190 | 21 | 15.8 | 27 | 327 |
M20 | 20 | 37 | 210 | 24 | 19.8 | 33 | 380 |
M22 | 22 | -- | -- | -- | 21.8 | -- | -- |
M24 | 24 | -- | -- | -- | 23.8 | -- | -- |
M36 | 36 | 69 | 300 | 45 | 35 | -- | 584 |

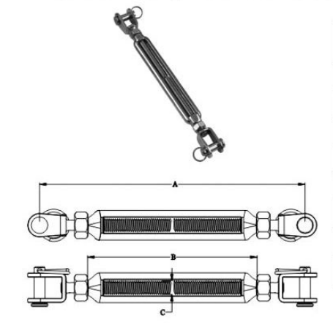

TURNBUCKLE,FRAME TYPE WITH NUT(JAW+JAW)
Turnbuckle Sizes | A mm | B mm | C mm | SWL kgs | BL kgs |
M5 | 125.0 | 71.00 | M5 | 188 | 750 |
M6 | 136.0 | 91.00 | M6 | 350 | 1400 |
M8 | 162.0 | 121.00 | M8 | 550 | 2200 |
M10 | 222.0 | 150.00 | M10 | 863 | 3450 |
M12 | 295.2 | 200.00 | M12 | 1250 | 5000 |
M14 | 345.0 | 225.00 | M14 | 1600 | 6400 |
M16 | 380.0 | 244.00 | M16 | 2000 | 8000 |
M20 | 465.0 | 295.00 | M20 | 2625 | 10500 |
Why use Heavy Duty Stainless Steel Turnbuckle?
The advantages of the Heavy Duty Stainless Steel Turnbuckle make your operations not only increase your use area, save your materials in the project, and make you to finish more project. In advantages of Heavy Duty Stainless Steel Turnbuckle quality, it is more durable, and more stronger If you need finish high-standard operation projects.
Heavy Duty Stainless Steel Turnbuckle Applicable Occasions:Garden wire trellis kit for climbing plants (rose ) supports, Romantic party, Hanging photo,clothes or any hanging needed ,Garden fence ,Deck cable railing and etc. perfect for outdoor gardens and indoors.
Easy installation:Each part is connected by thread,very easy to install and remove.
For clinbing plants (rose /grippe ...support)For outdoor hanging light stringFor decking stair railing on outside or in home Have more idea on your mind and enjoy your time
welcome contact us for Heavy Duty Stainless Steel Turnbuckle wire rope fittings and other related wire rope fittings hardware inquiry.
