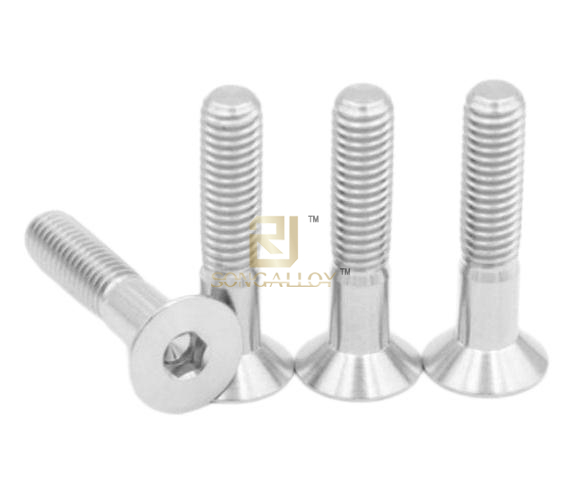

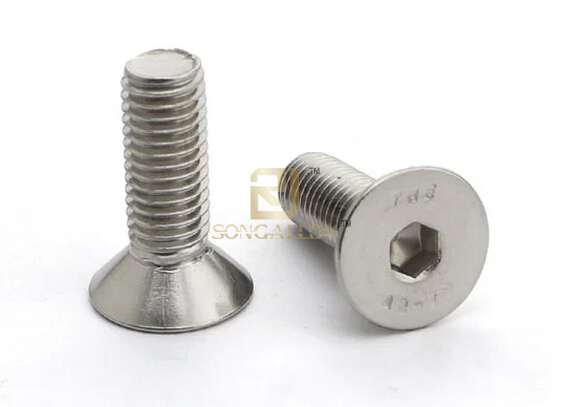

We are an audited supplier by SGS,BV professional supply tianium and tianium alloy fasteners,GB70.3-2008 Titanium Hexagon Socket Coutersunk Head Screws,related standard DIN7991 and ISO10642 titanium screws supplier.

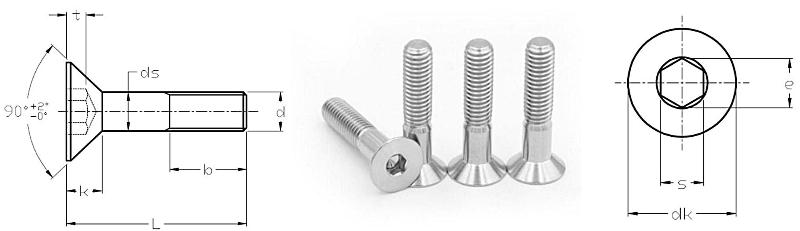

GB70.3 Titanium screws dimensions of Inside Hexagon Socket Coutersunk Head Screws detailed drawings and sizes as below in below:
thread specification d | M3 | M4 | M5 | M6 | M8 | M10 | M12 | (M14) | M16 | M20 | |
P | thread pitch | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 |
b | refer | 18 | 20 | 22 | 24 | 28 | 32 | 36 | 40 | 44 | 52 |
dk | max in theory | 6.72 | 8.96 | 11.20 | 13.44 | 17.92 | 22.40 | 26.88 | 30.8 | 33.60 | 40.32 |
min in actual | 5.54 | 7.53 | 9.43 | 11.34 | 15.24 | 19.22 | 23.12 | 26.52 | 29.01 | 36.05 | |
ds | max | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 16 | 20 |
min | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 19.67 | |
e① | min | 2.303 | 2.873 | 3.443 | 4.583 | 5.723 | 6.863 | 9.149 | 11.429 | 11.429 | 13.716 |
k | max | 1.86 | 2.48 | 3.1 | 3.72 | 4.96 | 6.2 | 7.44 | 8.4 | 8.8 | 10.16 |
s① | nominal | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 10 | 12 |
max | 2.080 | 2.58 | 3.080 | 4.095 | 5.140 | 6.140 | 8.175 | 10.175 | 10.175 | 12.212 | |
min | 2.020 | 2.52 | 3.020 | 4.020 | 5.020 | 6.020 | 8.025 | 10.025 | 10.025 | 12.032 | |
t | min | 1.1 | 1.5 | 1.9 | 2.2 | 3 | 3.6 | 4.3 | 4.5 | 4.8 | 5.6 |
min TS (N)② | 8.8 | 3220 | 5620 | 9080 | 12900 | 23400 | 37100 | 53900 | 73600 | 100000 | 162000 |
| 10.9 | 4180 | 7300 | 11800 | 16700 | 30500 | 48200 | 70200 | 96000 | 130000 | 204000 | |
12.9 | 4910 | 8506 | 13800 | 19600 | 35700 | 56600 | 82400 | 112000 | 154000 | 239000 | |
| Ti screws standard number: | GB/T70.3-2008 |
| titanium countersunk screws GB70.3 Sizes: | M3-M20 |
| GB70.3 Titanium screws Head style: | Countersunk |
GB70.3 Titanium Screw type: | Metric thread |
| gb70.3 Minimum order of each sizes | 500pcs if without stock each sizes |
| GB70.3 Titanium screws material | ta1,ta2,gr1,gr2,tc4,Gr5 and others |
| GB70.3 Titanium screws process | cold heading,cnc |
| Soonest Delivery: | within 30 days usually |
With our professional factory and workers,adding our quality management system,we could supply high quality GB,DIN,ASME,ANSI,ISO,UNI,JIS and other related industrial standards tianium bolts and nuts,tianium alloy fasteners,cnc parts and non-standard titanium screws according to your actual demand,as well as non-standard tianium and tianium alloy fasteners supplier in China,choose us is your right choice and welcome contact us for inquiry of GB70.3-2008 Titanium Hexagon Socket Coutersunk Head Screwsand order with one stop service.
