M1.6-M12
RuiYang
810890

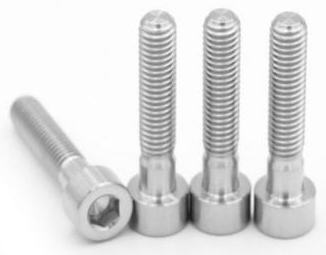

GB70.1 Titanium Hexagon Socket Head Cap Screws similar to the countersunk head screw, the nail head is embedded in the machine part, and the connection strength is high, but the screw must be installed and disassembled with an Allen wrench of the corresponding specification. Generally used in various machine tools and their accessories.

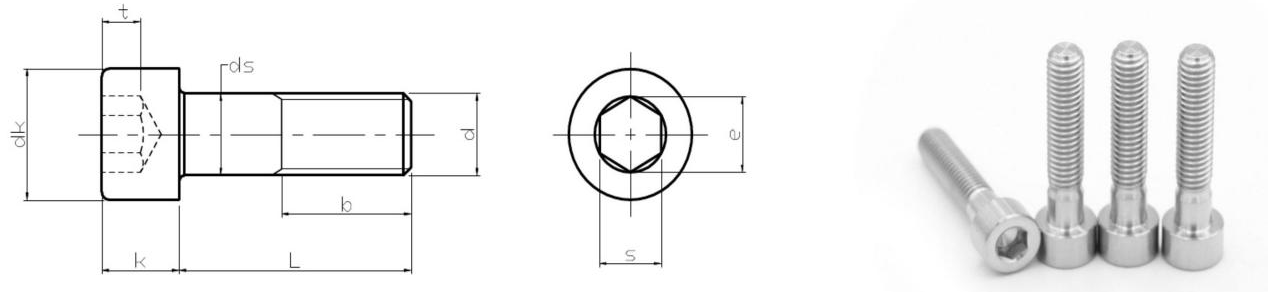

The information of GB70.1 Titanium Hexagon Socket Head Cap Screws as below:
d | M1.6 | M2 | M2.5 | M3 | M4 | M5 | M6 | M8 | M10 | M12 | M14 | M16 | M20 | M24 | M30 | M36 | |
p | 0.35 | 0.4 | 0.45 | 0.5 | 0.7 | 0.8 | 1 | 1.25 | 1.5 | 1.75 | 2 | 2 | 2.5 | 3 | 3.5 | 4 | |
b | 15 | 16 | 17 | 18 | 20 | 22 | 24 | 28 | 32 | 36 | 40 | 44 | 52 | 60 | 72 | 84 | |
dk | max | 3.00 | 3.80 | 4.50 | 5.50 | 7.00 | 8.50 | 10.00 | 13.00 | 16.00 | 18.00 | 21.00 | 24.00 | 30.00 | 36.00 | 45.00 | 54.00 |
3.14 | 3.98 | 4.68 | 5.68 | 7.22 | 8.72 | 10.22 | 13.27 | 16.27 | 18.27 | 21.33 | 24.33 | 30.33 | 36.39 | 45.39 | 54.46 | ||
min | 2.86 | 3.62 | 4.32 | 5.32 | 6.78 | 8.28 | 9.78 | 12.73 | 15.73 | 17.73 | 20.67 | 23.67 | 29.67 | 35.61 | 44.61 | 53.54 | |
max | 2 | 2.6 | 3.1 | 3.6 | 4.7 | 5.7 | 6.8 | 9.2 | 11.2 | 13.7 | 15.7 | 17.7 | 22.4 | 25.4 | 33.4 | 39.4 | |
ds | max | 1.60 | 2.00 | 2.5 | 3.00 | 4.00 | 5.00 | 6.00 | 8.00 | 10.00 | 12.00 | 14.00 | 1.00 | 20.00 | 24.00 | 30.00 | 36.00 |
min | 1.46 | 1.86 | 2.36 | 2.86 | 3.82 | 4.82 | 5.82 | 7.78 | 9.78 | 11.73 | 13.73 | 15.73 | 19.67 | 23.67 | 29.67 | 33.61 | |
e 3 4 min | 1.73 | 1.73 | 2.3 | 2.87 | 3.44 | 4.58 | 5.72 | 6.86 | 9.15 | 11.43 | 13.72 | 16 | 19.44 | 21.73 | 25.15 | 30.85 | |
Lfmax | 0.34 | 0.51 | 0.51 | 0.51 | 0.6 | 0.6 | 0.68 | 1.02 | 1.02 | 1.45 | 1.45 | 1.45 | 2.04 | 2.04 | 2.89 | 2.89 | |
K | max | 1.60 | 2.00 | 2.50 | 3.00 | 4.00 | 5.00 | 6.00 | 8.00 | 10.00 | 12.00 | 14.00 | 16.00 | 20.00 | 24.00 | 30.00 | 36.00 |
min | 1.46 | 1.86 | 2.36 | 2.86 | 3.82 | 4.82 | 5.7 | 7.64 | 9.64 | 11.57 | 13.57 | 15.57 | 19.48 | 23.48 | 29.48 | 35.38 | |
r min | 0.1 | 0.1 | 0.1 | 0.1 | 0.2 | 0.2 | 0.25 | 0.4 | 0.4 | 0.6 | 0.6 | 0.6 | 0.85 | 0.8 | 1 | 1 | |
s④ | DN | 1.5 | 1.5 | 2 | 2.5 | 3 | 4 | 5 | 6 | 8 | 10 | 12 | 14 | 17 | 19 | 22 | 27 |
max | 1.545 | 1.545 | 2.045 | 2.54 | 3.071 | 4.084 | 5.084 | 6.095 | 8.115 | 10.115 | 12.142 | 14.142 | 17.23 | 19.275 | 22.275 | 27.275 | |
min | 1.560 | 1.560 | 2.060 | 2.58 | 3.080 | 0.095 | 5.140 | 6.140 | 8.175 | 10.175 | 12.212 | 14.212 | |||||
t min | 0.7 | 1 | 1.1 | 1.3 | 2 | 2.5 | 3 | 4 | 5 | 6 | 7 | 8 | 10 | 12 | 15.5 | 9 | |
v min | 0.16 | 0.2 | 0.25 | 0.3 | 0.4 | 0.5 | 0.6 | 0.8 | 1 | 1.2 | 1.4 | 1.6 | 2 | 2.4 | 3 | 3.6 | |
dw min | 2.72 | 3.48 | 4.18 | 5.07 | 6.53 | 8.03 | 9.38 | 12.33 | 15.33 | 17.23 | 20.17 | 23.17 | 28.87 | 34.81 | 43.61 | 52.54 | |
w min | 0.55 | 0.65 | 0.85 | 1.15 | 1.4 | 1.9 | 2.3 | 3.3 | 4 | 4.8 | 5.8 | 6.8 | 8.6 | 10.4 | 13.1 | 15.3 | |
I | 2.5~16 | 3~20 | 4~25 | 5~30 | 6~40 | 8~50 | 10~60 | 12~80 | 16~100 | 20~120 | 25~140 | 25~160 | 30~200 | 40~200 | 45~200 | 55~200 | |
Welcome contact us for GB70.1 Titanium Hexagon Socket Head Cap Screws,When you find who supply Titanium hexagon screws near me,Hexagon Socket Head Cap Screws in stock,Please contact us for One stop service for titanium fasteners,please mail us info@topqualityalloy.com with necessary sizes and quantity for inquiry and order.
