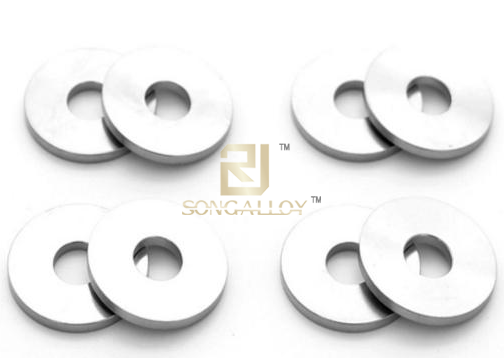

GB/T97.1 Titanium Plain Washers-Product Grade A are usually thin pieces of various shapes used to reduce friction, prevent leakage, isolate, prevent loosening, or distribute pressure. Such components are found in many materials and structures to perform a variety of similar functions. Restricted by the material and process of threaded fasteners, the bearing surface of fasteners such as bolts is not large, so in order to reduce the compressive stress of the bearing surface and protect the surface of the connected parts, washers are used.

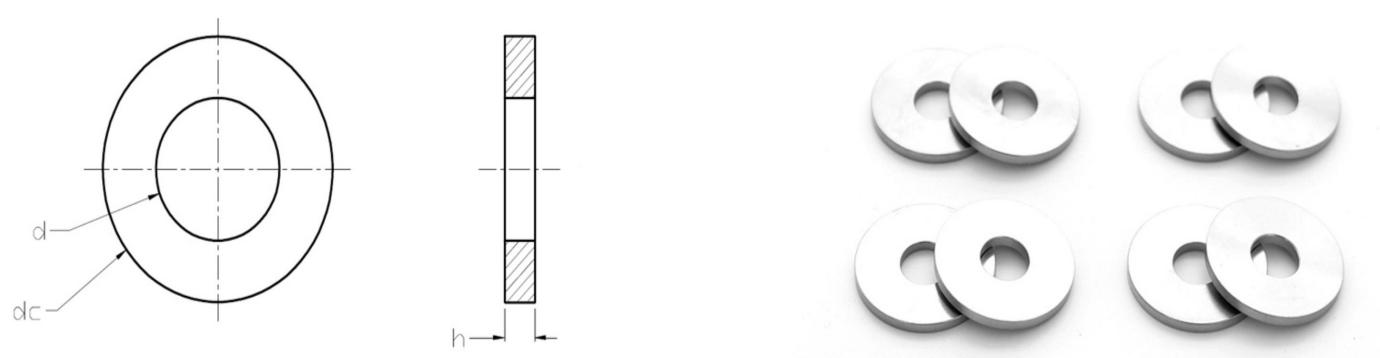

Supply GB/T97.1 Titanium Plain Washers-Product Grade A sizes and drawing details as below:
Specification | d | dc | h | ||||
min | max | max | min | DK | max | min | |
1.6 | 1.7 | 1.84 | 4 | 3.7 | 0.3 | 0.35 | 0.25 |
2 | 2.2 | 2.34 | 5 | 4.7 | 0.3 | 0.35 | 0.25 |
2.5 | 2.7 | 2.84 | 6 | 5.7 | 0.5 | 0.55 | 0.45 |
3 | 3.2 | 3.38 | 7 | 6.64 | 0.5 | 0.55 | 0.45 |
4 | 4.3 | 4.48 | 9 | 8.64 | 0.8 | 0.9 | 0.7 |
5 | 5.3 | 5.48 | 10 | 9.64 | 1 | 1.1 | 0.9 |
6 | 6.4 | 6.62 | 12 | 11.57 | 1.6 | 1.8 | 1.4 |
8 | 8.4 | 8.62 | 16 | 15.57 | 1.6 | 1.8 | 1.4 |
10 | 10.5 | 10.77 | 20 | 19.48 | 2 | 2.2 | 1.8 |
12 | 13 | 13.27 | 24 | 23.48 | 2.5 | 2.7 | 2.3 |
14 | 15 | 15.27 | 28 | 27.48 | 2.5 | 2.7 | 2.3 |
16 | 17 | 17.27 | 30 | 29.48 | 3 | 3.3 | 2.7 |
18 | 19 | 19.33 | 34 | 33.38 | 3 | 3.3 | 2.7 |
20 | 21 | 21.33 | 37 | 36.38 | 3 | 3.3 | 2.7 |
22 | 23 | 23.33 | 39 | 38.38 | 3 | 3.3 | 2.7 |
24 | 25 | 25.33 | 44 | 43.38 | 4 | 4.3 | 3.7 |
27 | 28 | 28.33 | 50 | 49.38 | 4 | 4.3 | 3.7 |
30 | 31 | 31.39 | 56 | 55.26 | 4 | 4.3 | 3.7 |
33 | 34 | 34.62 | 60 | 58.8 | 5 | 5.6 | 4.4 |
36 | 37 | 37.62 | 66 | 64.8 | 5 | 5.6 | 4.4 |
39 | 42 | 42.62 | 72 | 70.8 | 6 | 6.6 | 5.4 |
42 | 45 | 45.62 | 78 | 76.8 | 8 | 9 | 7 |
45 | 48 | 48.62 | 85 | 83.6 | 8 | 9 | 7 |
48 | 52 | 52.74 | 92 | 90.6 | 8 | 9 | 7 |
52 | 56 | 56.74 | 98 | 96.6 | 8 | 9 | 7 |
56 | 62 | 62.74 | 105 | 103.6 | 10 | 11 | 9 |
60 | 66 | 66.74 | 110 | 108.6 | 10 | 11 | 9 |
64 | 70 | 70.74 | 115 | 113.6 | 10 | 11 | 9 |
We will supply you one stop service in Titanium products,not only for titanium fasteners,also Titanium rod,titanium pipe and flange,pipe fittings,Ti wire rope,Ti Shackles and titanium sheets,laser cutting titanium sheets and cnc parts.
Welcome contact us for GB/T97.1 Titanium Plain Washers-Product Grade A inquiry and order.Ruiyang company could supply you one stop service in titanium fasteners,titanium bolts and nuts products,also stainless steel washers and ss fasteners for choice.Just mail to info@topqualityalloy.com for our cooperation.
