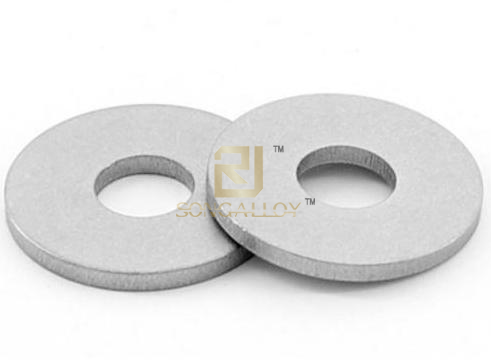

GB/T96.1 Titanium Plain Washers produce and supply with stock
Titanium washers and titanium alloy washers GB/T96.1 Plain Washers-Large Series-Product Grade A like DIN9021 washers are used to overcome the unevenness of the workpiece support surface and increase the stress area of the support surface, reduce friction, prevent leakage, isolate, prevent loosening or disperse pressure.
We produce GB,DIN,ASME/ANSI,ISO,UNI,JIS,and other industrial standards titanium and titanium alloy fasteners,as well as non-standard titanium and titanium alloy fasteners,One stop service here.

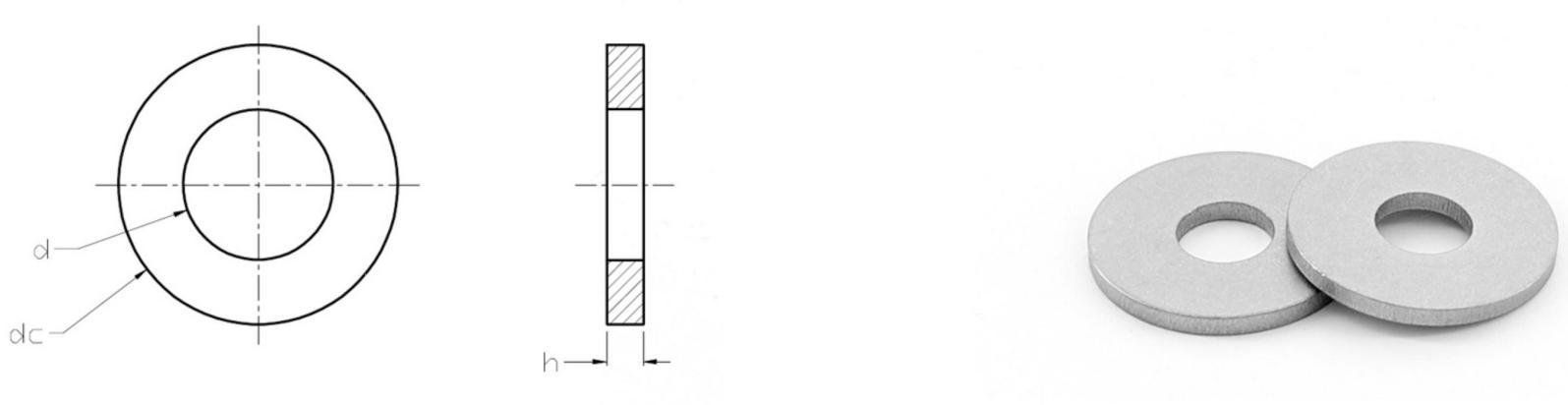

GB/T96.1 Titanium Plain Washers-Large Series-Product Grade A:sizes and drawings as below:
Specification | 3 | 3.5 | 4 | 5 | 6 | 8 | 10 | 12 | （14） | |
d | min=DK | 3.2 | 3.7 | 4.3 | 5.3 | 6.4 | 8.4 | 10.5 | 13 | 15 |
max | 3.38 | 3.88 | 4.48 | 5.48 | 6.62 | 8.62 | 10.77 | 13.27 | 15.27 | |
dc | max=DK | 9 | 11 | 12 | 15 | 18 | 24 | 30 | 37 | 44 |
min | 8.64 | 10.57 | 11.57 | 14.57 | 17.57 | 23.48 | 29.48 | 36.38 | 43.38 | |
h | DK | 0.8 | 0.8 | 1 | 1 | 1.6 | 2 | 2.5 | 3 | 3 |
max | 0.9 | 0.9 | 1.1 | 1.1 | 1.8 | 2.2 | 2.7 | 3.3 | 3.3 | |
min | 0.7 | 0.7 | 0.9 | 0.9 | 1.4 | 1.8 | 2.3 | 2.7 | 2.7 | |
Specification | 16 | 18 | 20 | 22 | 24 | 27 | 30 | 33 | 36 | |
d | min=DK | 17 | 19 | 21 | 23 | 25 | 30 | 33 | 36 | 39 |
max | 17.27 | 19.33 | 21.33 | 23.52 | 25.52 | 30.52 | 3.62 | 36.62 | 39.62 | |
dc | max=DK | 50 | 56 | 60 | 66 | 72 | 85 | 92 | 105 | 110 |
min | 49.38 | 55.26 | 59.26 | 64.8 | 70.8 | 83.6 | 90.6 | 103.6 | 108.6 | |
h | DK | 3 | 4 | 4 | 5 | 5 | 6 | 6 | 6 | 8 |
max | 3.3 | 4.3 | 4.3 | 5.6 | 5.6 | 6.6 | 6.6 | 6.6 | 9 | |
min | 2.7 | 3.7 | 3.7 | 4.4 | 4.4 | 5.4 | 5.4 | 5.4 | 7 | |
As long as you inform us the material,standard or sizes,quantity,we could check and offer you our best factory price.
Welcome contact us for GB/T96.1 Titanium Plain Washers-Large Series-Product Grade A inquiry and order.Ruiyang company could supply you one stop service in titanium fasteners,titanium bolts and nuts products,also stainless steel fasteners for your easier import from us.Just mail to info@topqualityalloy.com for our cooperation.
